3/4" Stainless Steel Pipe Fitting 90 Degree Bsp / Bspt / Npt Threaded Elbow
Price:
USD 0.90 dollars
MOQ:
10
Delivery Time:
40 days
Product Description
3/4" stainless steel 304 material 90 degree bsp, bspt, npt threaded elbow
Material: 304, 316 or customized.
Thread: BSP, BSPT or NPT.

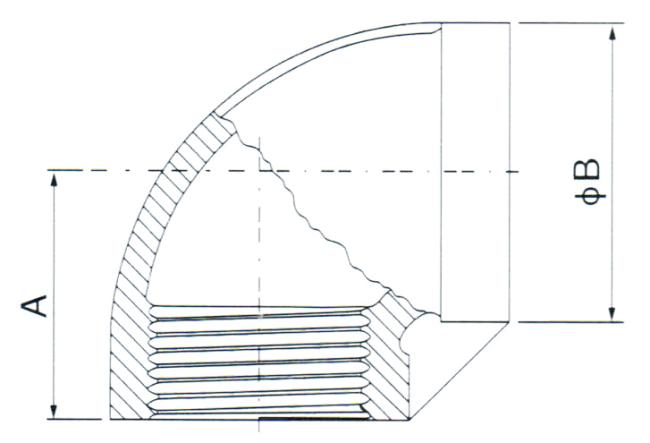

| size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| A | 19.0 | 19.7 | 23.0 | 28.0 | 32.8 | 35.5 | 44.7 | 48.0 | 57.0 | 68.6 | 75.5 | 86.5 |
| B | 15.0 | 19.8 | 23.0 | 26.0 | 32.0 | 40.0 | 49.0 | 55.0 | 68.7 | 87.0 | 95.0 | 123.0 |
 |
|
The difference between the bsp, bspt and npt thread type are as follows.
 |  |
| STAINLESS STEEL PIPE FITTINGS DETAILS | ||
| Material | High quality stainless steel AISI 304,316,304L,316L | |
| Standard | ANSI,DIN,JIS,BS | |
| Thread | NPT,BSP,BSPT,DIN2999 | |
| Size | 1/4",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6". | |
| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, | |
| Related products | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Carbon steel butt-welding fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Grooved fittings | 12. Sanitary fittings. | |
| Technics | Casting,Welding | |
| Connection | Male, Female | |
| Shape | Equal, Reducing | |
| Certificate | BSI, ISO9001 | |
| Applications | Suitable for Pipe lines connect of water, steam, air, gas, oil and so on. | |
| Buyer’s drawings or designs are available. | ||
| Package | 1. Cartons without pallets. | |
| 2. Cartons with pallets. | ||
| Or as buyer’s requirements. | ||
| Delivery detail | ||
| According to the quantities and specifications of each order. | ||
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
