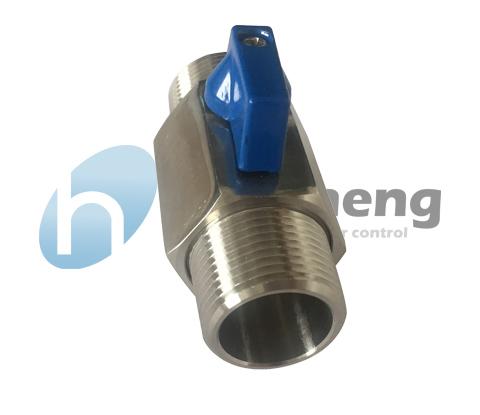

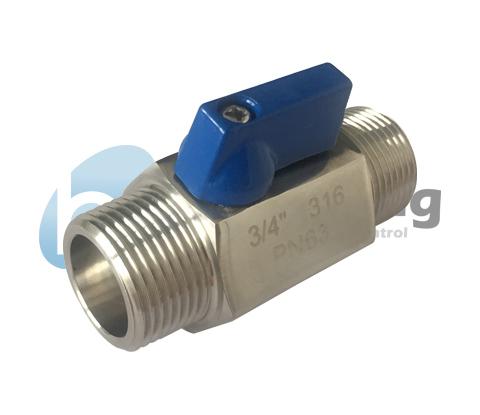

Stainless steel 304, 316 bsp, bspt, npt threaded mirror polished MINI ball valve
Price:
USD 3.85- 4.08 dollars
MOQ:
10
Delivery Time:
40 days
Product Description
1000 WOG Mini Ball Valve Npt / Bsp Threaded Blue / Red Handle Color
1, Material: 304 or 316 stainless steel.
2, Handle color: Black, Red, Blue.
3, Thread: BSPP, BSPT, NPT etc.
4, Working pressure: 6.3 Mpa/ 1000 PSI.
5, Surface finish: Mirror polished.
6, Weight: Heavy duty.
7, Media: Water, Oil, Gas.

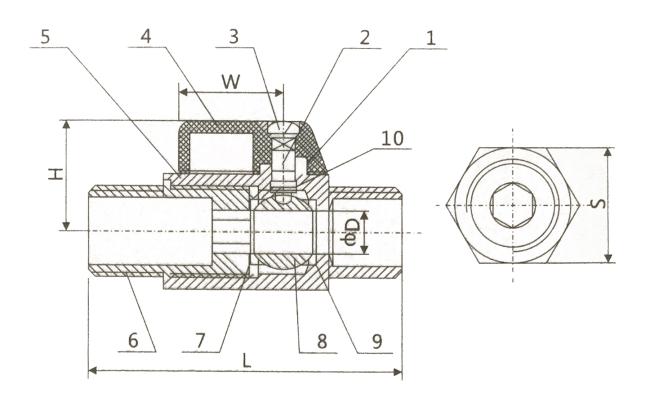

Material and specification
| Item | ITEM | Material |
| 1 | O-RING | viton |
| 2 | STEM | 304 |
| 3 | BOLT | 304 |
| 4 | LEVER | Aluminum alloy |
| 5 | BODY | CF8M |
| 6 |
CAP |
CF8M |
| 7 | BALL SEAT(A) | R-PTFE |
| 8 | BALL | CF8M |
| 9 | BALL SEAT(B) | R-PTFE |
| 10 | THRUST WASHER | PTFE |
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 8 | 8 | 9.2 | 12.5 | 15 |
| L | 50 | 50 | 58 | 70 | 83 |
| H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| S | 21 | 21 | 25 | 31 | 38 |
 |
|
