ATOP Blue Color Decorative Coating Multi-arc Ion PVD Vacuum Coating Machine

The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse

technique and magnetron sputtering technology, thinning the particles to improve the properties of the

film. It can coat on the surface of the metal as well as nonmetal.

It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary

ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.

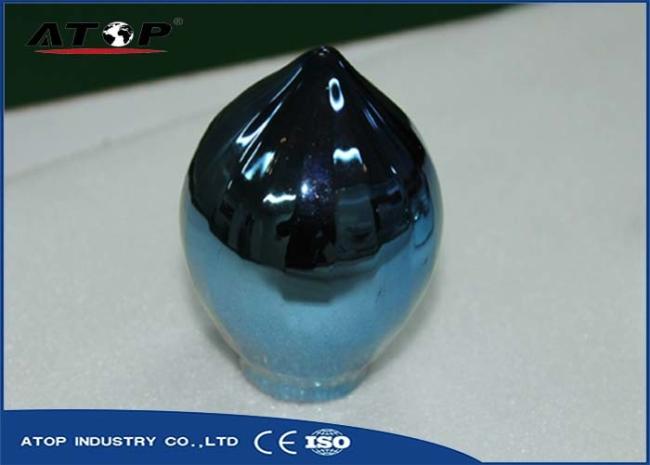

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose

gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering

technique can be plated the multilayer composite membrane and manufactured plated stainless steel,

aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,

CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and

its compounds film.

Vacuum coating machine is the most environmental and friendly surface treatment machine without waste

and harmful gas and liquid.

The specific configuration of coating machine can be designed according to process requirements of

coating products.

Vacuum coating machine make the metal deposition on surface of the product,make the it colorful,

beautiful,function Strong adhesion , good compactness, well repeatability and consistence of color.

Structure type:Vertical type or horizontal type

Chamber type:single door or double doors



1. It equipments cryogenic ion secondary source, some substrate without heating the material, It

can directly do the cold plating film at room temperature, save energy, increase productivity.


2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool

Coater coating applications require heating device, other applications do not need the device.


3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional

coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass

production.


4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the

cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom

ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.


5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode

and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It

also has the advantages that lon Beam Assisted Deposition.


6. Vacuum pumping system, electric control system and complete vacuum coating system can be

customized according to user requirements.
