#45 Steel Synchronous Motor SM5037 230VAC 10-/20rpm
Synchronous Motor -SM5037
This Small Synchronous Motor is provided with a stator winding wound around a stator core ,which with high reliability, high efficiency and can continuously work. It is widely used in automation industry,logistics, assembly line and etc.
Typical Application:
Auto-testing equipment ,Medical equipment,Textile machines,Heat exchanger,Cryogenic pump etc.
Features:
Low Noise,Quick respond,Low noise,Stepless speed regulation, Low EMI, Long life,
Performance:
| Items | Unit | Model |
| SM5037-ECG26A/ECG26B | ||
| Voltage | VAC | 230VAC |
| Frequency | Hz | 50Hz |
| Speed | RPM | 10RPM/20RPM |
| Capacitor | 0.18uF/630V | |
| Torque | Nm | 0.8Nm-1Nm/0.5Nm |
Technical Parameters :
| Voltage | Frequency | Input Power | Input Current |
Starting Voltage |
Temperature Rise |
Noise Level | Rotation Direction |
Dimension |
| (V) | (Hz) | (W) | (mA) | (V) | (K) | (dB) | D×H mm | |
| 100-120 | 50/60 | ≤14 | ≤110 | (100-120)±15% | ≤60 | ≤45 | cw/ccw | 60×60 |
| 220-240 | 50/60 | ≤14 | ≤55 | (220-240)±15% | ≤60 | ≤45 | cw/ccw | 60×60 |
Torque and Speed:
| Rated speed (rpm) |
2.5/3 | 3.8/4.5 | 5/6 | 7.5/9 | 10/12 | 12/15 | 15/18 | 20/24 | 25/30 | 30/36 | 40/48 | 50/60 | 60/72 | 80/96 | 110/132 |
| Normal torque(kgf.cm) |
45/38 | 32/27 | 26/21.5 | 20/17 | 12/15 | 13.5/11 | 10/8.3 | 7.5/6 | 6.5/5.3 | 5/4.2 | 4/3.3 | 3/2.5 | 2.5/2 | 2/1.7 | 1.4/1.2 |
| Higher torque(kgf.cm) |
60/50 | 50/40 | 40/34 | 25/21 | 20/17 | 18/15 | 14/11.5 | 10/8.3 | 8.5/7.2 | 7.5/6 | 6/5 | 4/3.3 | 3.5/3 | 2.5/2 | 2/1.6 |
| Highest torque(kgf.cm) |
80/65 | 60/50 | 50/40 | 30/25 | 30/25 | 26/21.5 | 21/18 | 15/12.5 | 12/10 | 10/8.5 | 8/6.5 | 6/5 | 5/4.2 | 3.5/3 | 3/2.5 |

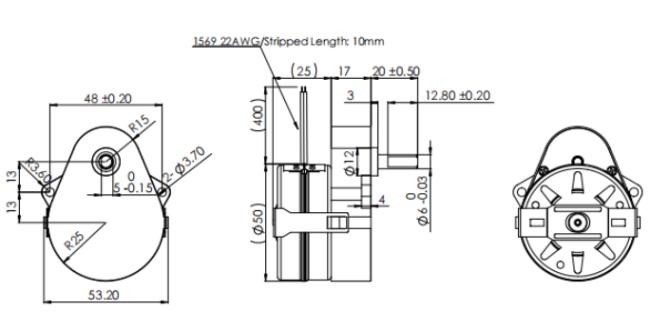

Drawing :
