φ60mm OD: D60 Series 60ZYT DC Motors For Automobile, Grinder, Door Openers
Typical Application:
Gearmotor, linear actuator,power tool, spreader,auger,ginder, vacuum cleaners and so on.
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.
1. Shaft Material: SS303, SS304, #45 Steel, Cr 40.
2. Frame Surface Treatment: Powder Coating, Electro phoresis surface treatment.
3. Magnet material:Hard Ferrit or rare earth
4. Armature Design: Skewed Slots Rotor Design for smooth running.
5. Number of Poles:2/4
6. Insulation Grade: Class F
7. Frame diameter: 60mm, 62mm
8. Power range: 50W~300W
9. Voltage: 12VDC~230VDC

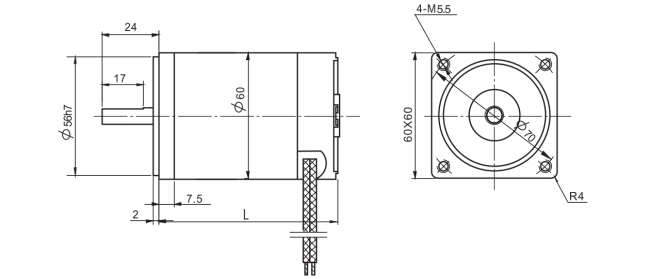

Drawing:
Typical Performances:
| Type | Rated Voltage (VDC) |
No-load Speed (r/min) |
No-load Current (A) |
Rated Speed (r/min) |
Rated Torque (g.cm) |
Output Power (W) |
Rated Current (A) |
Stall Torque (Kg.cm) |
Stall Current (A) |
| D6075A-24 | 24 | 1200 | 0.16 | 890 | 400 | 3.7 | 0.43 | 1.5 | 1.1 |
| D6075B-24 | 24 | 2000 | 0.3 | 1500 | 350 | 5 | 0.8 | 1.9 | 2.4 |
| D6075C-24 | 24 | 3000 | 0.4 | 2500 | 400 | 10 | 1.1 | 2.6 | 5 |
| D60105A-24 | 24 | 2000 | 0.32 | 1550 | 1250 | 20 | 1.6 | 5.5 | 6 |
| D60105B-24 | 24 | 3000 | 0.4 | 2500 | 1200 | 30 | 2.2 | 7.2 | 10.8 |
For custom made, please feel free to contact us today.
