Tight Structure Brushless DC Electric Motor 36mm*50mm Size Stall Torque 1730 - 1820G.CM
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
14days
Brand:
Retek
Product Description
36mm*50mm:Brushless DC motor W3650 for White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine
Typical Application:
Hair Dryer and Medical Apparatus and Medical Stirrer, Vibrator

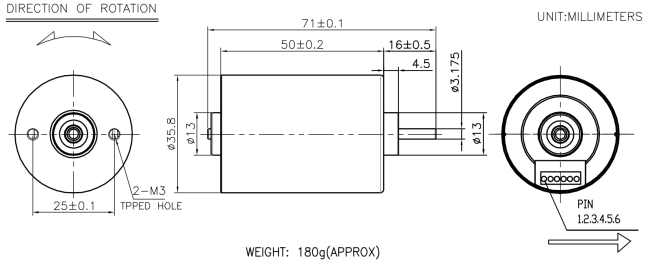

Drawing:
Typical Performance:
| Voltage | Noload | At Max. Efficiency | Stall | |||||||
| Model | Operating Range(V) | Nominal(V) | Speed(RPM) | Current(A) | Speed(RPM) | Current(A) | Torque(g.cm) | Output(W) | EFF(%) | Torque(g.cm) |
| W3650A | 9.0~14.0 | 12.0V constant | 5300 | 0.46 | 4302 | 1.98 | 341.5 | 15.1 | 63.3 | 1814.9 |
| W3650B | 19.0~26.0 | 24.0V constant | 13800 | 0.32 | 11680 | 1.76 | 265.3 | 31.8 | 74.9 | 1730.9 |

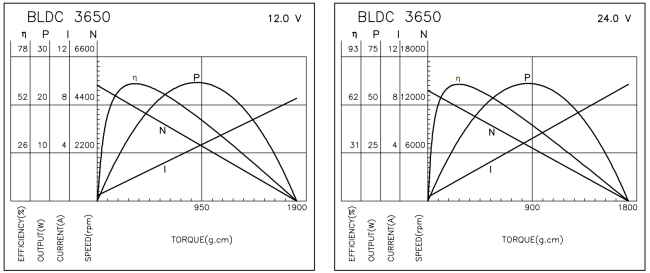

Curve:
For more details, please feel free to contact us for full specification.
