D6077SPG DC Spur Gear Motor Used For Transmission Automatics
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
14days
Brand:
Retek
Product Description
D6077SPG: DC Spur Gear motor used for transmission automatics
Typical Application:
Gearmotor, linear actuator,power tool,automated devices
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.

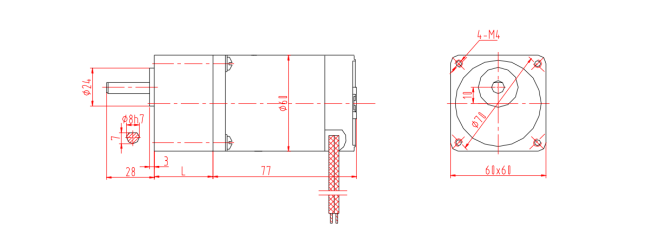

Drawing:
Motor Technical Data
| TYPE | Rated voltage VDC |
No-load speed r/min |
No-load current A |
Rated speed r/min |
Rated torque mN.m |
Output power W |
Rated current A |
Stall torque kg.cm |
Stall current A |
| D6075-2420 | 24 | 2000 | 0.3 | 1500 | 35 | 5 | 0.8 | 1.9 | 2.4 |
| D6075-2430 | 24 | 3000 | 0.4 | 2500 | 40 | 10 | 1.1 | 2.6 | 5 |
Gear motor Technical Data
| Reduction ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 |
| Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| (L) Length(L) mm | 32 | 32 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| No-load speed r/min | 667 | 400 | 267 | 200 | 160 | 133 | 80 | 67 | 40 | 27 | 22 | 20 | 17 | 13 |
| Rated speed r/min | 500 | 300 | 200 | 150 | 120 | 100 | 60 | 50 | 30 | 20 | 16 | 15 | 13 | 11 |
| Rated torque N.m | 0.08 | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.64 | 0.76 | 1.3 | 1.7 | 2.1 | 2.3 | 2.7 | 3.4 |
| Nm Max. permissible load in a short time |
2 | 2 | 2 | 2 | 2 | 2 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 |
| Direction of rotation | CCW | CCW | CCW | CCW | CCW | CCW | CW | CW | CW | CCW | CCW | CCW | CCW | CCW |
For custom made, please feel free to contact us today.
