High Torque Automotive Electric BLDC Motor-W8680 Brushless Dc Motor

This W86 series brushless DC motor(Square dimension: 86mm*86mm) applied for rigid working circumstances in industrial control and commercial use application. where high torque to volume ratio is needed. It is a brushless DC motor with outer wound stator, rare-earth/cobalt magnets rotor and Hall effect rotor position sensor. Peak torque obtained on the axis at nominal voltage of 28 V DC is 3.2 N*m (min). Available in different housings,Is conform to MIL STD. Vibration toleration: according to MIL 810. Available with or without tachogenerator, with sensitivity according to customer requirements.

Product introduction:
W86 series product is a compact high efficient brushless DC motor, magnet made by NdFeB(Neodymium Ferrum Boron) and high standard magnets imported from Japan as well as the higher standard stack lamination, which greatly improve the motor performances comparing to others available motors in the market.

Comparing to conventional dc motors, significant advantages as below:
1. Better speed-torque characteristics
2. Fast dynamic response
3. No noise in operation
4. Long service lifespan over 20000hrs.
5. Large speed range
6. High efficiency

Specification:

Application:

Kitchen equipment, data processing,engine, clay trap machines,medical laboratory equipment,Satellite communication,fall protection,crimping machines

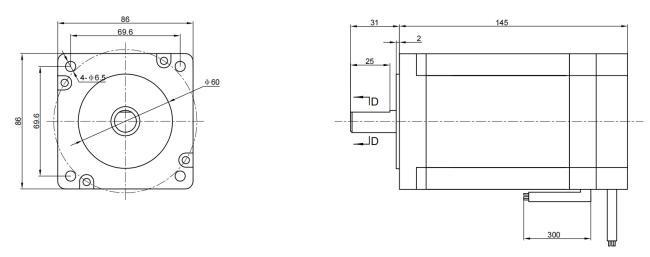

Dimension:

Parameters:

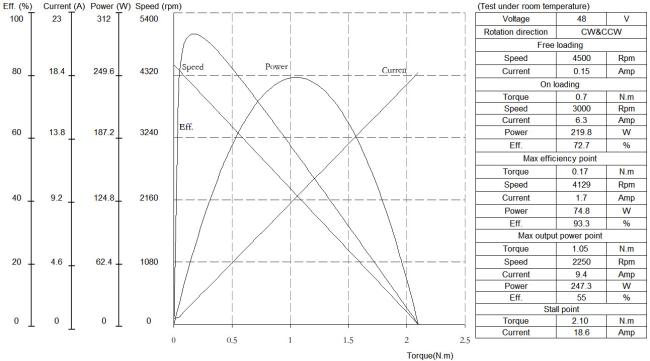

Typical Curve @48VDC:
