High Pressure 30bar 40 bar Oil Free Air Compressor For PET Bottle Blowing
High Pressure 30bar 40 bar Oil Free Air Compressor For PET Bottle Blowing
Feature of High Pressure Oil free Air Compressor For PET Bottle Blowing :
(1). Integrating reliability & economy;
(2). Energy efficient with oil free air delivery ;
(3). Low noise level and running speed with large Germany original Air end;
(4). Stable working pressure 20-40bar;
(5). Free installation base and low vibration;
(6). Water cooling and air cooling are available;
(7). Whole 304 stainless steel pipeline, excellent anti-corrosion, high temp resistance;
(8). Low noise and stable pressure than the piston type;
(9). Convenient transport ;
(10). High-quality& oil-free air under 40Bar;
(11). No base installment, easy to move;
(12). Convenient maintenance, you know the most of compressor is maintenance, our machine with optimized design have more high temperature (13). resistance and anti-wear characteristic, wear-leveling and more reliable, and the operation life can last over 4000-6000h.
(14). Long operation life of spare parts, easy to purchase, low cost
(15). Re-injection technology of low-pressure compressed air can be save 50% energy (compared to normal compression)
Full-automatic monitoring system of the set operation makes all operations and parameter clear at one glance and inform the accurate place of the malfunction. According to the severity level of the occurred problem, the systems will automatically suggest, diagnose and give an alarm or carry out shut-down protection to ensure the safety of the set.

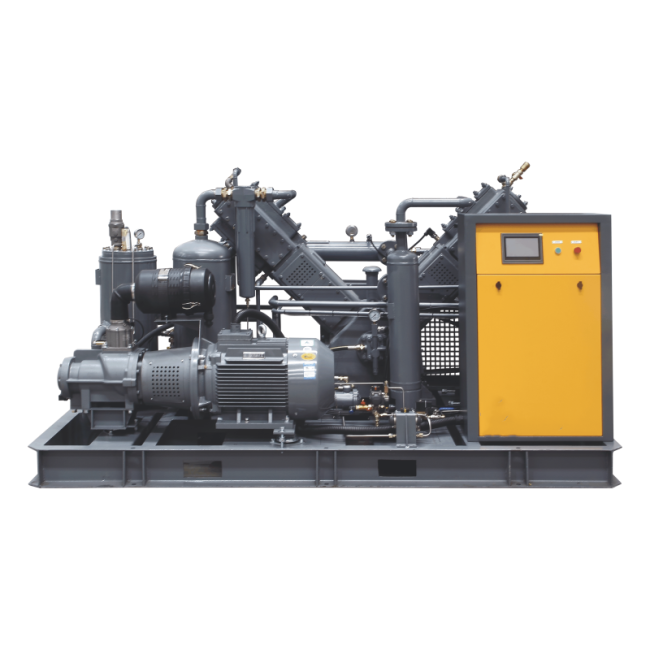

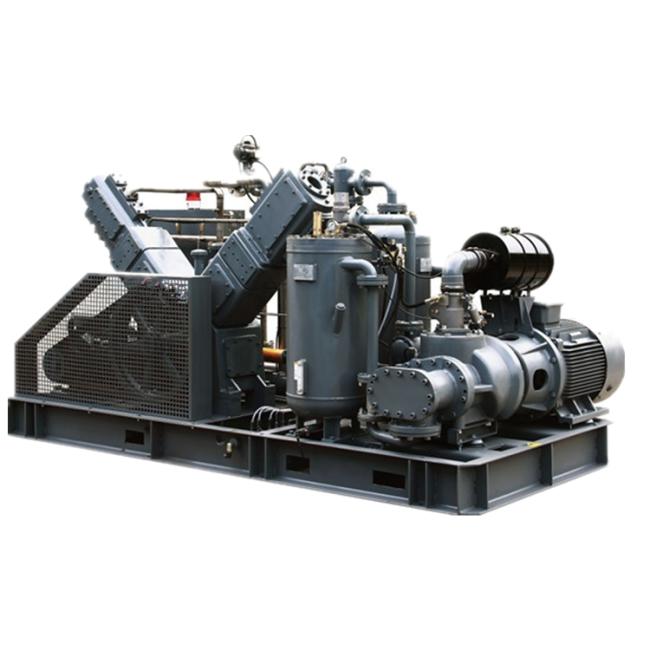

Picture Of High Pressure Oil free Air Compressor For PET Bottle Blowing
Technical Parameter Of High Pressure Oil free Air Compressor For PET Bottle Blowing
| Model | AET-2.4/30-40 | |
| Medium | Air | |
| Structural style | Screw Oil-free Piston Booster Air Compressor | |
| Cooling Way | Air Cooled | |
| Lubricating type | Pressure oil lubrication | |
| Driving Way | Belt drive | |
| Number of columns | 1 | |
| Compression stage | 2 | |
| Air flow | Nm3/min | 2.4 |
| Inlet pressure (absolute pressure) |
MPa(a) | 0.1 |
| Discharge pressure (Gauge pressure) |
MPa(g) | 3 |
| Inlet Temperature | ℃ | ≤40 |
| Discharge Temperature | ℃ | ≤60 |
| Maximum Shaft Power | KW | 30 |
| Crank shaft speed | r/min | 600 |
| Water Pipe Diameter | MM | DN20 |
| Discharge Air Pipe Dia | MM | R1 |
| Oil Pump Pressure | MpaG | 0.2～0.4 |
| Equipment weight | Kg | 2000 Including auxiliary machinery, pipelines and motors |
| Skid Mounting Dimension | L×W×H(mm) | 2150×1200×1200 |
| Motor | Motor Model | Y180M-4 |
| Y160L-4 | ||
| Speed | 2100r/min | |
| Motor Power | Screw Power: 15KW IP54 | |
| Booster Power: 11KW IP54 | ||
| Power Supply | 3PHASE/ 380V / 50Hz | |
| Diversion | Viewed clockwise from the flywheel end |

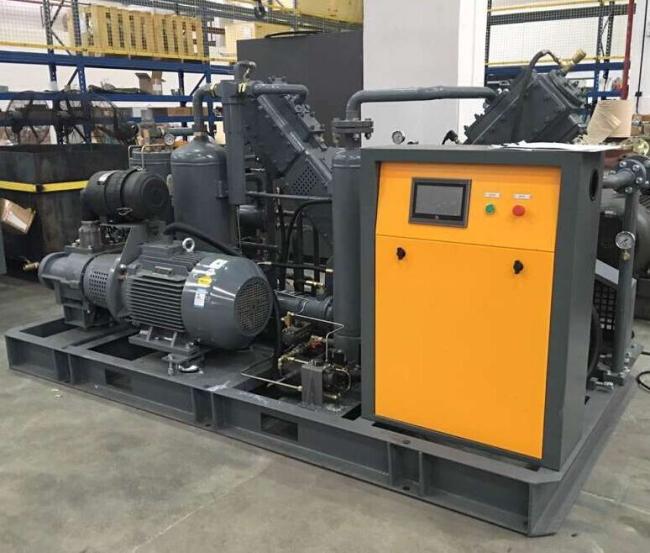

Details Images Of High Pressure Oil free Air Compressor For PET Bottle Blowing

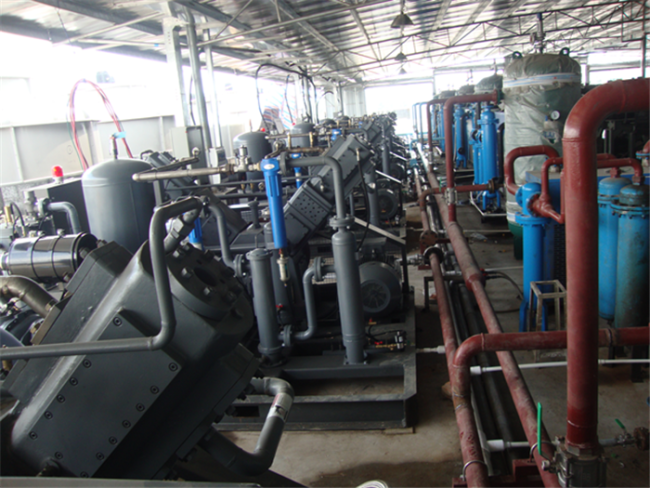

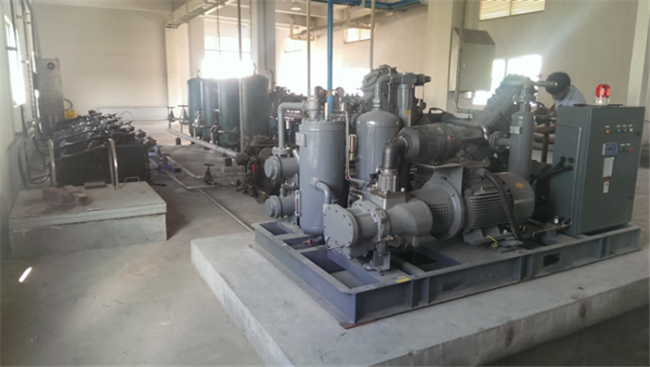

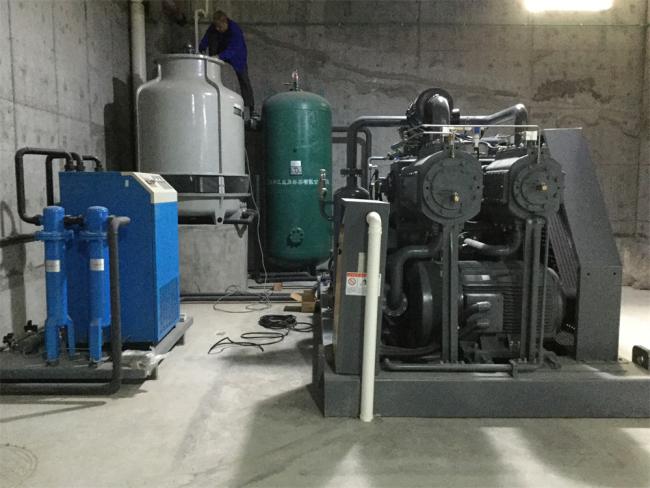

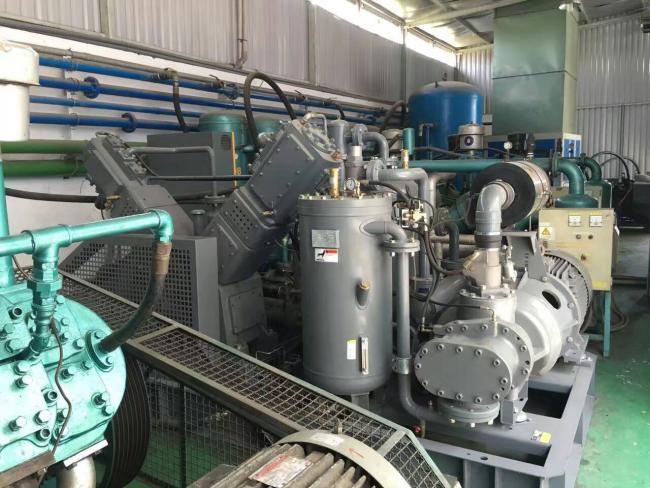

Customer Working Site Of High Pressure Oil free Air Compressor For PET Bottle Blowing
Complete Set Of Oil Free Screw Piston Booster PET Bottle Blowing Silent Oil Free Air Compressor
* Silent oil air free air compressor
*Air Tank
* Air Dryer
* Filters
*Cooling tower
