Energy Saving Oil-free 3Mpa 30 bar high pressure air compressor price
Energy Saving Oil-free 3Mpa 30 bar high pressure air compressor price
Product Description Of Energy Saving Oil-free 3Mpa 30 bar high pressure air compressor price
Feature of Air compressor:
(1). Integrating reliability & economy;
(2). Energy efficient with oil free air delivery ;
(3). Low noise level and running speed with large Germany original Air end;
(4). Stable working pressure 20-40bar;
(5). Free installation base and low vibration;
(6). Water cooling and air cooling are available;
(7). Whole 304 stainless steel pipeline, excellent anti-corrosion, high temp resistance;
(8). Low noise and stable pressure than the piston type;
(9). Convenient transport ;
(10). High-quality& oil-free air under 40Bar;
(11). No base installment, easy to move;
(12). Convenient maintenance, you know the most of compressor is maintenance, our machine with optimized design have more high temperature (13). resistance and anti-wear characteristic, wear-leveling and more reliable, and the operation life can last over 4000-6000h.
(14). Long operation life of spare parts, easy to purchase, low cost
(15). Re-injection technology of low-pressure compressed air can be save 50% energy (compared to normal compression)
Full-automatic monitoring system of the set operation makes all operations and parameter clear at one glance and inform the accurate place of the malfunction. According to the severity level of the occurred problem, the systems will automatically suggest, diagnose and give an alarm or carry out shut-down protection to ensure the safety of the set.
Technical Parameter Of Energy Saving Oil-free 3Mpa 30 bar high pressure air compressor price
| Model | AET-6.0/40 | ||
| Motor power | (KW) | 64 | |
| Power supply | 380V, 50Hz, 3Phase | ||
| Compressed stage | 2 | ||
| Pressure | Bar | 40 / 30 | |
| PSI | 580 /435 | ||
| Air Delivery | m3/min | 6 | |
| C.F.M | 168 | ||
| Crank axle peed | r/m | 520 | |
| Cooling way | Air Cooled Type | ||
| Outlet size | DN20 | ||
| Cooling water inlet and outlet size | ￠48*4 | ||
| Dimension | L*W*H (mm) | 3100×1500×1500 | |
| Weight | kgs | 3000 | |
| HS CODE | 841480 | ||
Complete Set Of 30 bar 40 bar Energy Saving Oil-free 3Mpa 30 bar high pressure air compressor price
*Air Tank
* Air Dryer
* Filters
*Cooling tower
Application:
High pressure air compressor is widely used in pet bottle blowing,leakage testing,pipeline cleaning(cleaning pipeline welding slag,cement),hydropower station(speed control system for pressure),chemical industry,military industry,petrochemical industry,oil and gas,valve testing,machinery manufacturing,marine and other fields.

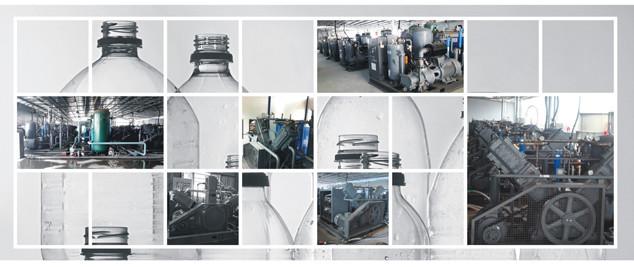

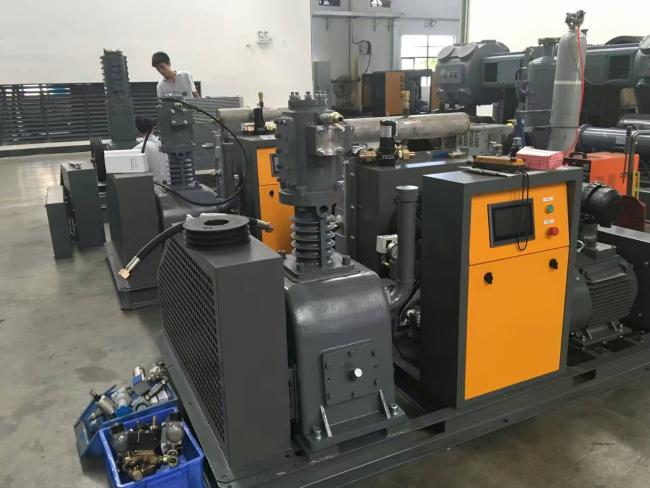

Our Factory
How to chooser a right high pressure air compressor? you can inform us:
1. What's the air flow need?
2. What's the pressure need?
3. What's the power supply need?
Our sales engineer will make the proposal and quote for you, Contact us please:
Mrs Jamie
Global Sales Engineer
Jinan Darko Machinery CO.,Ltd
Mobile/Whatsapp/Weichat :+86-15053152757
Email: jamie@darkochiller.com
Web: www.darkochiller.com
