Product Description
High efficient
*Combined with direct driven arrangement for superior energy efficiency
*Water seals and cools for ideal compression
*Optimal compression processes with the water cooling
Minimum service costs
*Only air filter and water filter need maintenance
*No lubricant costs
*Fast and easy for minimal downtime
High reliability
*Simple and robust design
* Low-speed direct drive, no high speed gears
*Low operating temperatures, no special coatings
High-quality air
*Low air temperature, easy to dry and treat
*No coating on routers that can contaminate or pollute the air
*Class 0 air quality
Environmental safety
*Low noise level
*Reduce energy consumption
*No oil discharge to the environment
Technical Parameter Of 22Kw High Pressure Screw Air Compressor Laser Cutting Air Compressor 16 bar
| Tank,Dryer and Filters Mounted Screw Air Compressor (4-in-1 type) | ||||
| Model | APM22ATR-1.6T | |||
| Motor power | 22Kw | |||
| Free air deliver | 1.9 (m3/min) | |||
| Free air deliver | 53 CFM | |||
| Discharge pressure | 16 bar | |||
| Tank volume | 500L | |||
| Compression stage | Single stage | |||
| Ambient temprerature | -5--+45℃ | |||
| Cooling mode | Air cooling | |||
| Discharge temperature (0C) | Ambient temperature+15℃ | |||
| Lubricant (L) | 10L | |||
| Noise Level (Db) | 62±2 | |||
| Drive method | Belt driven | |||
| Electricity (V/ph/Hz) | 380v/3ph/50hz | |||
| Starting method | Direct starting | |||
| Dimension L*W*H (mm) | 1980*880*1500 | |||
| Net Weight (kg) | 975 | |||
| Air outlet diameter (inch) | 3/4'' | |||
| Model | Pressure (Bar) | Air Flow (m3/min) | Power(Kw) | Dimension(mm) | Weight(Kg) | Outlet Dia |
| All In One Air Compressor ( Include Air Tank,Air Dryer, Filters) | ||||||
| APM15ATR-1.6T | 1.6 | 1.2 | 15 | 1980*880*1500 | 835 | G1" |
| APM22ATR-1.6T | 1.6 | 1.9 | 22 | 1980*880*1500 | 975 | G1" |
| Screw Air Compressor( No Include Air Tank,Air Dryer, Filters) | ||||||
| APM15ATR-1.6T | 1.6 | 1.2 | 15 | 1120*880*1120 | 460 | G1" |
| APM22ATR-1.6T | 1.6 | 1.9 | 22 | 1120*880*1120 | 500 | G1" |

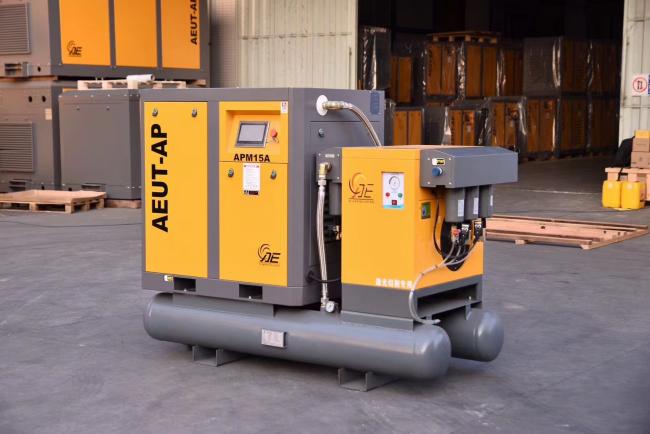

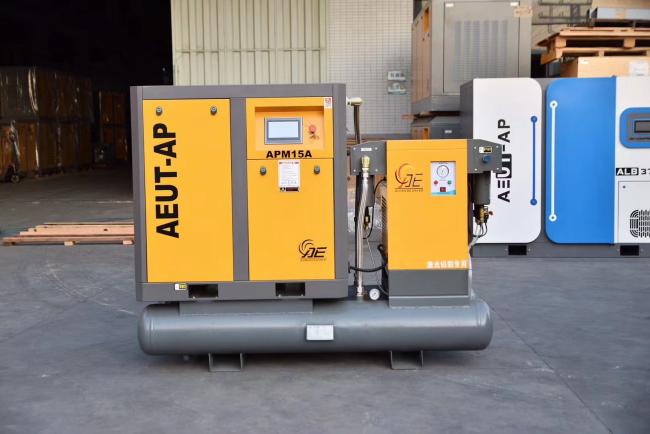

Complete Set Of 22Kw High Pressure Screw Air Compressor Laser Cutting
* Silent oil air free air compressor
*Air Tank
* Air Dryer
* Filters

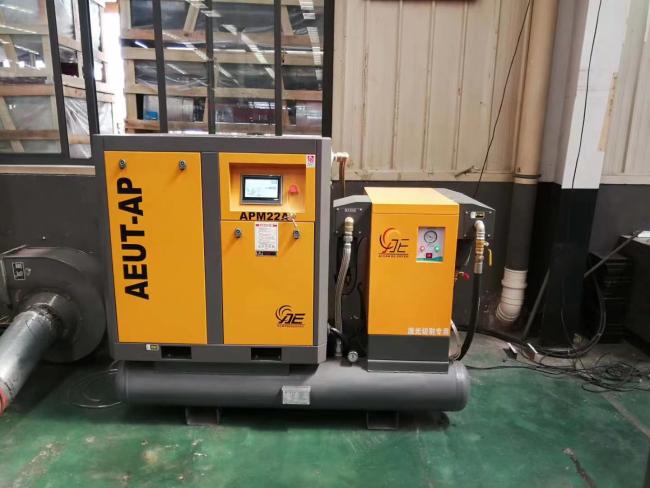

Application:
Our Factory
How to chooser a right high pressure air compressor? you can inform us:
1. What's the air flow need?
2. What's the pressure need?
3. What's the power supply need?
Our sales engineer will make the proposal and quote for you, Contact us please:
