(2). Inlet and outlet diameter: DN 80
(3).Connection with Flange
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor.

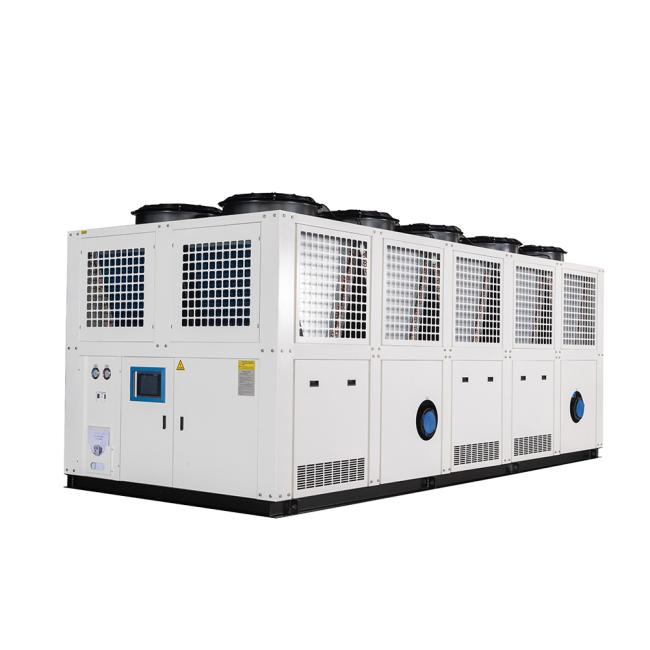

Industrial Water Cooling Chiller 150Kw Air Cooled Cooling Machine Chiller
Price:
US$2000.00~US$20000.00
MOQ:
1 Unit
Delivery Time:
Within 20 Working Days
Brand:
TAICH
Product Description
Industrial Water Cooling Chiller 150Kw Air Cooled Cooling Machine Chiller
As a leading air cooled screw chiller supplier, Darko Chiller provides a complete range of air-cooled screw chiller from TC-C series, with cooling capacity from 20 Ton to 150Ton / 78KW to 530KW and the chiller temperature control range is +30℃ to -30℃. Besides the standard air-cooled screw chiller control temperature of 7℃ to 30℃, TopChiller also has air-cooled glycol screw chiller control temperature below zero from 0℃ to -30℃.
(1).Air Cooled Screw Chiller cooling capacity from 20 Ton to 150 Ton (78KW~530KW)
(2).Semi-hermetic screw type compressor
(3).Air-cooled type condenser Temperature control from 7℃to 35℃
(4).Closed loop shell and tube evaporator
(5).No need to install a cooling tower
(1).Air Cooled Screw Chiller cooling capacity from 20 Ton to 150 Ton (78KW~530KW)
(2).Semi-hermetic screw type compressor
(3).Air-cooled type condenser Temperature control from 7℃to 35℃
(4).Closed loop shell and tube evaporator
(5).No need to install a cooling tower
Technical Data
| Air Cooled Screw Chiller Normally Temperature Series( Single System) | |||||||||
| Model | TC-80A | TC-100A | TC-150A | TC170A | TC-250A | TC-300A | TC-450A | TC-530A | |
Cooling Capacity |
USRT | 22.2 | 31.0 | 43.5 | 46.9 | 76.8 | 93.8 | 127.9 | 150.7 |
| Kcal/h | 67080 | 93740 | 131580 | 141900 | 232200 | 283800 | 387000 | 455800 | |
| KW | 78 | 109 | 153 | 165 | 270 | 330 | 450 | 530 | |
| Power | 3PH-380V-50Hz | ||||||||
Refrigerant |
Type | R22/R407C | |||||||
| Control | Thermostatic expansion valve | ||||||||
Comperssor |
Type | semi-closed screw type | |||||||
| kw Power | 29 | 38 | 48 | 55 | 86 | 106 | 142 | 165 | |
| Start | Y-△ | ||||||||
| Capacity | 25%-50%-75%-100% | ||||||||
Evaporator |
Type | High efficiency copper tube shell and tube type | |||||||
| m³/h Flow | 13 | 19 | 24 | 28 | 46 | 57 | 77 | 91 | |
Inlet/outlet |
DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | DN100 | |
Condenser |
Type | High efficiency hydrophilic aluminum foll finned type | |||||||
| m³/h Flow | 27000 | 40000 | 50000 | 60000 | 100000 | 120000 | 150000 | 180000 | |
| Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||
Dimension |
L(mm) | 2350 | 3200 | 3200 | 3300 | 4400 | 3850 | 4750 | 5850 |
| W(mm) | 1450 | 1450 | 1450 | 2300 | 2300 | 2200 | 2200 | 2200 | |
| H(mm) | 2150 | 2150 | 2150 | 2400 | 2400 | 2350 | 2450 | 2450 | |
| Wight | kg | 1800 | 1900 | 2300 | 2480 | 3800 | 3300 | 4000 | 5000 |
Control System
(1). SIMENS PLC control system, R485 OR Ethernet Connection support.
(2). Simple Punpu micro-computer control system, more stable, easy to operate.
(3). Schneider electrical components, UL certificate can option.
(4). Workable for outdoor design with a alone cabinet, waterproof.
(5). Alarm display, protect for equipment well.
Compressor
(1). Air cooled screw chiller can make with one compressor system, also can make to two compressor system; more energy saving, and conveneint for mainteance.
(2). 25%~50%~75%`100% energy control, when temperature to the temperature set point, it will unloading, when water become warmer, compressor start loading automatic.
(3). , Hanbell, Refcom, etc brand optional, Quality first, Service first.
Evaporator( Heat Exchanger)
(1). Shell and tube type; copper pipe working with refrigerant, and the shell is working with cold water which is supply to user.
(2). Inlet and outlet diameter: DN 80
(3).Connection with Flange
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor.
(2). Inlet and outlet diameter: DN 80
(3).Connection with Flange
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor.
Condenser
The condenser is used to lower the temperature of the refrigerant below the saturated condensing temperature, which enhances the
refrigeration effect and improves system capacity eventually.
Darko Chiller using the last generation of microchannel condensing coils:
* Long service life aluminum alloy
* Reduced refrigerant charge
* Several coating options available
refrigeration effect and improves system capacity eventually.
Darko Chiller using the last generation of microchannel condensing coils:
* Long service life aluminum alloy
* Reduced refrigerant charge
* Several coating options available
More Details Of Air Cooled Chiller
