Food And Beverage Industry Glycol Chiller Unit with Temperature Outlet Range -10 Degree C- 35 Degree C Customizable Design
Product Description:

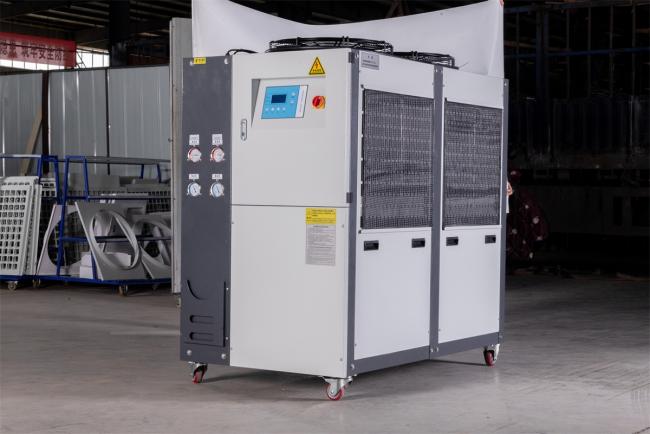

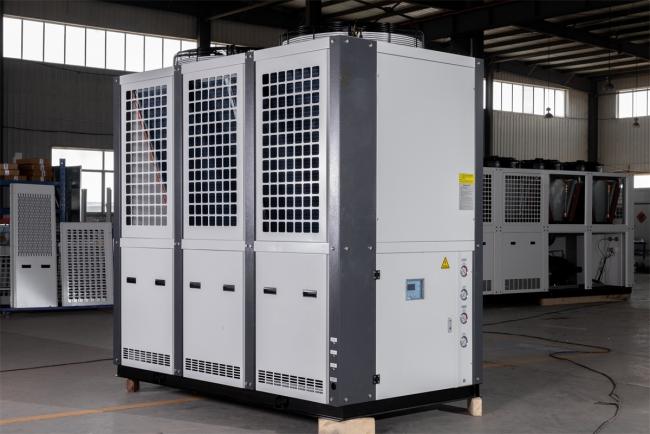

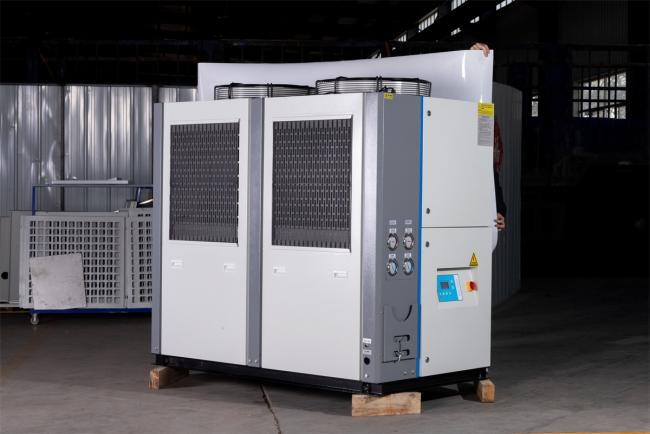

The Low Temperature Glycol Chiller is capable of maintaining a temperature range of -5℃ to room temperature, making it ideal for cooling beer and other beverages to the perfect temperature. It uses R22, R407C, or R410a refrigerants to ensure efficient and reliable operation. The chiller is equipped with a stainless steel or copper material that is highly resistant to corrosion and rust, ensuring long-lasting use.
Our glycol chiller 20hp is perfect for medium-sized breweries and other applications that require precise temperature control. It is designed to be efficient, reliable, and easy to use. The chiller comes with a built-in glycol tank, eliminating the need for a separate installation. This feature ensures that the chiller is always ready for use, making it ideal for busy breweries and other businesses.
Our glycol chiller water tank is designed to meet the unique needs of breweries and other beverage production facilities. It is built to provide reliable and efficient cooling, ensuring that your products are always at the perfect temperature. The chiller is equipped with a high-quality compressor that is designed to operate quietly and efficiently, minimizing energy consumption and reducing operating costs.
We are confident in the quality of our Low Temperature Glycol Chiller, which is why we offer a 1-year warranty on all parts and labor. Our commitment to quality and customer satisfaction is unmatched, and we are always available to answer your questions and provide support. Order your glycol chiller for beer today and experience the difference in quality and performance!
Features:
- Product Name: Low Temperature Glycol Chiller
- Temperature: -5℃ ~ Room Temperature
- Application: Brewing, Food And Beverage, Chemical, Pharmaceutical, Industrial
- Refrigeration: R22/ R407C/R410a
- Material: Stainless Steel/Copper
- Condenser: Fan + Finned
This low temperature chiller is ideal for use in various industries, including brewing, food and beverage, chemical, and pharmaceutical. Its refrigeration options include R22, R407C, and R410a. It is made of durable stainless steel or copper and features a fan and finned condenser. This 20 ton glycol chiller is also suitable for use as a fermenter glycol chiller.
Technical Parameters:
| Condenser Type | Fan + Finned |
| Evaporator Type | Shell And Tube |
| Water Flow | 1.17 M3/h~19.34 @-5 Degree C Outlet |
| Compressor Type | Hermetic Scroll/Semi-hermetic Screw |
| Temperature | -5℃ ~ Room Temperature |
| Warranty | 1 Year |
| Voltage | 3Ph-380V-50HZ OR Customize |
| Application | Brewing,Food And Beverage, Chemical, Pharmaceutical, Industrial |
| Condenser Type | Shell And Tube/Tank With Coil |
| Material | Stainless Steel/Copper |
1
| Model | DK-3C | DK-5C | DK-6C | DK-8C(D) | DK-10C(D) | DK-12C(D) | DK-15C(D) | DK-20C(D) | DK-25C(D) | DK-30C(D) | DK-40C(F) | DK-50C(F) | |
| Cooling capacity | At 0℃ Outlet (Kw) | 6.8 | 10.5 | 12.2 | 16.2 | 22.8 | 24.8 | 33.4 | 44.2 | 50.5 | 66.9 | 87.7 | 110.6 |
| At -5℃ Outlet (Kw) | 5.7 | 8.9 | 10.3 | 13.8 | 19.3 | 21.0 | 28.4 | 37.6 | 43 | 56.8 | 74.5 | 94 | |
| Power | Kw | 3.45 | 5.45 | 6.31 | 8.22 | 10.54 | 12.33 | 15.84 | 20.51 | 23.52 | 31.81 | 40.18 | 47.92 |
| Power Supply | 3PH-380V-50Hz | ||||||||||||
| Refrigerant | Type | R22/R407C | |||||||||||
| Control | Thermostatic expansion valve | ||||||||||||
| Compressor | Type | Hermetic scroll type | |||||||||||
| Power(Kw) | 2.84 | 4.36 | 5.2 | 3.5*2 | 4.4*2 | 5.2*2 | 6*2 | 8.7*2 | 10.2*2 | 8.7*3 | 8.7*4 | 10.2*4 | |
| Evapoirator | Type | SS Tank with coil or Shell and tube Or Plate Heat Exchanger | |||||||||||
| At 0℃ Outlet Water Flow(m3/h) |
1.29 | 1.99 | 2.31 | 3.07 | 4.32 | 4.70 | 6.33 | 8.37 | 9.57 | 12.68 | 16.62 | 20.96 | |
| At -5℃ Outlet Water Flow(m3/h) |
1.17 | 1.83 | 2.12 | 2.84 | 3.97 | 4.32 | 5.84 | 7.73 | 8.85 | 11.68 | 15.33 | 19.34 | |
| Capacity(L) | 50 | 70 | 70 | 120 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | 580 | |
| Inlet/Outlet | DN20 | DN20 | DN32 | DN32 | DN32 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | DN80 | |
| Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||
| Fan Power(Kw) | 0.25 | 0.52 | 0.52 | 0.24*2 | 0.52*2 | 0.52*2 | 0.55*2 | 0.75*2 | 0.75*2 | 0.75*2 | 1.5*2 | 0.75*4 | |
| Pump | Type | Centrigual water pump | |||||||||||
| Power(Kw) | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| Lift(m) | 24 | 25 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 20 | 19 | |
| Protection System | Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||
| Dimension | L (mm) | 700 | 900 | 900 | 950 | 1560 | 1560 | 1800 | 2100 | 2100 | 2200 | 2500 | 2000 |
| W (mm) | 550 | 850 | 850 | 900 | 850 | 850 | 1000 | 1000 | 1000 | 1160 | 1460 | 2000 | |
| H (mm) | 1000 | 1800 | 1800 | 1900 | 1500 | 1500 | 1600 | 1700 | 1700 | 1900 | 2000 | 1750 | |
| Weight | Kg | 150 | 200 | 230 | 310 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | 1600 |
Applications:
The low temperature glycol chiller is an ideal solution for industries that require cooling for their process. This product can be used in brewing, food and beverage, chemical, and pharmaceutical industries. The glycol chiller can help in maintaining the temperature of the process or product within the required range. It can be used for cooling wort in brewing, maintaining fermentation temperature, and cooling the final product before packaging. In the food and beverage industry, it can be used for cooling juices, milk, and other products.
The glycol chiller can also be used in chemical and pharmaceutical industries. It can help in maintaining the temperature of the reactants during the process. It can also be used for cooling the final product before packaging. The low temperature glycol chiller is an essential product for industries that require precise temperature control.
The DARKO DK-10AL comes with a 1-year warranty, ensuring that the product is free from defects and malfunctions. The product is designed to cater to various industrial applications and is built to last. It is a reliable product that can help industries in maintaining the temperature of their process or product.
Support and Services:
Our Low Temperature Glycol Chiller is designed to provide reliable and efficient cooling for a variety of industrial applications. Our technical support team is available to assist with any questions or issues you may encounter with your chiller. We offer services such as installation, maintenance, and repair to ensure optimal performance and longevity of your equipment.
Our team of experienced technicians is equipped with the knowledge and tools necessary to troubleshoot and diagnose any issues with your chiller. We offer remote support as well as on-site service for more complex problems. Additionally, we offer preventative maintenance plans to help keep your chiller running smoothly and prevent costly downtime.
Our commitment to customer satisfaction means that we are always striving to improve our products and services. If you have any feedback or suggestions for how we can better serve you, please do not hesitate to contact us.
Packing and Shipping:

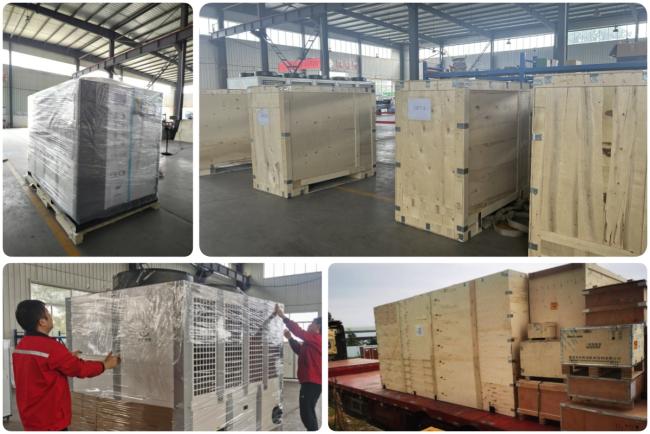

Product Packaging:
- The low temperature glycol chiller will be packed securely in a cardboard box.
- The box will be filled with foam inserts to ensure that the chiller is protected during shipping.
- The product will be labeled with appropriate handling instructions and warning labels.
- Accessories and user manual will be included in the package.
Shipping:
- The product will be shipped via a reliable courier service.
- The shipping cost will be calculated based on the destination and weight of the package.
- The estimated delivery time will be provided to the customer upon confirmation of the order.
- The customer will be provided with a tracking number to monitor the delivery status of the package.
If you require a cooling equipment for your project? Darko is a top-rated enterprise that will be standing first to meet your cooling needs by offering a reliable working cooling equipment.
There is no need to waste your time searching when the best option is already available. Make sure to fix a meeting with our sales staff for your deep satisfaction then confirm your order.
In order to save your time, you can send us the follows information when you contact with us:
1. What's the cooling capacity need? can use Kw, tons, or Kcal/h.
2. If you can't make sure the capacity, may I know what's the water flow in your system?
3. What's the inlet and outlet temperature need?
So that we can calculate and make and suitable chiller proposal for you.
