Low Temperature -15C -20C -25C Chemical Reaction Cooling Water Cooled Water Chiller
Low Temperature -15C -20C -25C Chemical Reaction Cooling Water Cooled Water Chiller
Brewery-Include Brewery cooling, Distillery cooling, Winery cooling, Fermentation cooling, Immersion cooling, Glycol chiller; this series widely used the temperature outlet -5 deg C, 0 deg C.
Food and Beverages – Confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc.
Pharma and chemical – Pharmacy Water Chiller, Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc
|

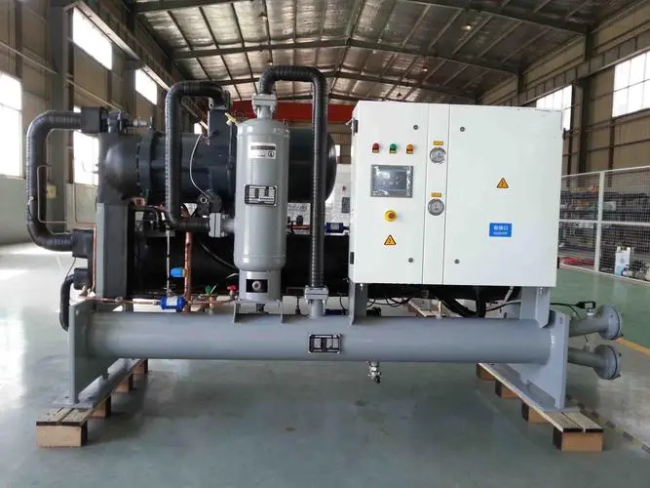

Low Temperature -15C -20C -25C Chemical Reaction Cooling Water Cooled Water Chiller
|
|||
|
Model
|
TH-600W
|
TH-650W
|
TH-750W
|
|
Capacity(-15C)
|
280KW | 295KW | 340KW |
| Capacity(-20C) |
232 kw
|
240Kw
|
282 kw
|
| Capacity(-25C) | 181KW | 190KW | 223 KW |
|
Power supply
|
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
|
||
|
Refrigerant
|
R22 / R407c / R410a /R134a /R404a
|
||
| Compressor quantity | 1 | 1 | 1 |
|
Compressor Power
|
123 kw
|
127 kw
|
149kw
|
|
Compressor type
|
Semi-hermetic screw
|
||
|
Chilled water flow( m3/h)
|
48 | 50.6 | 58.3 |
|
Inlet / Outlet Dia
|
DN 100
|
DN 100
|
DN 125
|
|
Cooling water need(m3/h)
|
76 | 80 | 920 |
|
Protection System
|
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
|
||
|
Dimension(mm)
|
3500*900*1800
|
4000*900*1800
|
3800*9000*1800
|
|
Weight (kg)
|
1750
|
1750 | 1850 |
Main Features Low Temperature -15C -20C -25C Chemical Reaction Cooling Water Cooled Water Chiller
*PTC temperature sensors used for more-point measuring.
*The latest 5 to 6 patented screw rotor profile with excxllent effciency.
*High efficiency,low noise,low vibration,smooth operation.
*Easy to install.
*Applicable to the green refrigerants,such as R134a,R407c,R404 etc.
Quality assurance:
1). We promise all of our water cooled screw chiller partds is from the manufacturer factory, 100% new and qualitied by supplier;
2). We promise all of the chiller will make at least 3 times test before package, insure all components and equipment 100% working well when delivery.
3).We promise will manufacture the product based on our contract, all material based on our contract.
Details Image
Advanced Compressor
• Unit adopts Germany or Taiwan HANBELL or Shanghai FUSHENG brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency for energy saving purpose
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
Microcomputer Control System
• Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.
• Easy Installation, Reliable Running
Features
• Shell and tube evaporator and condenser, high efficient thread red copper tube (material change on request).
• Siemens PLC control, LCD touch screen interface, easy operation, Standard design charged.
• R22, CFC free R407c, R134a for option.
380V-415V-480V/50/60HZ, 3PH for standard design. Chiller unit can be supplied according to diffierent requirements.
Cooling system includes Water Cooled SCrew Chiller, Water Tank, Cooling Tower, Water Pumps
1. Water cooled screw chiller
2. Stainless steel water tank
3. Cooling tower
4. Water pumps
We can provide you the one-stop purchase, all above parts from from us, of course this is not must buy from us, if you already have them, or you can buy them in local, it is also ok.
