CE Certified 5HP Air Cooled Glycol Chiller for Beer Solution Fermenting tanks and Wort Cooling
CE Certified 5HP Air Cooled Glycol Chiller for Beer Solution Fermenting tanks and Wort Cooling
1.Production
* Cooling capacity: 36520BTU/Hr---3 Ton ----9185kcal/hr
* 14 months quality warranty
* CE certificate
* Refrigerant: R407c/R410a/R404a or R22
* Voltage: 220,380V-415V,440V-460V,480V,600V
* Single or three phase--50/60HZ
* Chilled outlet water temperature -- -20C,15C,-10C,-5C to +35 C degree
|
SPECIFICATIONS WATER CHILLER PLANT SYSTEM
|
|||
|
Model
|
TH-5A
|
||
|
Colling capacity
|
0 deg C
|
10.5KW
|
3TONS
|
|
-5 deg C
|
8.9KW
|
2.5Tons
|
|
|
-10 deg C
|
6.45KW
|
1.8 TONS
|
|
|
Water Chiller Performance
|
Voltage
|
208v/220v/380v/415v/440v/460v/480V
|
|
|
Refrigerant
|
R407c, R22, R410A, R134A, R404A
|
||
|
Refrigerant Control
|
Emerson Expansion Valve
|
||
|
Glycol Beer Chiller Compressor
|
Power
|
KW
|
4.36
|
|
Quantity
|
1 | ||
|
Type
|
Hermetic scroll
|
||
|
Glycol beer chiller Evaporator
|
Type
|
Stainless Steel Water Tank with coil; Dry shell and tube type; Stainless steel plate heat exchanger
|
|
|
Tank Capacity
|
70L
|
||
|
-5 deg C Water Flow
|
1.83 m3/h
|
||
|
Pipe Diameter
|
DN 20
|
||
|
Air Cooled Condenser
|
Type
|
Finned Copper Tubes
|
|
|
Chiller Water Pump
|
Power
|
kw
|
0.55
|
|
Head
|
meter
|
20 or as required
|
|
|
Dimension
|
mm
|
1200*600*1100
|
|
2.Air Cooled Details Images
1) Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
2) Chilled water temperature range 5ºC to 35ºC.
3) R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
4) Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
5) Microcomputer control system offering accurate temperature stability within ±1ºC.
6) Low noise and big volume air blower.
7) Standard equipped Iron pump, stainless steel or high lift pump for option.
8) The innovative evaporator-in-tank configuration ensures a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
9) Industrial air cooled water chiller adopted aluminum fin/copper tube type condenser, easy for cleaning and installation.
10) Muti- protection devices ensure the chiller unit running safely: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection.
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz
3. Installation for air cooled chiller
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.

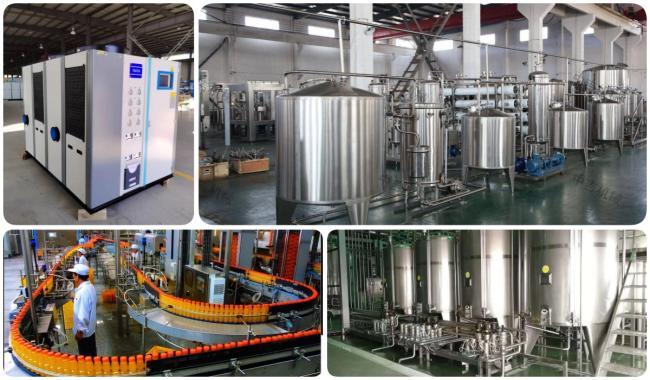

Application and customer working site
1).Food and Drinks (Brewery, Winery, Distillery, Beverages, Confectionery, Chocolate, Storage)
2).Plastics (Injection, Blow Molding, Extrusion, Film Extrusion, Thermoforming)
3).Paper (Manufacturer, Printing, Card Board, Labels, Plastic Film)
4).Chemical (Petro Chemical, Paints, Solvents, Temperature Control)
5).Mechanical (Welding, Cutting, Profiling, Polishing, Rolling, Grinding)
6).Other (Wood, Ceramics, Gold & Silver, Pharmaceutical, Textile)
4. Package And Delivery
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
