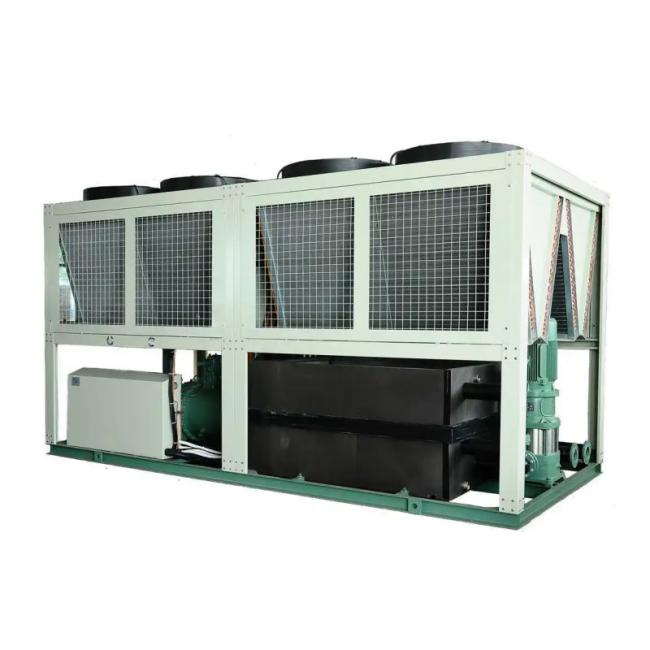

Extrusion Molding / Pharmaceutical / Poultry 150 Hp 450 Kw Air Cooled Screw Water Cooled Chiller 130 Ton
Extrusion Molding / Pharmaceutical / Poultry 150 Hp 450 Kw Air Cooled Screw Water Cooled Chiller 130 Ton
Application Of Extrusion Molding / Pharmaceutical / Poultry 150 Hp 450 Kw Air Cooled Screw Water Cooled Chiller 130 Ton
Water Chiller are used for controlled cooling temperature of products, mechanisms and factory machinery in a wide range .
Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses, cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc.
Metal working – Water jet cutting, power press, hydraulic oil cooling, laser cutting, aluminium extrusion, precious metal processing, etc.
Paper and related – printing machine, labelling machine, cardboard making, plastic film machine, etc.
Others – textile, semiconductor, air compressor, concrete batching, dynamometer, furnace, etc.
Parameters Of Extrusion Molding / Pharmaceutical / Poultry 150 Hp 450 Kw Air Cooled Screw Water Cooled Chiller 130 Ton
SPECIFICATIONS | |||
Model | TH-450A | ||
Cooling capacity | KW | 450 | |
Kcal/hr | 387000 | ||
Power supply | 3PHASE/380V/50HZ, or 3PHASE/220V/480V/60HZ | ||
Refrigerant | Type | R22/R407C/R404A | |
Control Type | Thermostatic expansion valve | ||
Compressor | Type | Semi-hermetic Screw Type | |
Power | KW | 142 | |
Start way | Y-delta | ||
Energy control range | % | 25,50,75,100 | |
Evaporator | Type | Shell and Tube | |
Chilled water flow rate | m3/h | 77 | |
Inlet/outlet pipe diameter | mm | DN100 | |
Condenser | Type | Finned copper tube +axial air fan | |
Cooling air flow | m3/h | 150000 | |
Machine Size | LxWxH(mm) | 4750*2200*2450mm | |
Features
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.
Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Adopt oil separator , to ensure compressor oil has good lubrication on the low outlet temperature -10C.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
(1).Compressor: Semi-hermetic screw type compressor, famous brand ,/Fusheng/Hanbell available
(2).Fan: Large volume air fans, internal rotor 6 stages
(3).Evaporator: Shell and tube type , closed circuit
(4).Condenser: Finned copper tube covered aluminum fins
1. Different brand screew type compressor available , Hanbell, , Daikin, Fusheng, RefComp;
2. Convenient installation, no need cooling tower;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
Package
1. Fumigation-free PLYWOOD CASE for all equipment if by lCL shipment;
2. Or Plywood frame case for FCL shipment;
3. We can accept any loading port in China, and aly discharge port as customer need.
