40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
Features:
1.Adopt the brand scroll compressor, such as: Copeland, Danfoss, Sanyo, Panasonic, Daikin etc
2.Non - oxygen welding the internal copper pipe
3.High efficiency evaporator and condenser
4.Adopt the 304 SS water tank
5.PC board self-optimizing microprocessor, easy to operation
6.Imported electrical accessories, OMRON,FUJI,TE,LG,ABB,SCHNEIDER,SIEMENS etc.
7.Safety protection and fault display system improvement, maintenance no need the professional personnel
8.The whole unit box type structure, beautiful appearance, compact structure, easy to check the operation of the unit at any time.
9.Unit equipped with the water circulating pump and 304 SS water tank according to the cooling capacity, no need install the water tower, convenient installation and maintenance..
|
Air Cooled Water Chiller Parameter
|
|||
|
Outlet Temperature
|
-10 degree C
|
||
|
Model
|
TH-20A
|
TH-30A
|
TH-40A
|
|
Cooling capacity
|
22188 kcal/h
|
34400 kcal/h
|
45580 kcal/h
|
|
25.8kw
|
39.75 kw
|
53 kw
|
|
|
Power input
|
21.5 kw
|
32.2kw
|
41.8 kw
|
|
Power supply
|
3 Phase -220V/380/415/440V/400V/460V/480V-50HZ/ 60HZ
|
||
|
Refrigerant
|
R22 / R407c / R410a /R134a /R404a
|
||
|
Evaporator type
|
Tank with coil, or shell and tube, or SS heat exchanger plate, 3 type for your choose
|
||
|
Chilled water flow(m3/h)
|
5.16
|
7.95
|
10.6
|
|
Inlet / Outlet Dia
|
DN 40
|
DN 65
|
DN 65
|
|
Condenser Type
|
High efficiency hydrophilic aluminum foll finned type
|
||
|
Pump (kw)
|
1.5
|
2.2
|
2.2
|
|
Protection System
|
Compressor overheat protection, High/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection
|
||
|
Dimension (mm)
|
2100*1000*1700
|
2200*1160*1900
|
2500*1460*2000
|
|
Weight (kg)
|
750
|
1150
|
1350
|

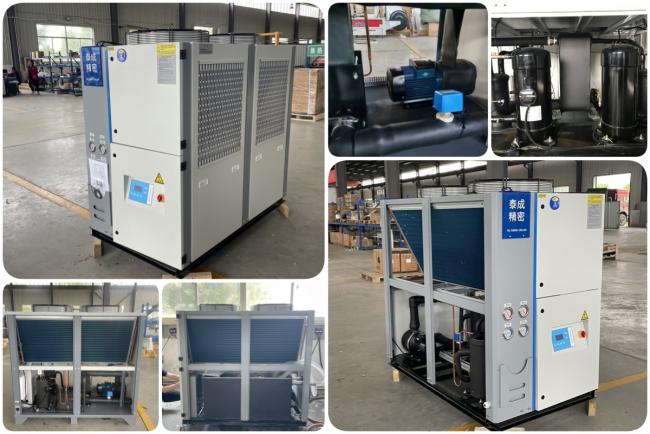

Detail configuration of 40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Two type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stinless steel pump for different option
6). Muti- protection devices: oveheating, anti-freezing, overload, phase-sequency, and so on.

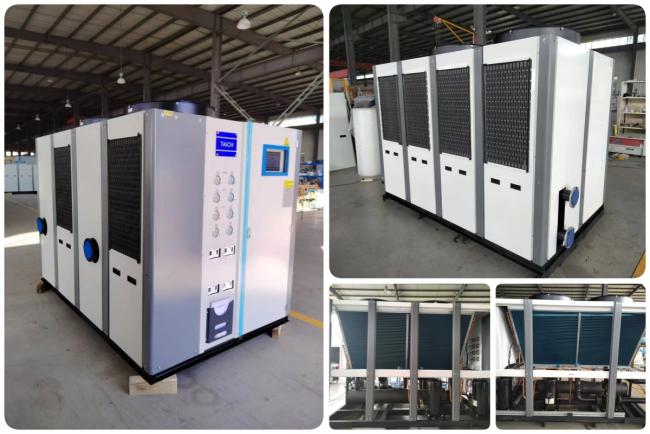

40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
Cooling capacity : 5.7kw~83.6kw / 1.6 ton ~ 23.8 tons
Horse power : 5hp~50hp
Outlet temperature : -10C ~ +30C, can be adjusted on the chiller control panel
Electric power supply available : 3PH-208V/220V/380V/415V/460V-50Hz/60Hz

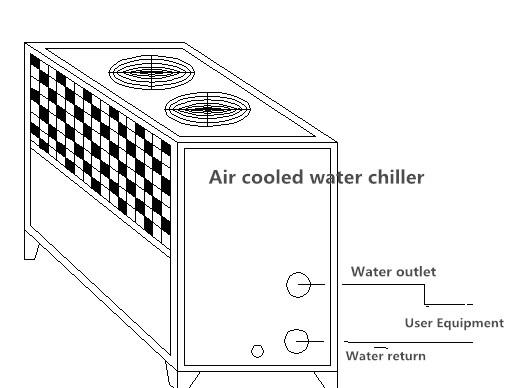

3. Installation for 40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
We will supply you the free installation design, with drawing details, from water chiller arrive to user to it can working in your production, we have professional engineer one to one support, so no need worry about installation.
(1).If User side is a closed loop, then please choose our " tank with coil" type chiller.
(2).If user side is a open type loop, please choose our " shell and tube" or "heat exchanger plate" type.

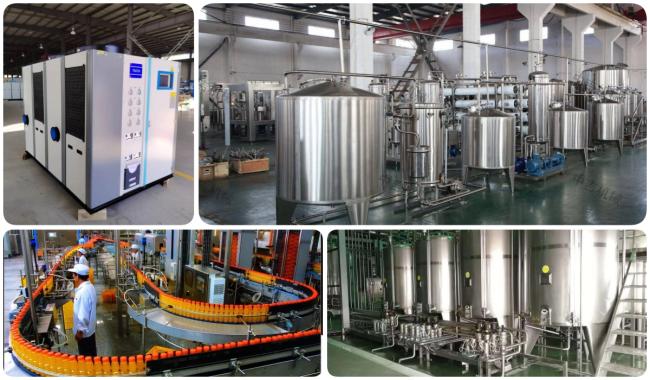

Application and customer working site
Package And Delivery Of 40 HP -10 degree C Air Cooled Glycol Water Chiller Machine For Soap Factory Soap Die Process Line
Packing
1. Firstly, adopt the protective film and Plastic foam make protect;
2. Secondly, adopt the plywooden case package.
Delivery
1. Delivery time: normally equipment will be delivery within 15 working days after we get your order.
2. Delivery place: We can accept any place:
(1). if you have container in China, any city we can send.
(2). If you have own forwarder, we can send to any loading port.
(3). Of course, we can arrange the shipment to any discharge port in your country, or Door to door is allowable.
Please provide us :
1. which industry this chiller working for
2. cooling capacity required in tons, kcal/hr, btu/hr or KW
3. water temperature control in C degree or F degree
4. Power supply available at installation site, voltage/ phase/hertz
5. Do you have any special requirement for part brand, such as compressor, pump or others
