12Cr13 Stainless Steel Strip Coil 410 UNS S41000 Hot Rolled 4.0mm
Stainless Steel Grade 410 /UNS S41000 / 12Cr13 Strip Coil No1 Hot Rolled 4.0mm
Description
Grade 410 stainless steels are general-purpose martensitic stainless steels containing 11.5% chromium, which provide good corrosion resistance properties. However, the corrosion resistance of grade 410 steels can be further enhanced by a series of processes such as hardening, tempering and polishing. Quenching and tempering can harden grade 410 steels. They are generally used for applications involving mild corrosion, heat resistance and high strength.
Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | |
|---|---|---|---|---|---|---|---|---|
| 410 | min. max. |
- 0.15 |
- 1 |
- 1 |
- 0.04 |
- 0.03 |
11.5 13.5 |
0.75 |
Mechanical Properties
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | - | - |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
Corrosion Resistance
Grade 410 stainless steels are resistant to hot gases, steam, food, mild acids and alkalies, fresh water and dry air. These steels obtain maximum corrosion and heat resistance through hardening. However, grade 410 steels are less corrosion resistant than austenitic grades and grade 430 ferritic alloys containing 17% chromium. Smooth surface finish offers improved performance of steels.
Machining
Grade 410 steels can be easily machined in highly tempered or annealed conditions. However, it is hard to machine grade 410 steels if they are hardened above 30HRC. Free machining grade 416 is the best alternative.
The table below provides the suitable alternative grades to 410 stainless steels:
| Grade | Reasons for choosing the grade |
|---|---|
| 416 | High machinability is required, and the lower corrosion resistance of 416 is acceptable. |
| 420 | A higher hardened strength or hardness than can be obtained from 410 is needed. |
| 440C | A higher hardened strength or hardness than can be obtained even from 420 is needed. |
Workshop

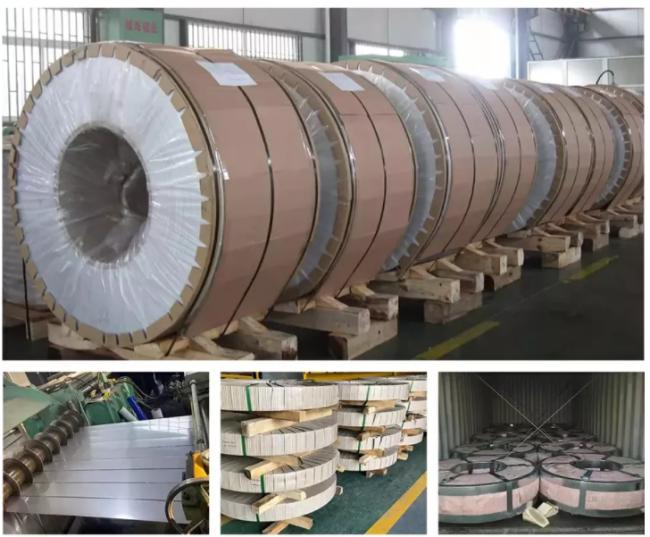

Product Display
Packing and transportation
Our company have professional team who can adopt developed packaging technology to assure no any damages of products during transportation.
- Standard export packaging:
Waterproof Paper Winding+PVC Film+Strap Banding+Wooden Pallet or Wooden Case; - Customized packaging as your request (Logo or other contents accepted to be printed on the packaging);
- Other special packaging will be designed as customer’s request;
- Eye to wall and eye to sky are both available;
- By International Express: DHL/UPS/FEDEX/EMS and our own express line;
- By air or By sea;
- Shipping port: Shanghai, Ningbo or as your request.
Applications
Grade 410 stainless steels find applications in the following:
Bolts, screws, bushings and nuts
Petroleum fractionating structures
Shafts, pumps and valves
Mine ladder rungs
Gas turbines
