AISI304 Stainless Steel Wire Coil Rope 7*37 15mm Cold Heading
7*37 15mm AISI304 Stainless Steel Wire Rope stainless steel wire coil
Our stainless steel wire is processed free of surface imperfections such as pitting, scratches and seaming etc… Our bright drawn and electro polishing quality (EPQ) wire is drawn with specially manufactured dies to the very highest quality enabling it to be post cleaned / polished easily without shading differences from batch to batch.
The uses of our wire are very wide and include a selection of fastenings and fixings, springs and clamping methods. This material is also used in the manufacture of stainless steel wall ties, welded mesh and exhaust brackets. Wall ties particularly benefit from a stainless steel construction as the constant attack of water experienced by the components is no problem for the metals’ anti-corrosive properties.
Product Description
Material: AISI304, AISI 316
Construction: 7X19
Dia. Range: 8mm
Spec. EN12385-4 (DIN3053)
Tensile strength: 1570N/mm2~1770N/mm2

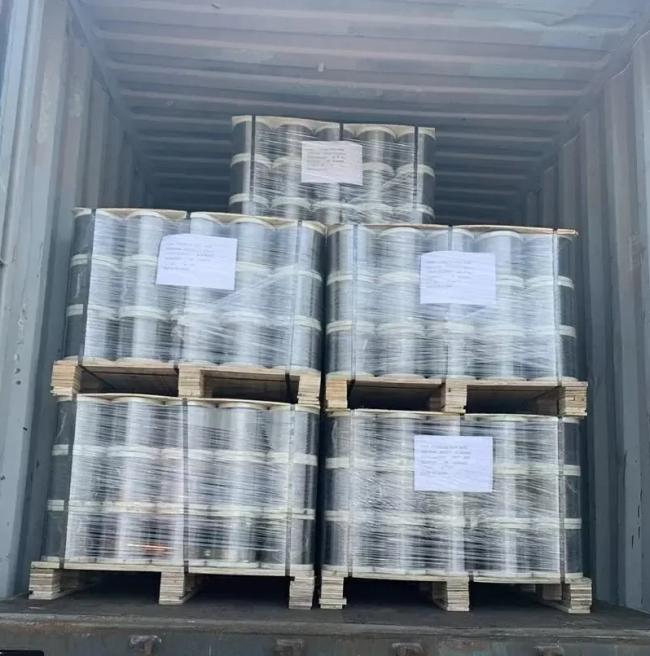

Packing: 1000~3000mtrs/reel, wooden reel and pallet, or according to ur requirements
Characteristics: Hard, widely used for yachting
Prodution lead time: 15 days
Payment: T/T, L/C, WU, etc.
| Type AISI | C Max % | Mn Max % | P Max | S Max | Si Max | Cr | Ni | Mo |
| % | % | % | % | % | % | |||
| 201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.000-18.00 | 0.5 | – |
| 202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 3.-0-5.00 | – |
| 204Cu | 0.08 | 6.5-8.5 | 0.06 | 0.03 | 2 | 16.0-17.0 | 1.5-3.0 | – |
| 302 | 0.15 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 8.00-10.00 | – |
| 302HQ | 0.03 | 2 | 0.045 | 0.02 | 1 | 17.00-19.00 | 9.00-10.00 | – |
| 304Cu | ||||||||
| 304HC | 0.04 | 0.80-1.70 | 0.04 | 0.015 | 0.3-0.6 | 18-19 | 8.5-9.5 | – |
| 303 | 0.07 | 2 | 0.045 | 0.25 Min | 1 | 17-19 | 8.0-10.0 | 0.6 |
| 304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.0-10.50 | – |
| 304L | 0.03 | 2 | 0.045 | 0.03 | 1 | 18.00-20.00 | 8.00-12.00 | – |
| 310S | 0.055 | 1.5 | 0.04 | 0.005 | 0.7 | 25.0-28.0 | 19-22 | – |
| 314 | 0.25 | 2 | 0.045 | 0.03 | 1.50-3.00 | 23.00-26.00 | 19.00-22.00 | – |
| 316 | 0.06 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.03 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316Ti | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 9.00-13.00 | – |
| 321 | 0.06 | 2 | 0.045 | 0.01 | .40-.60 | 17-19.00 | 9.4-9.6 | – |
| ER308 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17-19 | 9.5-13.0 | – |
| ER308L | 0.025 | 1.50/2.00 | 0.025 | 0.02 | 0.5 | 19.0/21.0 | 9.5/11.0 | – |
| ER309 | 0.08 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 20.0/14.0 | – |
| ER309L | 0.025 | 1.50/2.50 | 0.02 | 0.015 | 0.5 | 23.0/25.0 | 12.0/14.0 | – |
| ER316L | 0.02 | 1.50/2.00 | 0.02 | 0.02 | 0.5 | 18.0/20.0 | 12.00-14.00 | 2.00-3.00 |
| 430L | 0.03 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | – | |
| 434 | 0.08 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | – | 0.90-1.40 |
Typical applications
- Excellent forgeability
- Oil industry - Aerospace industry
- Mould manufacturing
Features:
Uniform and beautiful surface condition
Excellent coil forming ability
High elasticity and high fatigue resistance
Strong corrosion resistance against exposure to the toughest atmosphere
