Polished Stainless Steel Welded Tube Thickness 0.3 - 4.5MM Sanitary Pipe
Sanitary Pipe 201 304 316 Erw Welding Line Type Color Stainless Steel Tube
Products Details
Stainles steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.my company long-term supply stainless steel porducts including:stainless steel sheet,stainless steel coil and stainless steel tube
Chemical composition(WT%)
| Material | C | Si | Mn | P | S | Cr | Ni |
| 201 | ≤0.12 | ≤0.75 | 9.5-12.5 | ≤0.045 | ≤0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 18-19 | 8-10.5 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.035 | ≤0.03 | 10-14 | 16-18.5 |
| Type | stainless steel pipe |
| Thinckness | 0.3-4.5mm |
| Outer diameter | 12-220mm |
| Length | 6m or as customer's requirement |
| Finish | Polished, Pickled |
| Technology | welded |
| Standard | JIS, AISI, ASTM, GB, DIN, EN ,etc. |
| MOQ | 1 Ton |
| Application | decoration, industry, etc. |
| Certificate | SGS |
| Packaging | Standard exporting packing |
| Trade terms | FOB,CFR,CIF,CNF |
| Delivery time | Within 10 working days after receiving your deposit |
| Payment terms | 1. 30%T/T in advance, the balance against the B/L copy |
| 2. 30%T/T in advance, the balance against L/C original at sight | |
| 3. 100%L/C at sight |
DIMENSION
| Specifications of stainless steel decorative pipe (mirror) | ||||||||||||||
| Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
| Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 | |
| Φ | 12.3 | 0.57 | 0.71 | 0.88 | 1.05 | 1.21 | 1.53 | 1.84 | ||||||
| Φ | 12.7 | 0.59 | 0.74 | 0.91 | 1.09 | 1.26 | 1.91 | 1.91 | ||||||
| Φ | 15.3 | 0.72 | 0.89 | 1.11 | 1.32 | 1.53 | 2.33 | 2.33 | ||||||
| Φ | 16.0 | 0.75 | 0.93 | 1.16 | 1.38 | 1.60 | 2.45 | 2.45 | 3.06 | |||||
| Φ | 17.2 | 0.81 | 1.00 | 1.25 | 1.49 | 1.73 | 2.19 | 2.65 | 3.31 | |||||
| Φ | 18 | 0.85 | 1.05 | 1.31 | 1.56 | 1.81 | 2.30 | 2.78 | 3.47 | |||||
| Φ | 19 | 0.89 | 1.11 | 1.38 | 1.65 | 1.91 | 2.43 | 2.94 | 3.68 | 4.86 | ||||
| Φ | 20.2 | 0.95 | 1.18 | 1.47 | 1.76 | 2.04 | 2.60 | 3.14 | 3.93 | 5.20 | ||||
| Φ | 22 | 1.04 | 1.29 | 1.61 | 1.92 | 2.23 | 2.84 | 3.43 | 4.31 | 5.71 | ||||
| Φ | 25 | 1.18 | 1.47 | 1.83 | 2.19 | 2.54 | 3.24 | 3.93 | 4.94 | 6.56 | ||||
| Φ | 28 | 1.32 | 1.65 | 2.06 | 2.46 | 2.86 | 3.65 | 4.42 | 5.57 | 7.41 | ||||
| Φ | 29.2 | 1.38 | 1.72 | 2.14 | 2.57 | 2.98 | 3.81 | 4.62 | 5.82 | 7.75 | ||||
| Φ | 31.8 | 1.51 | 1.88 | 2.34 | 2.80 | 3.25 | 4.16 | 5.04 | 6.36 | 8.49 | 10.55 | 12.53 | ||
| Φ | 35.8 | 1.70 | 2.12 | 2.64 | 3.16 | 3.67 | 4.69 | 5.70 | 7.20 | 9.63 | 11.98 | 14.26 | ||
| Φ | 38 | 1.80 | 2.25 | 2.80 | 3.35 | 3.90 | 4.99 | 6.07 | 7.66 | 10.25 | 12.77 | 15.22 | ||
| Φ | 42 | 2.49 | 3.10 | 3.71 | 4.32 | 5.52 | 6.72 | 8.50 | 11.39 | 14.21 | 16.95 | |||
| Φ | 48 | 2.85 | 3.55 | 4.25 | 4.95 | 6.34 | 7.71 | 9.75 | 13.09 | 16.36 | 19.55 | |||
| Φ | 50.8 | 3.01 | 3.76 | 4.50 | 5.24 | 6.71 | 8.17 | 10.34 | 13.89 | 17.36 | 20.76 | 24.09 | ||
| Φ | 60 | 3.56 | 4.45 | 5.33 | 6.20 | 7.95 | 9.68 | 12.26 | 16.50 | 20.66 | 24.75 | 28.77 | ||
| Φ | 63 | 4.67 | 5.60 | 6.52 | 8.35 | 10.18 | 12.89 | 17.35 | 21.74 | 26.05 | 30.29 | |||
| Φ | 70 | 6.22 | 7.25 | 9.29 | 11.32 | 14.36 | 19.34 | 24.25 | 29.09 | 33.85 | ||||
| Φ | 76 | 6.76 | 7.88 | 10.10 | 12.31 | 15.61 | 21.04 | 26.40 | 31.69 | 36.90 | 42.03 | |||
| Φ | 80 | 7.12 | 8.30 | 10.64 | 12.97 | 16.45 | 22.18 | 27.84 | 33.42 | 38.93 | 44.36 | |||
| Φ | 85 | 7.57 | 8.82 | 11.31 | 13.79 | 17.49 | 23.60 | 29.63 | 35.59 | 41.47 | 47.28 | |||
| Φ | 88.9 | 7.92 | 9.23 | 11.84 | 14.43 | 18.31 | 24.71 | 31.03 | 37.28 | 43.45 | 49.55 | |||
| Φ | 101.6 | 9.06 | 10.56 | 13.55 | 16.52 | 20.97 | 28.32 | 35.59 | 42.78 | 49.91 | 56.96 | |||
| Φ | 108 | 11.23 | 14.41 | 17.58 | 22.31 | 30.13 | 37.88 | 45.56 | 53.16 | 60.69 | ||||
| Φ | 114 | 11.86 | 15.21 | 18.56 | 23.56 | 31.84 | 40.04 | 48.16 | 56.21 | 64.18 | ||||
| Φ | 127 | 16.96 | 20.70 | 26.28 | 35.53 | 44.70 | 53.80 | 62.82 | 71.76 | |||||
| Φ | 133 | 17.77 | 21.69 | 27.54 | 37.23 | 46.85 | 56.40 | 65.87 | 75.26 | |||||
| Φ | 141 | 18.85 | 23.00 | 29.21 | 39.51 | 49.72 | 59.86 | 69.93 | 79.92 | |||||
| Φ | 159 | 25.96 | 32.98 | 44.62 | 56.18 | 67.67 | 79.08 | 90.42 | ||||||
| Φ | 168 | 34.86 | 47.17 | 59.41 | 71.57 | 83.65 | 95.66 | |||||||
| Φ | 219 | 45.54 | 61.66 | 77.70 | 93.68 | 109.57 | 125.39 | |||||||
| Standard | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | |
| Actual | 0.32 | 0.40 | 0.50 | 0.60 | 0.70 | 0.90 | 1.10 | 1.40 | 1.90 | 2.40 | 2.90 | 3.40 | 3.90 | |
Our Service For You
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.

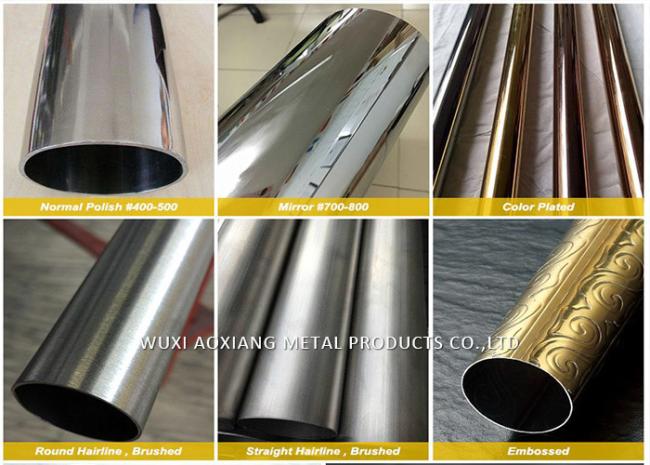

Finish Processing of Sanitary Pipe 201 304 316
