ASTM 309S Cold Rolled Stainless Steel Sheet With 2B / BA Finish H2S Resistance
ASTM 309S Cold Rolled Stainless Steel Sheet With 2B / BA Finish
309S stainless steel is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high-temperature strength, and creep resistance. The lower nickel content of Stainless Steel 309, compared to Stainless Steel 310, improves its resistance to hydrogen sulfide (H2S) attack at high temperatures.Stainless Steel 309S is used for its high-temperature oxidation resistance and/or resistance to H2S attack for applications such as furnace parts, firebox sheets, high-temperature containers, catalytic converters, and exhaust systems.
| Specification | Grade | Chemical Composition(Wt%) | ||||||
| C | Mn | P | Si | Ni | S | Cr | ||
| GB/T1220-1992 | 309S | ≤0.08 | ≤2.00 | ≤0.045 | ≤1.00 | 12.0-15.0 | ≤0.030 | 22.0-24.0 |
| Specification | Grade | Mechanical Property | |||
|
Y.S (N/mm2) |
T.S (N/mm2) |
EL (%) |
RE (%) |
||
| GB/T1220-1992 | 309S | ≥205 | ≥515 | ≥40 | ≥50 |

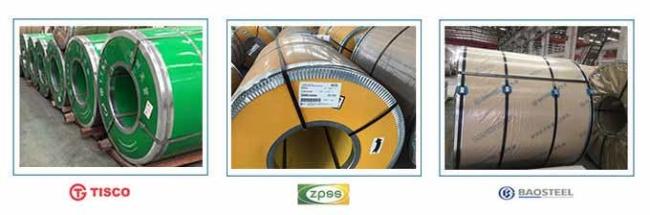

| Cold Rolled Stainless Steel (mm) | ||||
| Origin | Grade | Surface | Thickness | Width |
| TISCO | 304/316/321/310/430 | 2B | 0.28—6.0 | 1000—2000 |
| BAOXIN | 304/316/321/310/430 | 2B | 0.25—3.0 | 1000—1219 |
| POSCO(Pohang) | 304/316/321/310/430 | 2B | 0.28—5.0 | 1000—1500 |
| JISCO | 304/316/321/310 | 2B | 0.30—3.0 | 1000—1500 |
| TSINGSHAN | 304/430 | 2B/BA | 0.28—3.0 | 1000—1219 |
| Hot Rolled Stainless Steel (mm) | ||||
| Origin | Grade | Surface | Thickness | Width |
| TISCO | 304/316/321/310/430 | NO.1 | 3.0—16.0 | 1000—2000 |
| POSCO(Pohang) | 304/316/321/310/430 | NO.1 | 3.0—10.0 | 1219—1550 |
| JISCO | 304/316/321/310 | NO.1 | 4.0—10.0 | 1219—1500 |
Application
Be extensively applied to architectural decoration, such as elevator decoration, luxurious doors, outdoor projects, wall decoration, advertisement nameplates, sanitary ware, ceiling, corridor, hotel hall, shop facade.Kitchenware, food industry, electronic industry, medical equipment, etc.
FAQ
Q1: Can you send sample before order ?
A : Yes, we can send a small sample for your confirmation.
Q2 : What is your delivery time?
A : Normally ,3-7days after receiving payment ; if big order ,15days after receiving payment.
Q3: How about the packing of goods?
A: There are 2 kinds of packing:
1.Bubble film . If full container,we advise to use it as it can save more space&load more goods.
2.Bubble film + Wooden frame. This is the standard export packing for goods with glass.
Q4: What are your payment terms?
A: Our payment terms is T/T30% deposit,the remaining balance should be paid before container , but if you want others such as Western Union, we also can accept.
