SUS JIS EN Cold Rolled Stainless Steel Sheet / Cold Roll Steel Plate
400 Series 409L 2B Cold Rolled Stee Sheet 1.5mm Metal Bright Used Exhaust System
Product Display
|
|
ASTM, AISI, SUS, JIS, EN, DIN, GB, ASME, ETC |
|
|
446, 430, 409, 904L,409L ETC |
|
|
SGS, BV, IQI, TUV, ISO, ETC |
|
|
|
|
|

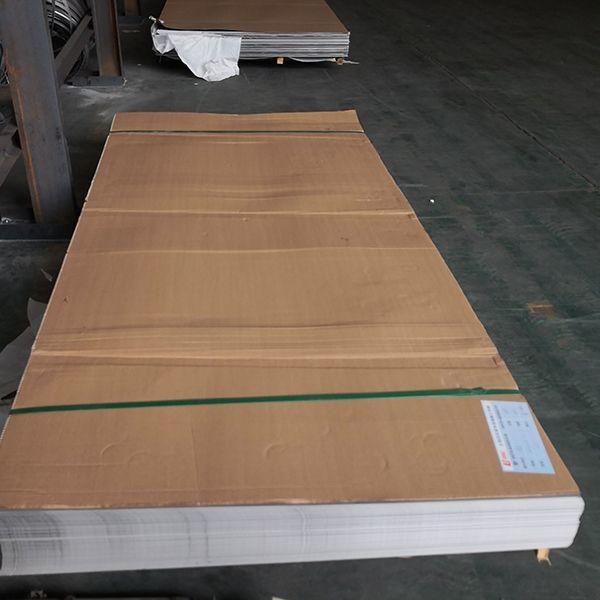

Standard export package, suit for all kind of transport, or as required. |
Alloy 409 is a general purpose, chromium, titanium stabilized, ferritic stainless steel whose primary application is automotive exhaust systems. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost. Alloy 409 resists corrosion strongly compared to carbon steel and is used as an alternative to carbon steel in mildly challenging environments where its high resistance to corrosion and high temperature oxidation gives an advantage. It is commonly used in applications where appearance is a secondary quality to mechanical properties and corrosion resistance.
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
| 409L |
min. max. |
- 0.08 |
- 1.0 |
- 1.0 |
- 0.045 |
- 0.03 |
10.5~11.75 |
- 0.5 |
6C~0.75 |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| JIS | SUS409L | ≥175 | ≥360 | ≥25 | ≤80 | 0.46 | 200 |
| JIS | SUS429 | ≥205 | ≥450 | ≥22 | ≤88 | 220 | |
| JIS | SUS 436L | ≥245 | ≥410 | ≥20 | ≤96 | 0.46 | 220 |
| ASTM | S43932 | ≥205 | ≥415 | ≥22 | ≤89 | 0.46 | 220 |
| EN | 1.4509 | ≥250 | 430-630 | ≥25 | ≤80 | 0.46 | 220 |
Our Services
1. Sample order is welcomed;
2. Customized packing and customer's logo (OEM Service) are accepted;
3. Various transport ways :by sea, by air & freight company( DHL, FEDEX, UPS, TNT, EMS...)
4. Factory directly sale :We can produce various stainless steel Products according to customer's
requirements.
5. Your inquiry related to our product & price will be replied within 24 hours
6. Good after-sale service offered, please send us feedbacks
