Food Grade 304 Stainless Steel Sheet Brush Finish For Kitchen Utensils

304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301

1. Products Details

2. Chemical Properties:

C: ≤ 0.08 ,Si: ≤1.0 ,Mn: ≤2.0 ,Cr: 18.0～20.0 ,Ni: 8.0～10.0,S: ≤0.03 ,P: ≤0.045

Pysical properties:

Tensile strength σb (MPa): ≥ 520
Conditions yield strength :σ0.2 (MPa) ≥ 205
Elongation δ5 (%) ≥40
Section shrinkage ψ (%) ≥ 60
Hardness: ≤ 187HB; ≤ 90HRB; ≤ 200HV
Melting point (℃) : 1398 ~ 1454

3. Applications:

Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks

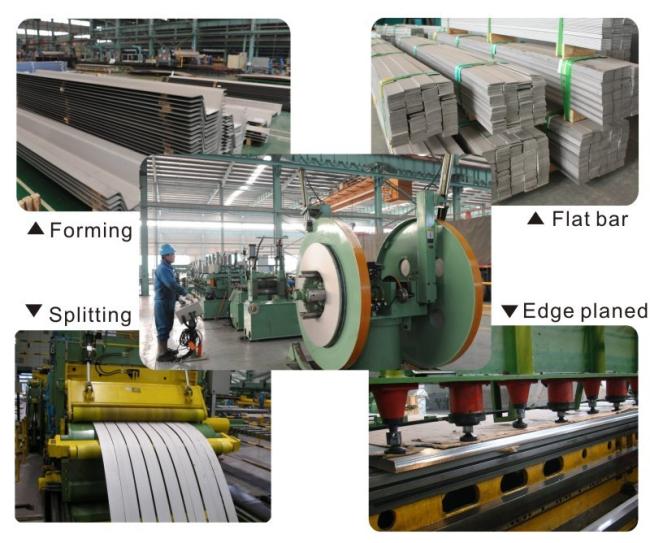

4. Processing

Mostly Stainless steel sheet cut from stainless steel coil ,but according to the  thickness.If thickness is very thick ,it will be sheets  directly.Below are some steps of  sheets process.

1.GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2.POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3.PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4.ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5.EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....

5. Package


Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
