Cold Rolled 2205 Duplex Stainless Steel Plate / 2205 Stainless Steel Sheet
Cold Rolled 2205 Duplex Stainless Steel Plate / 2205 Stainless Steel Sheet
2205 Duplex Stainless Steel Plate Details
2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments.
2205 is not suggested for operating temperatures up to 600°F.
2205 Duplex Stainless Steel Plate Standards
ASTM/ASME ................A240 UNS S32205/S31803
EURONORM ................1.4462 X2CrNiMoN 22.5.3
AFNOR..........................Z3 CrNi 22.05 AZ
DIN ..............................W.Nr 1.4462
2205 Duplex Stainless Steel Plate Chemistry
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe | |
| MIN | 4.5 | 22.0 | 3.0 | - | - | - | 0.14 | - | - | - |
| MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
2205 Duplex Stainless Steel Plate Mechanical Properties
| Temperature, °F | 70 | 212 | 392 | 572 |
| Coefficient* of Thermal Expansion, in/in°F x 10-6 | - | 8 | 8 | 8 |
| Thermal Conductivity Btu • ft/ft2 • hr • °F |
8 | 9 | 10 | 11 |
| Modulus of Elasticity, Dynamic psi x 106 | 28 | 26 | 25 | 24 |
* 70°F to indicated temperature.
Mechanical Properties
Minimum Specified Properties, ASTM A 240
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 65 |
| Elongation, % | 25 |
| Hardness MAX, Brinell | 290 |
Minimum Elevated Tensile Properties, Plate
| Temperature, °F | 212 | 302 | 392 | 482 |
| Ultimate Tensile Strength, ksi | 86 | 83 | 80 | 78 |
| 0.2% Yield Strength, ksi | 52 | 49 | 46 | 44 |
Corrosion Resistance
| PREn | Critical Pitting Temperature, CPT | |
| 2205 | 34 | 130°F |
| 316L | 24 | 62°F |
2205 Duplex Stainless Steel Plate Applications
1). Chemical processing, transport and storage – pressure vessels, tanks, piping, and heat exchangers
2). Oil and gas exploration and processing equipment – piping, tubing, and heat exchangers
3). Marine and other high chloride environments
4). Effluent scrubbing systems
2205 Duplex Stainless Steel Plate Packaging

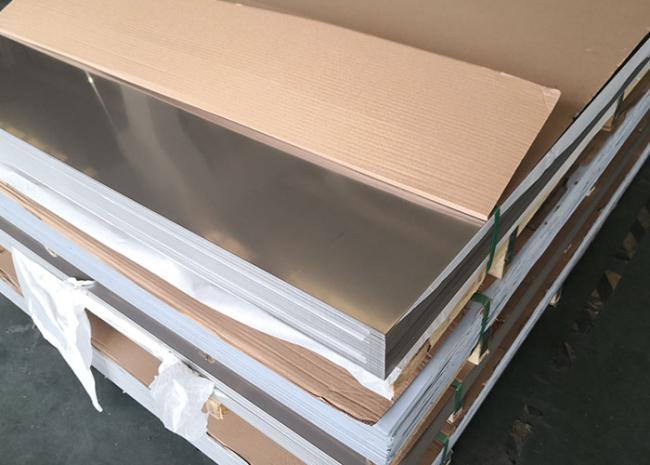

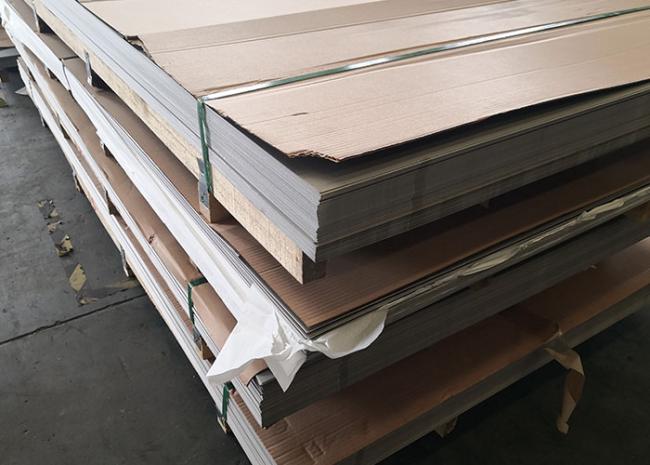

We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged accordingto standard specification or customer's instructions. Special packing is available as per customer's requirement.
