304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness
304 316l Welded Stainless Steel Pipe , SS Welded Pipe 0.16-3.0mm Thickness
Welded Stainless Steel Pipe Application
Construction / machinery / stamping parts / A variety of tools / band saw material / saw blade etc.
Welded Stainless Steel Pipe Parameters
| Material |
304:0cr18ni9, 0cr17ni8 201:1cr17mn6ni5n,1cr13mn9ni1n 316:0cr17ni12 or as customer’s request |
| Size(round pipe) |
9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73, 76.2, 88.9, 101.6, 114.3, 127, 133, 159, 168, 219 mm or customized |
| Size (square pipe) |
10×10,12×12,18×18,23×23,38×38,50×50,70×70,100×100,20×10,23×10,24×12,25×13,36×23, 40×20,50×20,60×15,75×45,80×60,95×45,100×60,150×100 mm or customized |
| Size (oval pipe) | 30×15,80×40 mm or customized |
| Thickness | 0.24-3 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic,automatic shape, polished |
| Finishing |
A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum E : HL brushed & mirror (two kinds of finishing for one pipe) |
| Chemical Composition | |||||||
| Material | C | Si | Mn | P | S | Cr | Ni |
| 201 | ≤0.12 | ≤0.75 | 9.5-12.5 | ≤0.045 | ≤0.03 | 13-16 | 0.8-1.5 |
| 304 | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 18-19 | 8-10 |
| 316 | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.035 | ≤0.03 | 10-14 | 16.0-18.5 |
| 430 | ≤0.12 | ≤0.75 | ≤2.0 | ≤0.04 | ≤0.03 | 16-18 | ≤0.6 |

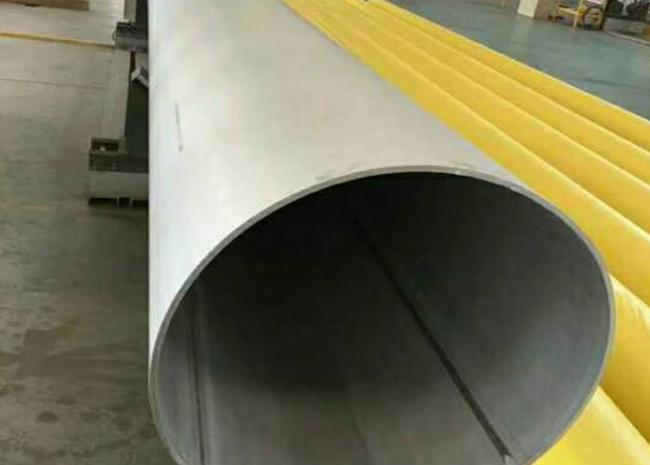

Welded Stainless Steel Pipe Details
Welded Stainless Steel Pipe usage
