PVD Coating 4'x8' 8k Finish 316 Stainless Steel Sheet With High Standard
Price:
Negotiation
MOQ:
1 ton according to products
Delivery Time:
5-10 working days
Brand:
BAOSTEEL , TISCO ,HONGWANG ,LISCO
Product Description
PVD Coating 4'x8' 8k Finish 316 Stainless Steel Sheet With High Standard
WUXI XINFITIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil,
plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.
|
Item
|
Description
|
|
Product Name:
|
pvd coating 4'x8' 8k finish 316 stainless steel sheet with high standard
|
|
Material:
|
stainless steel
|
|
Thickness
|
0.3-6mm
|
|
Standard
|
JIS 3302 / ASTM A653 / EN10143
|
|
Width:
|
1000mm/1219mm/1220mm/1500mm/1800mm/2000mm or as customer's require
|
|
Length:
|
as your requirements
|
|
Garde:
|
201 202 301 302 305 304h 304 304l 316 316l 309s 310s 317 321 410 430
|
|
Surface treatment
|
BA,No.4, HL, 2B, No.1etc
|
|
Brand:
|
Tisco,Baosteel,Lisco,zpss.etc
|
|
Certification:
|
ISO,SGS,BV,ROHS,IBR etc.
|
|
Application
|
Construction,Machine Building,Container Manufacturing,Bridges etc.
|
|
Advantage
|
Advanced production technology/Excellent r&d management team/Sophisticated production equipment/Constant pursuit of high-quality goods
|
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS310S | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
316Ti: Mainly used for industrial components.

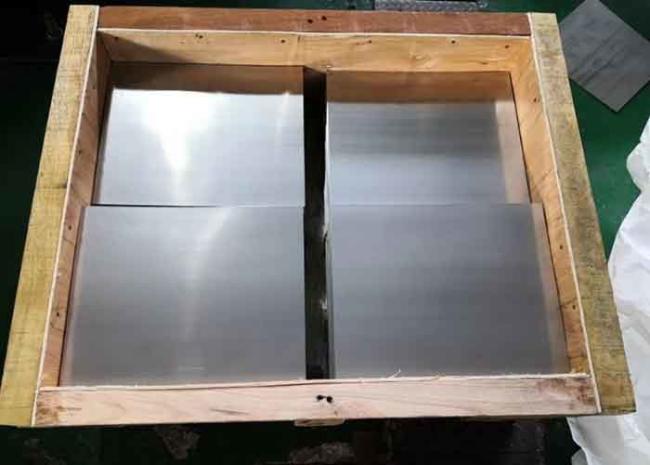

Packing Details : Standard export package with Metal pallet + Water proof paper + Angle bar protection + Steel belt;
Delivery Details : 7 days after confirming the order
