6000mm Length A554 Seamless Stainless Steel Dairy Tube 8K Mirror Surface
A554 304 SS 316 Stainless Steel Tube / ASTM 304 310 stainless steel Pipe
Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube.
Specifications
|
Name
|
stainless steel pipe
|
|
Surface Finish
|
4K mirror/8K mirror
|
|
Technique
|
Seamless/Welded
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
|
|
Steel Grade
|
200 series: 201 202
300 series: 304 304L 316 316L 310 310S 321 |
|
Tolerance
|
+/-0.01-1.0%
|
|
Length
|
6000mm or customized
|
|
Thickness
|
0.4-30mm or customized
|
|
Service
|
OEM, customized processing service
|
|
Processing Type
|
Cutting,bending,stamping,welding
|
|
Cutting Type
|
Laser cutting;water-jet cutting;flame cutting
|
|
Export packing
|
Standard export seaworthy package
|
|
Delivery time
|
15-20 days after receiving deposit
|
| Chemical Composition | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |

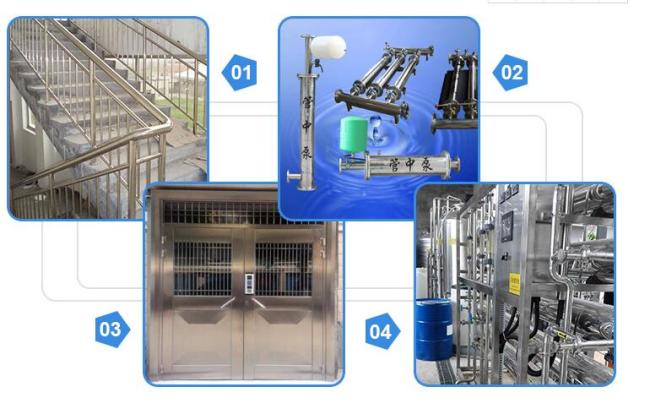

Application:
1. Production equipment for seawater, such as chemistry, dye, paper making, oxalic acid and fertilizer;
2. Food equipment, general chemical equipment and nuclear energy industrial equipment components are widely used.
3. It is suitable for deep drawing parts, acid transportation pipes, containers, etc. The steel type is also used in household appliances of vehicle and automobile parts box.
4. It is the steel with the most production and consumption in austenitic stainless steel, used in the production of thin-walled parts, acid transport pipelines and structural parts, etc.
5. It is often used as core material for welding chromium-nickel stainless steel and stainless steel, non-magnetic parts and parts used under low temperature.
6. Images, equipment in coastal areas, ropes, CD bars, bolts, nuts, etc.
Q: What are your company's main products? A: We are professional in stainless steel sheets, pipes, coils and bars etc. We can also provide a wide range of steel products.
Q: How long is your delivery time? A: For stock, we can deliver goods within 7 days. For customized sizes, it usually takes 7-20 days.
Q: Do you provide samples ? is it free? A: We can provide samples for free, but freight will be paid by customers.
Q: Do you have stock for regular specification? A: We have enough stock and can deliver in short time for these sizes.
Q: How can you guarantee the quality? A: We can take pictures or videos as your request, or you can entrust a thirty party to inspect.
Q: Can we have a trial order with small quantity? A: Yes, you can. We welcome any orders, even a sample.
