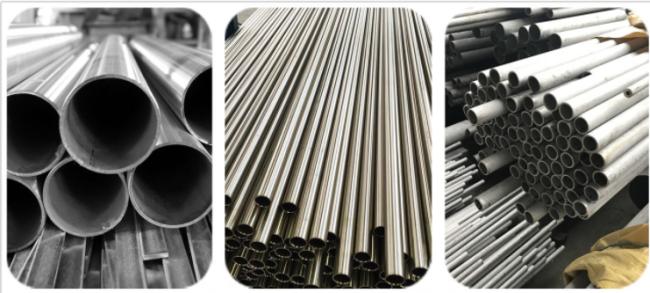

6000mm 8K Mirror 304 316 Sanitary Stainless Steel Tubing
China Manufacturer Sanitary 304 316 Stainless Steel SS Pipe Tube Price
China Manufacturer Sanitary 304 316 Stainless Steel SS Pipe Tube Price
Features:
2. We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
Specifications
|
Name
|
stainless steel pipe
|
|
Surface Finish
|
4K mirror/8K mirror
|
|
Technique
|
Seamless/Welded
|
|
Standard
|
AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
|
|
Steel Grade
|
200 series: 201 202
300 series: 304 304L 316 316L 310 310S 321 |
|
Tolerance
|
+/-0.01-1.0%
|
|
Length
|
6000mm or customized
|
|
Thickness
|
0.4-30mm or customized
|
|
Service
|
OEM, customized processing service
|
|
Processing Type
|
Cutting,bending,stamping,welding
|
|
Cutting Type
|
Laser cutting;water-jet cutting;flame cutting
|
|
Export packing
|
Standard export seaworthy package
|
|
Delivery time
|
15-20 days after receiving deposit
|
Chemical Composition of Stainless Steel Pipe
| Chemical Composition | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.00 | 2.00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |
Application:
1. Production equipment for seawater, such as chemistry, dye, paper making, oxalic acid and fertilizer;
2. Food equipment, general chemical equipment and nuclear energy industrial equipment components are widely used.
3. It is suitable for deep drawing parts, acid transportation pipes, containers, etc. The steel type is also used in household appliances of vehicle and automobile parts box.
4. It is the steel with the most production and consumption in austenitic stainless steel, used in the production of thin-walled parts, acid transport pipelines and structural parts, etc.
5. It is often used as core material for welding chromium-nickel stainless steel and stainless steel, non-magnetic parts and parts used under low temperature.
6. Images, equipment in coastal areas, ropes, CD bars, bolts, nuts, etc.
