Custom Mirror Stainless Steel Welded Tube 316L SS Round Pipes stainless steel pipe astm a312 tp304
Factory wholesale custom Mirror Welded 304 316L 201 stainless steel pipes
Stainless steel pipe is a hollow, long, round steel or square rectangle materialthat is widely used in industrial transportation pipelines andmechanicalcal structural components.In addition, when the bending and torsional strength is the same,the weight od stainless steel tube is light, so stainless steel pipe is also widely used in manufacturingmechanical parts and engineering structures.
| Product | Factory AISI ASTM 201 202 304L 304 310 321 316 316L 430 sus 904 stainless steel pipe/ tubing | |
| Outside Diameter: | Wall Thickness: | |
| Size | 20*450mm | 15-40mm |
| Tolerance | +/-1% | +/-6% |
| Length | 1.00-12.00M or according to the client’s requirement | |
| Brand Name | XINFUTIAN | |
| Material | square /round tube | |
| 201 202 304L 304 310 321 316 316L 430 sus 904 | ||
| Standard | ASTM/ BS/ GB/DIN and so on | |
| Surface | oiled or painted | |
| Usage | For low pressure liquid delivery such as water and gas. | |
| For construction. | ||
| For structure | ||
| Payment | T/T or L/C | |
| Trade Term | FOB/CNF/CIF | |
| Delivery Time | Within 15 days | |
| Package | 1.Large OD: in bulk | |
| 2,Small OD: Packed by steel strips, in bundle | ||
| 3,As per to clients | ||
Packing Information
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet,
then put in container) or customized.
Products are packed and labeled according to the regulations and customer's request.
Grate car is taken to avoid any damage which might otherwise be caused during storage or transportation.

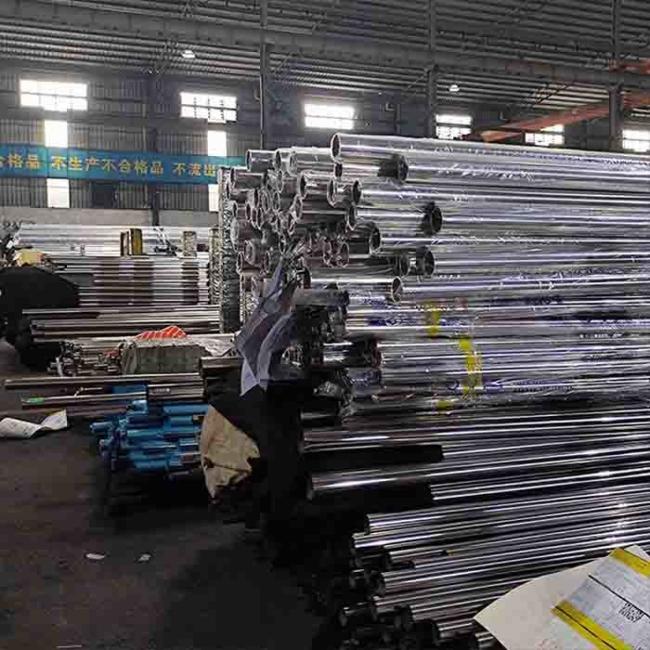

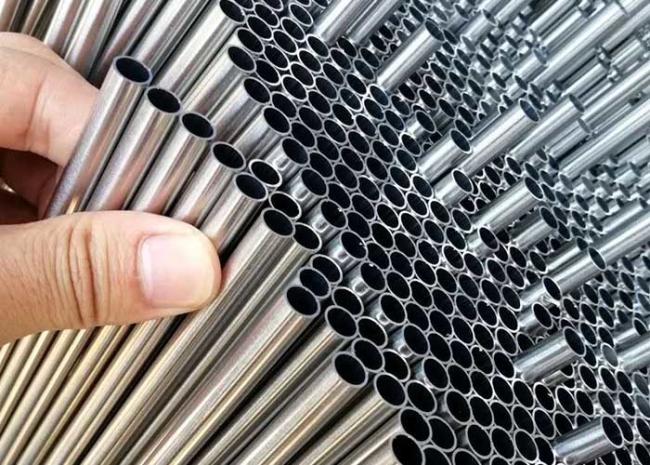

Stainless Steel Welded Tube Pictures
| No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
