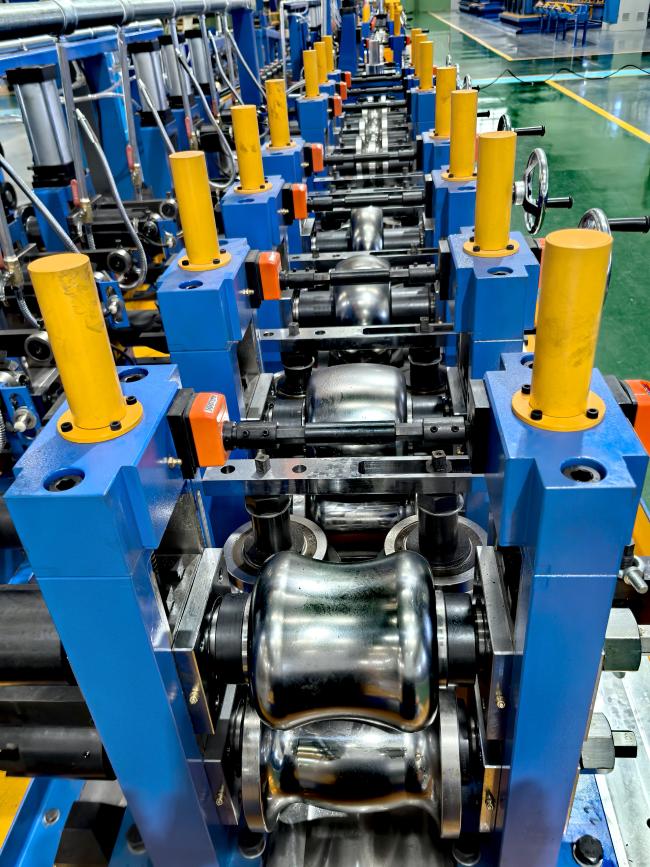

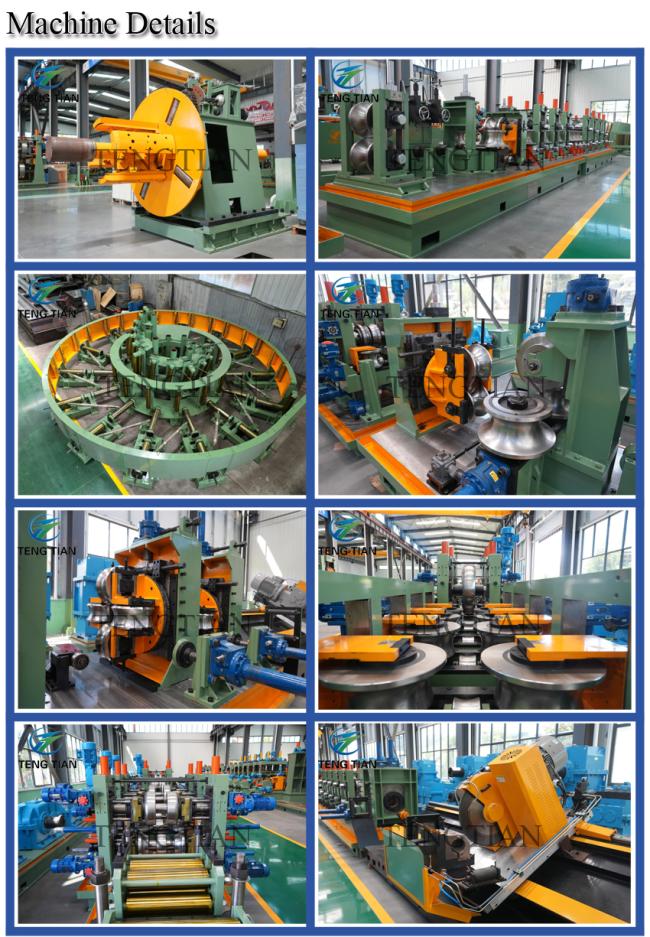

Precision Tube Mill ERW Pipe Making Machine
| Attribute | Value |
|---|---|
| Adjustment Type | By turbine worm |
| Cutting Saw | Cold Saw & Friction Saw Cutting |
| Pipe Shape | Round, square, rectangular |
| Welding Type | High Frequency Welding |

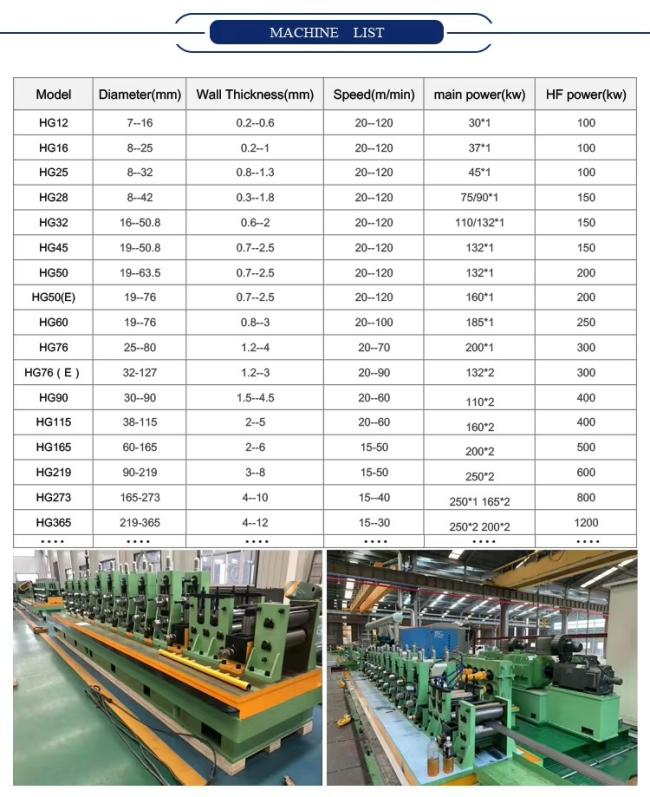

| Model | Diameter Range | Pipe Thickness | Line Speed (m/min) |
|---|---|---|---|
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
- Material: Carbon steel, alloy steel
- Mechanical Properties: σB≤520mpa; σS≤340mpa
- Coil ID: φ470-φ510mm
- Coil OD: φ900-φ1800mm
- Coil Weight: ≤3 tons
- Width: 40-200mm
- Installed Capacity: approx. 350KW
- Compressed Air Capacity: 2m³/min 4-7Kg/cm²
- Water Consumption: 20tons/hr
- High Frequency Water Consumption: 30tons/hr
- Workshop Requirements: Height (5M min from crane to floor) × Width (8M) × Length (50M min). Two sets of 5 tons overhead crane recommended.
- On-site engineer dispatch for machine installation and operator training
- Warranty: One year quality guarantee with lifetime repair support
- Free repair parts during warranty period (excluding human error cases)
- Cost-only spare parts after warranty period
- Pre-sale services including workshop design and production output planning
- After-sale services including installation, training, and technical support
- Option for extended engineer support (several months to 1 year) for production optimization
- Complete project design services for stainless steel/carbon steel pipe production
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
