20-50m/min Square Tube Mill for 60X60-120x120mm

Product Specifications

Attribute	Value
Product Certification	ISO9001
Applicable Materials	Q235
Coil Weight	≤2.5T
Product Material	Steel
Accumulator	Horizontal Accumulator
Production Speed	20-50 m/min
Pipe Wall Thickness	0.7-4mm
Thickness Range	0.7-4.0mm
Steel Strip Thickness	0.7-4.0 mm
Cutting	Cold Saw
Pipe Material	Carbon Steel
Useful Life	30 years for Steel Tube Mill
Energy Supply Pipe	1-10m/min
Molding Speed	20-50m/min
Cutting Method	Cold Saw or Hot Saw

Detailed Product Description

Feature	Manual Or Automatic
Other Pipe	Round, Square And Rectangular Pipe
Max Size	60X60-120x120Mm
Thickness	0.5 - 4.0 Mm
Length	6 M - 12 M
Rollers	Include
Warranty	One Year

Main Parameters and Specifications

Material Specifications

Material	low carbon steel galvanize and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	240 - 480 mm
Strip thickness	0.5 - 4.0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	≤ 3T



Welded Pipe Specification

Pipe Diameter	60X60 mm-120x120mm
Pipe thickness	1.0 - 3.5 mm
Finish pipe length	6 m
Cut length accuracy	± 2 mm
Forming speed	40 - 100 m/min

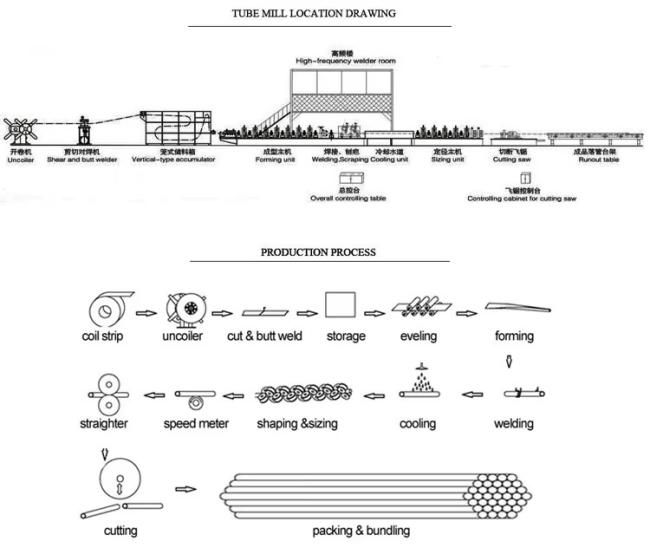

Workshop Requirements

100 m X 8 m, at least 5m high

Note: You can modify it according to the actual length of the workshop

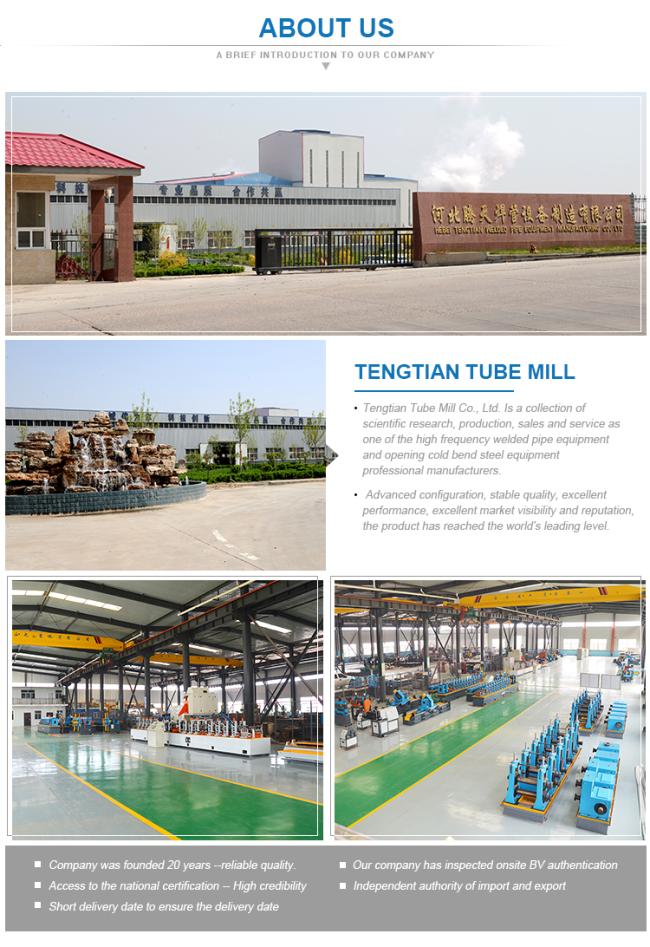

Our Workshop

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
