ERW High Speed Straight Seam Welded Pipe Mill
ERW High Speed Straight Seam Welded Pipe Mill
1. Introduction
1.LH1250 High precision high speed high quality Spiral Weld Pipe Machine is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder.
Large diameter pipes can be produced with narrow steel strip.
2. Function
For liquid delivery: water supply& drainage;
For gas delivery: coal gas, steam and LPG;
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.

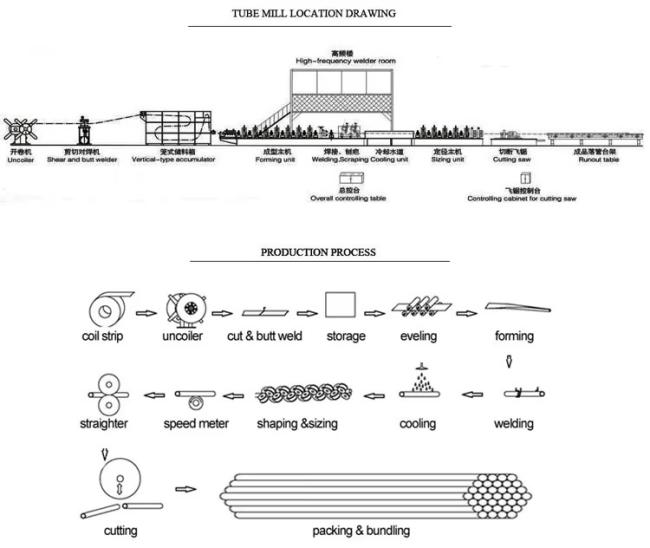

3. Process flow
Feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection

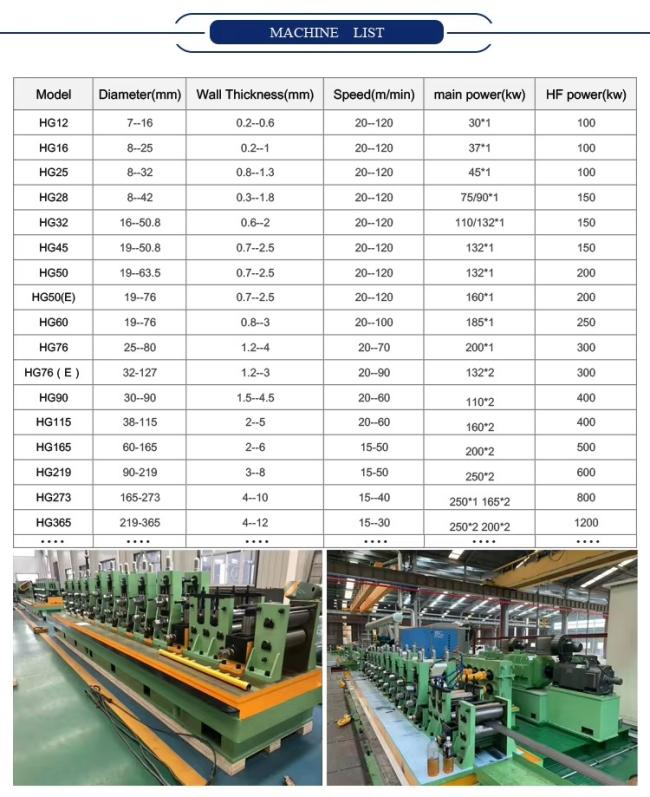

LH1250 High precision high speed high quality Spiral Weld Pipe Machine
| Series | Min Pipe O.D. | Max Pipe O.D. | Min Thickness | Max Thickness | Coil width | Max Production capacity | Area |
| mm | mm | mm | mm | mm | ton/year | m2 | |
| LH600 | 219 - 508 | 325 - 820 | 2 - 4 | 4 - 10 | 400 - 600 | 8000 - 12000 | 20×96 |
| LH800 | 219 - 508 | 406 - 1220 | 2 - 4 | 4 - 12 | 400 - 800 | 9000 - 17000 | 20×96 |
| LH1050 | 219 - 508 | 630 - 1620 | 2 - 4 | 4 - 14 | 450 - 1050 | 16000 - 23000 | 24×108 |
| LH1250 | 406 - 610 | 820 - 1620 | 3 - 6 | 8 - 18 | 500 - 1250 | 26000 - 35000 | 24×108 |
| LH1550 | 406 - 610 | 1420 - 3200+ | 3 - 6 | 12 - 25.4+ | 500 - 1550 | 36000 - 76000 | 26×125 |
| LH2000 | 406 - 610 | 2020 - 3200+ | 4 - 6 | 20 - 25.4+ | 1000 - 2000 | 77000 - 93000 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
