Carbon Steel ERW Pipe Mill for 32-89mm Tubes
| Attribute | Value |
|---|---|
| Product Name | Steel ERW Straight Seam Pipe Production Line / Welded Tube Mill |
| Raw Material | Carbon steel |
| Shear And Welder | Yes |
| Pipe End Shape | Plain End, Beveled End, Threaded End |
| Tube Thickness | 5.0-10.0mm |
| Cooling Method | Water Cooling |
| Voltage | 380V/220V |
- Type: Pipe Production Line
- Condition: New
- Pipe Material: Carbon Steel
- Application: Drain Pipe
- Production Capacity: 100m/min
- Place of Origin: Hebei, China (Mainland)
- Brand Name: ZTZG, ZTZG Zhongtai
- Model Number: ERW89
- Power: 450kw
- Dimension: 75x8m
- Weight: 28t
- Certification: ISO9001:2008
- Warranty: 1 Year
- Pipe OD: 32mm-89mm
- Thickness: 1mm-4.5mm
- Square tube: 25mm×25mm to 70mm×70mm
- Length: 6-12m (±3mm tolerance)
- Material: Carbon steel coil (GB Q195-Q345), Alloy steel coil, API 5L X42-X80
- Production Speed: 20-60m/min
- Direction: Configurable left-to-right or right-to-left operation

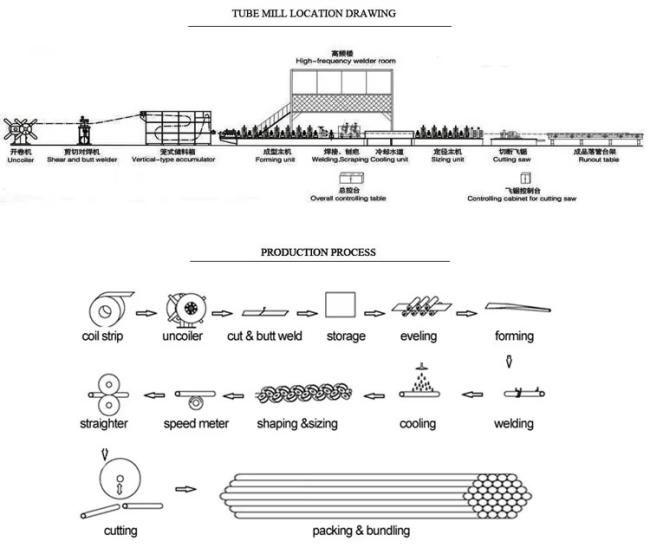

- Uncoiling
- Shear & butt welding
- Cage looping (Accumulating)
- Forming
- HF welding
- Removing inside & outside bead
- Cooling
- Sizing
- Cutting off
- Conveying
- Downloading
- Packing
- Warehousing
- Double-reel Mechanical Uncoiler
- Shear & Butt Welder
- Cage Loop (Accumulator)
- Tube mill
- Solid State H.F. welder
- NC Flying Saw
- Output Rollway
- Rollers
- On-site engineer support for installation and operator training
- One year quality guarantee with lifetime repair support
- Comprehensive pre-sale and after-sale services including workshop design and production output planning
- Option for extended engineer support (several months to 1 year) to optimize production
- Complete project design services for stainless steel and carbon steel pipe production
- Full responsibility for loading and shipping arrangements
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
