100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness
100mm-254mm Diameter CRC Erw Tube Mill Machine 4.0-12.7mm Thickness

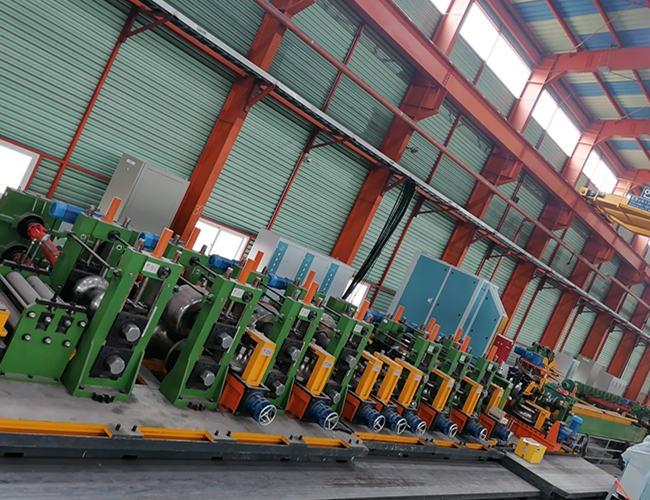

Big Size Erw Tube Mill Machine 100-254mm Diameter 4.0-12.7mm Thickness is used to manufacture round/square welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.
Round pipe size: 100--254mm Pipe thickness: 4.0-12.7mm
square tube size:80x80-200x200mm, tube thickness:4.0-12mm
Main Parameters and Specifications:
Material Specifications
- Conforming to the YB189-64 standard
- steel material: Q235/Q345
- Mechanical properties:σb≤380Mpa,σs≤275MPa
- strip width:320-800MM
- strip thickness:4.0-12.7MM
- I.D of Coils:Φ508mm
- O.D of Coils:φ1800mm
- Coil Weight:10TON
Welded Pipe Specification
- Round Pipe Diameter:Φ100～φ254mm
- square tube size:80X80-200X200MM
- pipe thickness:4.0-12.7MM
- Finish pipe length:6-12M
- Forming speed:10-40M/MIN
workshop require
8m wide, 120m long, at least 6m high from Ceiling Rails to Ground.
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

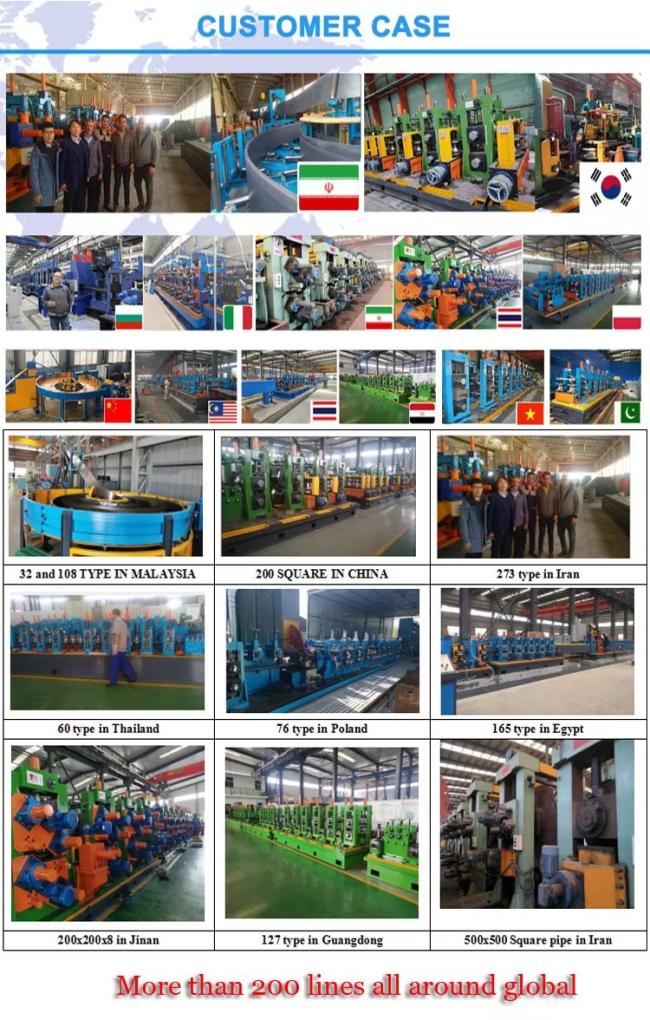

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
