Precision Tube Mill for Carbon Steel Furniture Pipes

Precision Tube Mill for Carbon Steel Furniture Pipes

Attribute	Value
Machine Name	Precision Tube Mill 60mm Welded Pipe Mill Carbon Steel For Furniture Pipe
Product	Square pipe and round pipe
Feature	PLC control
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	60mm
Thickness	3.5mm
Length	6-12m
Rollers	Included
Model	HG60

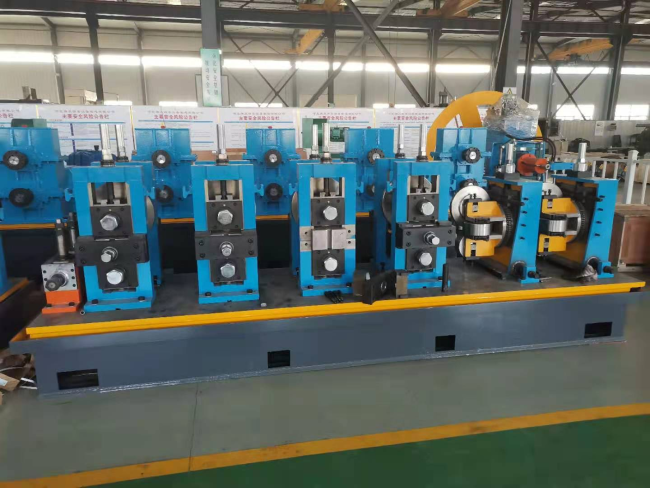

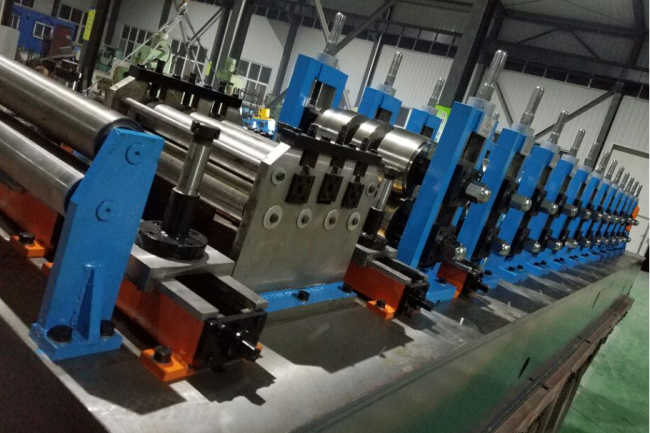

60mm Carbon Steel Pipe Precision Tube Mill for Furniture Pipe

This machine is designed to produce high-quality welded steel pipes, including round pipe, square pipe, and deformed pipe. Featuring advanced roll pass design, the production line manufactures welded steel pipes with excellent machining quality and high precision assembly.

Available Pipe Sizes

• Round pipe: φ17.1, φ21.3, φ26.9, φ33.7, φ42.4, φ48.3, φ60.3mm
• Square pipe: 15×15, 20×20, 25×25, 30×30, 40×30, 40×40, 50×50mm
• Rectangular pipe: 20×10, 30×10, 30×20, 40×20, 50×20, 50×30, 60×40mm
• Thickness: 1.35-3.5mm



Main Parameters and Specifications

Material Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	60-190mm
Strip Thickness	1.35-3.5mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤5T

Pipe Specification

Pipe Diameter	Round pipe: 20-60mm Square pipe: 30×30-50×50mm
Thickness	1.35-3.6mm
Length	6-12m
Pipe-cutting Precision	0-6mm
Forming Speed	Max 100m/min for 1mm thickness

Buyer-Supplied Requirements

• Workshop: 60×12m, H＞5m (crane to ground)
• Power: Approx. 2500KW 380V/60Hz/3phases
• Circulation Cooling Water (whole system): Flow: 30+30 CBM, Pool Volume: 40m³
• Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
• Cable: All cable outside of machine to be supplied by buyer after machine installation

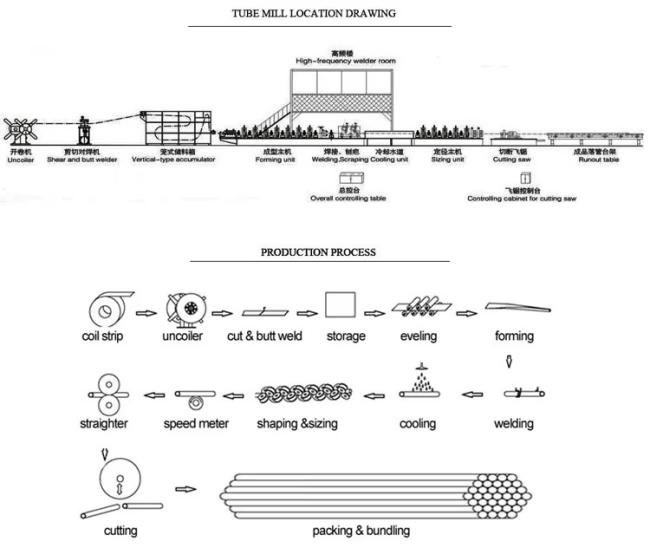

Working Process for Tube Mill Machine

1. Strip steel to coil
2. Uncoiler
3. End straightener
4. Flattener
5. Shear welder
6. Storage material unit
7. Forming, welding, cooling, accurate pipe diameter sizing
8. Accurate pipe length sizing, cutting
9. Inspection
10. Package

Our Facility





1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2.) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3.) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6.) We will be responsible for the loading and shipping

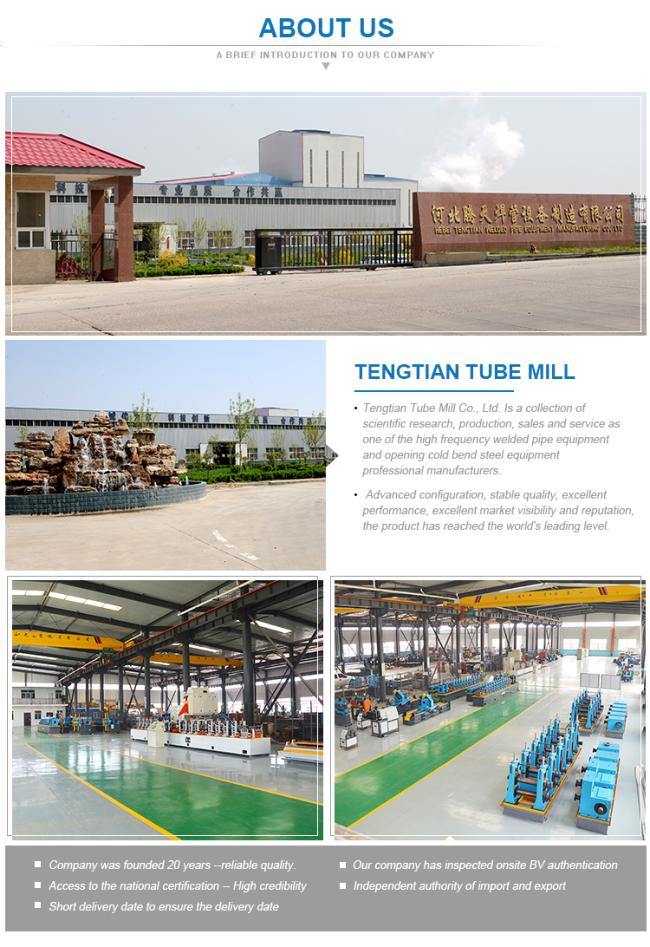

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
