Carbon Steel Tube Mill Machine 60-140mm Round Pipe
This Carbon Steel Round Pipe/Tube Mill Machine with CE ISO 9001 Certification is designed for manufacturing welded steel pipes. Incorporating advanced pipe-making technology from domestic and international sources, it produces tubes of various sizes and shapes with precision.
| Standard | Conforming to YB189-64 standard |
|---|---|
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical Properties | σb≤380Mpa, σs≤275MPa |
| Strip Width | 180-420mm |
| Strip Thickness | 2.0-6.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ2000mm |
| Coil Weight | ≤5T |
| Round Tube Size | 60-140mm |
|---|---|
| Pipe Thickness | 2.0-6.0mm |
| Finish Pipe Length | 4-8m |
| Cut Length Accuracy | ±2mm |
| Forming Speed | 20-80m/min |

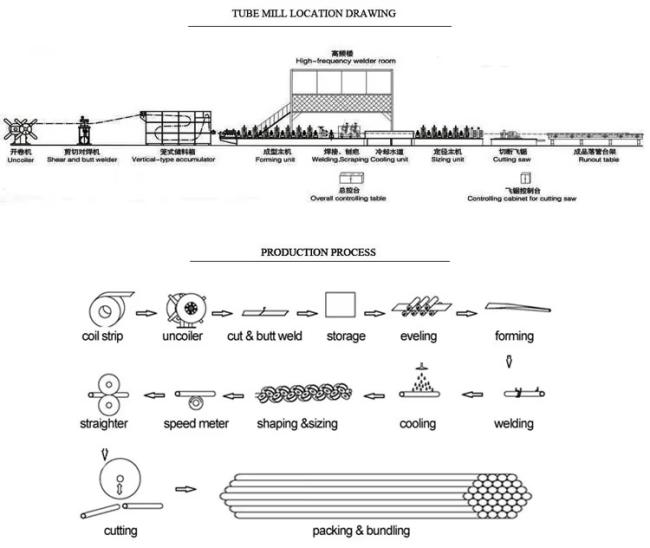

8m wide, 120m long, with at least 6m clearance from ceiling rails to ground.

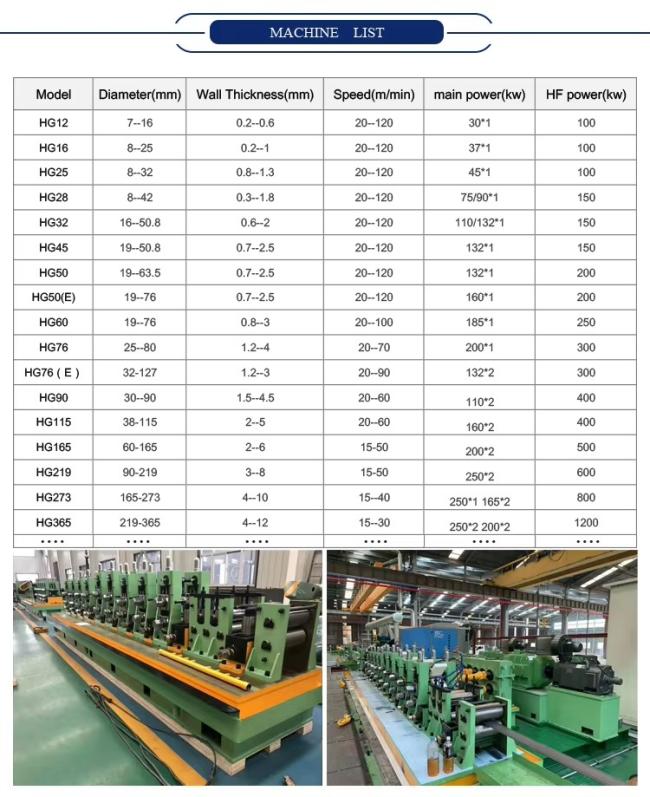

| Model | Diameter Range | Pipe Thickness | Line Speed (m/min) |
|---|---|---|---|
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
