1600mm Steel Slitting Machine
Price:
$100000 to $1 million
MOQ:
1 set
Delivery Time:
two month
Brand:
Tengtian
Product Description
1600mm Sheet Cutting Slitting Machine Welded Carbon Steel Stainless Steel Material

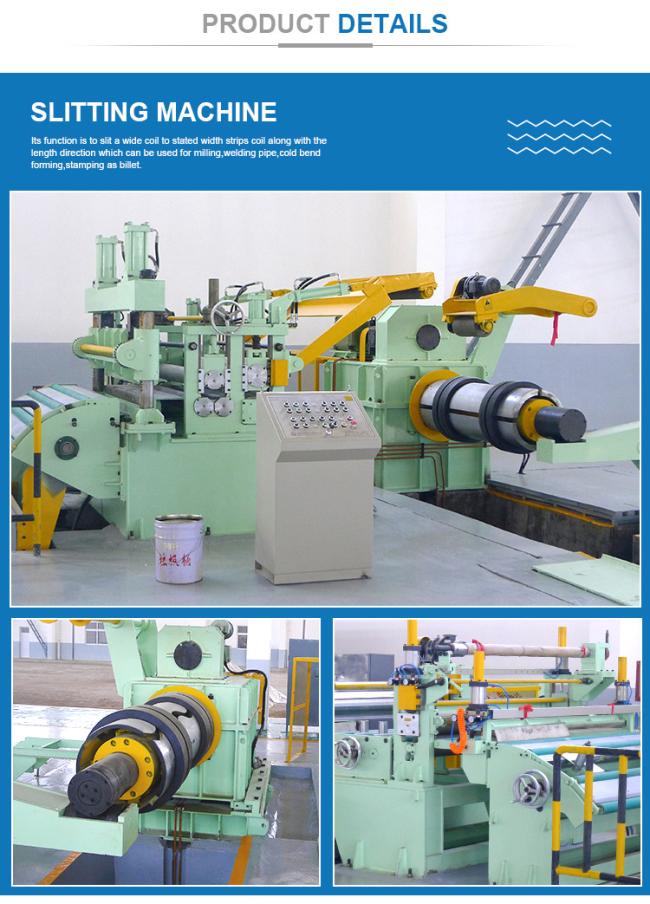

Slitting Line:
Its function is to slit a wide coil tp stated width stripa coil along with the length direction which can be used for milling, welding pipe, cold bend forming, stamping as billet
Product Process:
Loading coil car→Uncoiler→Straightener device→Pinch roll&leveler & hydraulic shearer →Loop pit →Side guide →Slitter →Transition platform & scrap winder →Loop pit →Tension station→Recoiler→Unloading coil car
The Basic Parameters:
| material | carbon steel,stainless steel,galvanized steel |
| material thickness | 0.5-4.0mm |
| material width | 900-1600mm |
| coil ID | Ø508/610MM |
| Coil OD | <2000mm |
| Coil weight | Max 24Ton |
Other Model Of Slitting Line
| Model | steel thickness | steel width | steel coil weight |
| 3*1600mm | 0.5-3.0mm | 900-1600mm | 30 Ton |
| 4*1600mm | 0.5-4.0mm | 900-1600mm | 30 Ton |
| 6*1600mm | 1-6mm | 900-1600mm | 30 Ton |
| 8*2000mm | 2-8mm | 900-2000mm | 35 Ton |
| 10*2200mm | 3-10mm | 900-2200mm | 35 Ton |
| 12*2200mm | 3-12mm | 900-2200mm | 35 Ton |
| 16*2500mm | 4-16mm | 900-2500mm | 35 Ton |
| 20*2500mm | 6-20mm | 900-2500mm | 35 Ton |
This model just for you reference,the product range and thickness is adjustable,we have ourselves engineer team,can design the machine according to the customer special require.
