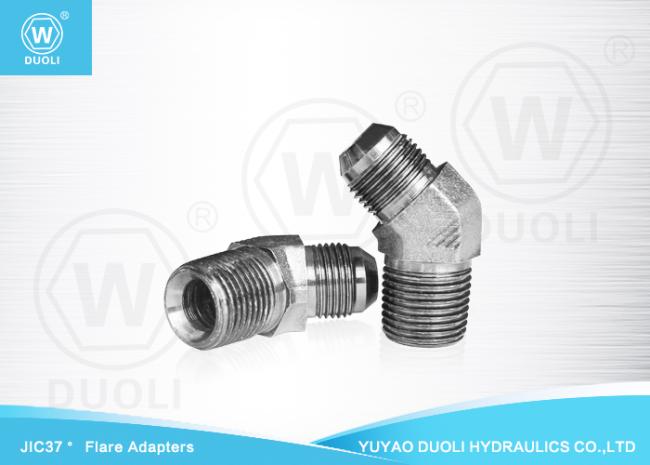

Steel Hydraulic JIC 37 Degree Flare Fittings With Bulkhead 45 Degree Elbow
45° Elbow JIC Male37° Cone and BSPT Male Hydraulic Flared Adaptor by carbon steel
Hydraulic joints are divided into two major categories: hose joints, hard pipe joints
Each of these two categories is divided into several categories:
1) hose connector divided into integrated hose connectors, extruded hose connectors, InteriorLocking
Hose fittings, detachable hose couplings, etc.
2) hard pipe joint is also called transition joint. It is divided into DIN card sleeve type and metric thread joint,
Inch screw thread joint, thread joint, flange, welding joint mining etc.
Hydraulic joints are widely used in military, energy, petrochemical, power, ship, automobile and rail transportation,
In the hydraulic pipeline system of construction machinery, mining, metallurgy, steel works, ocean engineering, etc.
| Name |
degree JIC to bspt male thread hydraulic adapters |
| Brand Name | Duoli |
| Material | Carbon Steel |
| Thread type | JIC/BSPT MALE |
| Technical | CNC Machines |
| Size | From 7/16"-20 to 1.7/8"-12 |
| Surface Treatment | White Zinc-Plated |
| MOQ | 500 pieces |
| Product Attributes | High pressure, high temperature |
| Trading Method | EXW, FOB, CIF |
| Payment | T/T |
Product Description
| Thread | WINNER PART NO. | ||
| PART NO. | 1 | 2 | |
| A6GA-07-02 | 7/16"-20 | R1/8"-28 | 1JT4-04-02SP |
| A6GA-07-04 | 7/16"-20 | R1/4"-19 | 1JT4-04SP |
| A6GA-07-06 | 7/16"-20 | R3/8"-19 | 1JT4-04-06SP |
| A6GA-08-04 | 1/2"-20 | R1/4"-19 | 1JT4-05-04SP |
| A6GA-08-06 | 1/2"-20 | R3/8"-19 | 1JT4-05-06SP |
| A6GA-09-04 | 9/16"-18 | R1/4"-19 | 1JT4-06-04SP |
| A6GA-09-06 | 9/16"-18 | R3/8"-19 | 1JT4-06SP |
| A6GA-09-08 | 9/16"-18 | R1/2"-14 | 1JT4-06-08SP |
| A6GA-12-06 | 3/4"-16 | R3/8"-19 | 1JT4-08-06SP |
| A6GA-12-08 | 3/4"-16 | R1/2"-14 | 1JT4-08SP |
| A6GA-12-12 | 3/4"-16 | R3/4"-14 | 1JT4-08-12SP |
| A6GA-14-06 | 7/8"-14 | R3/8"-19 | 1JT4-10-06SP |
| A6GA-14-08 | 7/8"-14 | R1/2"-14 | 1JT4-10-08SP |
| A6GA-14-12 | 7/8"-14 | R3/4"-14 | 1JT4-10-12SP |
| A6GA-17-08 | 1.1/16"-12 | R1/2"-14 | 1JT4-12-08SP |
| A6GA-17-12 | 1.1/16"-12 | R3/4"-14 | 1JT4-12SP |
| A6GA-17-16 | 1.1/16"-12 | R1"-11 | 1JT4-12-16SP |
| A6GA-21-12 | 1.5/16"-12 | R3/4"-14 | 1JT4-16-12SP |
| A6GA-21-16 | 1.5/16"-12 | R1"-11 | 1JT4-16SP |
| A6GA-21-20 | 1.5/16"-12 | R1.1/4"-11 | 1JT4-16-20SP |
| A6GA-26-16 | 1.5/8"-12 | R1"-11 | 1JT4-20-16SP |
| A6GA-26-20 | 1.5/8"-12 | R1.1/4"-11 | 1JT4-20SP |
| A6GA-26-24 | 1.5/8"-12 | R1.1/2"-11 | 1JT4-20-24SP |
| A6GA-30-20 | 1.7/8"-12 | R1.1/4"-11 | 1JT4-24-20SP |
| A6GA-30-24 | 1.7/8"-12 | R1.1/2"-11 | 1JT4-24SP |
