Door Skirt Extrusion PVC Plastic Profile Production Line Double Screw Design
Door skirt extrusion line / PVC skirting profile extrusion line / production line
The application of Door skirt extrusion line:
It is mainly used for making PVC window/door/wall profile, PVC ceiling/panel ...for decoration with different profile break-section moulds.
It can also produce Wood+PVC profile, etc. with different screws.
If use single screw extruder, it can also produce other plastic profile, ceiling and panel.
The list of one of Door skirt extrusion line for your reference:
| NO. | Equipment | Qty. |
| 1 | Conical Double Screw Extruder | 1set |
| 2 | Mould | 1 set |
| 3 | Screw Feeder | 1set |
| 4 | Vacuum Forming Table | 1set |
| 5 | Haul-off unit | 1set |
| 6 | Cutter | 1set |
| 7 | Stack | 1set |
| 8 | Spare Parts(free) | 1set |
The working process of Door skirt extrusion line:
Raw material → mixing → feeder → double screw extruder → vacuum calibration table → haul-off unit → cutting machine → stacker.
Other auxiliary equipments are mixer, laminating machine and so on.
Some main paremeter of Door skirt extrusion line:
| Model | MSXC180 | MSXC240 | MSXC300 | MSXC500 |
| Max. width of product(mm) | 180 | 240 | 300 | 500 |
| Extruder model | SJSZ55/110 | SJS65/132 | SJSZ65/132 | SJSZ80/156 |
| Extruder power(kw) | 22 | 30/37 | 37 | 55 |
| Cooling water(m3/h) | 5 | 7 | 7 | 10 |
| Pressure of compressed air(MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
Now Door skirt extrusion line is one of our leading products. Now we' ve obtained rich experience in design and manufacture of the whole extrusion lines.
Our Service:
1) We recommend of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
2) We provide you with free training so that you can use and maintain the machine independently.
3)We will answer customer's questions on technology in time. If needed, we will offer on-site guidance and assistance.

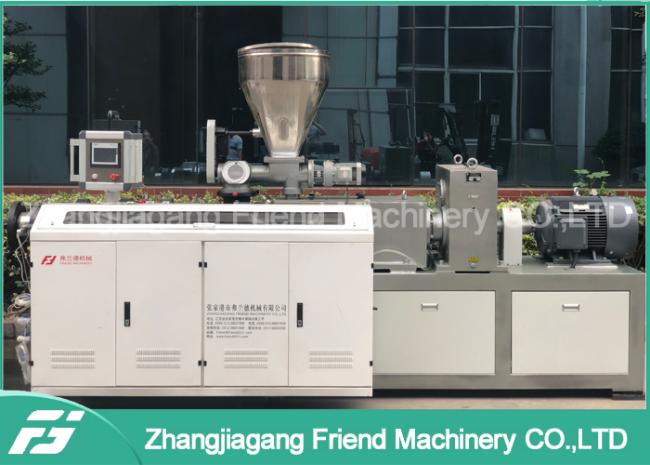

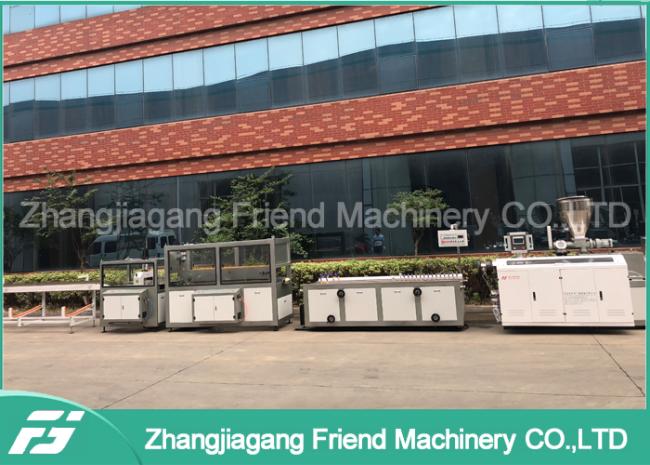

Pictures:
