Co Extrusion 930mm PVC ASA Tile Production Line High Load Resistance
PVC+ASA Compound Decorated Tile Production Line For Glaze Roof Tile Manufacturing
Features
The equipment is composed of a single screw and a conical twin screw. It adopts a specially designed screw and mold design, and uses pvc mixed polymer materials as raw materials. The extrusion performance is more stable, the plasticization performance is good, and the molding capacity is high; the product is used in Villas, workshops, flat-to-slope projects and other purposes; with excellent corrosion resistance, excellent load resistance, super weather resistance, green environmental protection, easy installation and other advantages.
Product Specifications:
The main widths are 840mm, 880mm, 1050mm, 1130mm and 1250mm.
Product Application:
1. It is suitable for sloping roofs with cast-in-situ concrete slabs and purlin system as the structural base.
2. Composite plastic tiles are mainly used in multi-storey or low-rise residential buildings with high decorative requirements, and can also be used in park buildings and corridors in public places. Compared with ordinary plastic tiles, it has better weather resistance, color retention and long service life.
3. Suitable for sloped roofs with a slope of 1:3 (18.5°) to 1:0.58 (60°).
Machine List
| No. | Equipment name | Qty | Remarks |
| 1 | Screw feeder | 1 set | For SJSZ80/156 extruder |
| 2 | SJSZ80/156 conical twin screw extruder | 1 set | For PVC extrusion |
| 3 | SJ50×30 single screw extruder | 1 set | For ABS extrusion |
| 4 | Vacuum suction machine | 1 set | For SJ50×30 extruder |
| 5 | Drying hopper | 1 set | For SJ50×30 extruder |
| 6 | Mold | 1 set | Width 1300mm |
| 7 | Distributor | 1 set | |
| 8 | Corrugated sheet shaping machine | 1 set | Product width 1130mm |
| 9 | Haul-off machine | 1 set | |
| 10 | Cutting machine | 1 set | |
| 11 | Stacker | 1 set |

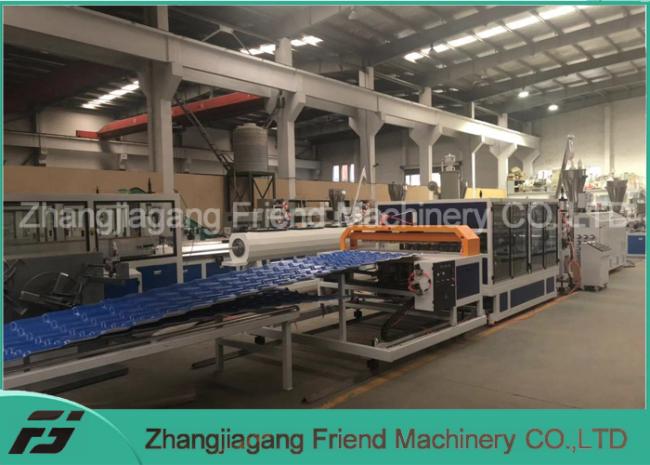

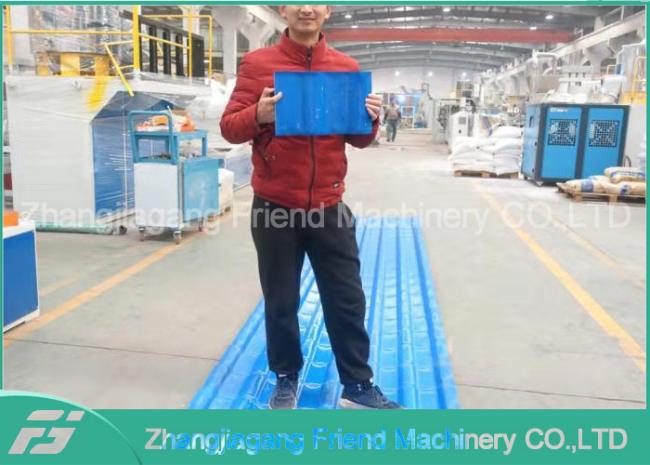

Photos
