400kg/H Conical Twin Screw Plastic Extrusion Line
55kw 320-400kg/h SJSZ80-156 Conical Twin Screw Plastic Extruder Machine
Product Description
Twin screw extruder is mainly composed of feeding system,barrel screw,transmission system,temperature control system,vacuum system and electrical system.
Twin screw extruder is mainly used to produce PVC,WPC material products.PVC poweder resin is used as raw material.
Twin screw extruder can be used to produce PVC pipe,PVC plate,PVC sheet,PVC pelletizing and so on.
Machine Advantages
1.Generally used for processing of PVC powder,it can produce all kinds of PVC pipes,profiles,boards.
2.Self-designed bi-metallic screw and barrel.Good plasticization,high caoacity,energy saving and stable operation.
3.The electric cabinet can be made according to customers' requirement.
4.Mechanical and electrical parts adopt German and Japan parts,durable and stable.
Flow Chart Of Producing
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder → Mixer (mixing the main materials and additives) → SJSZ 80/156 Twin Conical Screws Extruder → Mould → Lamination unit → Three-calender unit → Cooling Bracket → Hual-off Machine → Edge Cutting → Cutter → Stacker .
Main Techinical Parameter
| Model | SJSZ-45 | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
| Diameter of screw(mm) | 45/90 | 51/105 | 55/113 | 65/132 | 80/156 | 92/188 |
| Motor power(kw) | 15 | 18.5 | 22 | 37 | 55 | 110 |
| Capacity(kg/h) | 110 | 125 | 150 | 260 | 400 | 800 |
| Dimension(mm) | 3300*1200*2100 | 3600*1200*2100 | 3600*1200*2100 | 4200*1500*2400 | 4700*1500*2400 | 6000*1600*2500 |

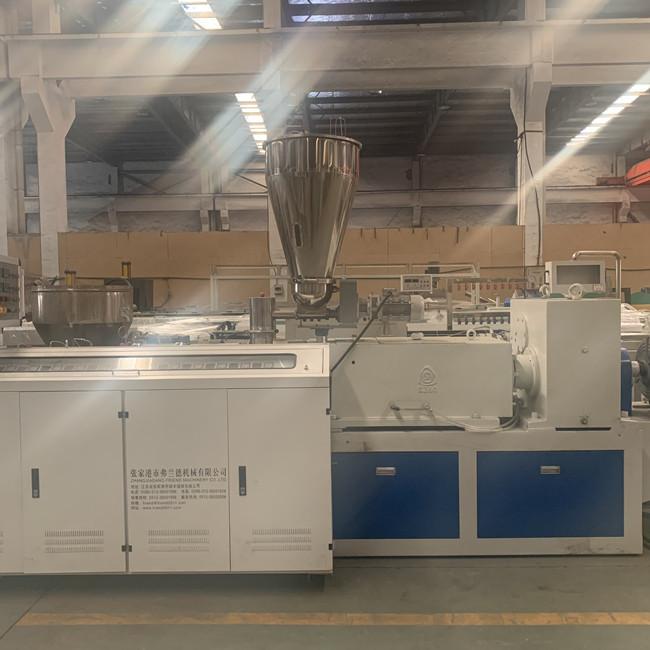

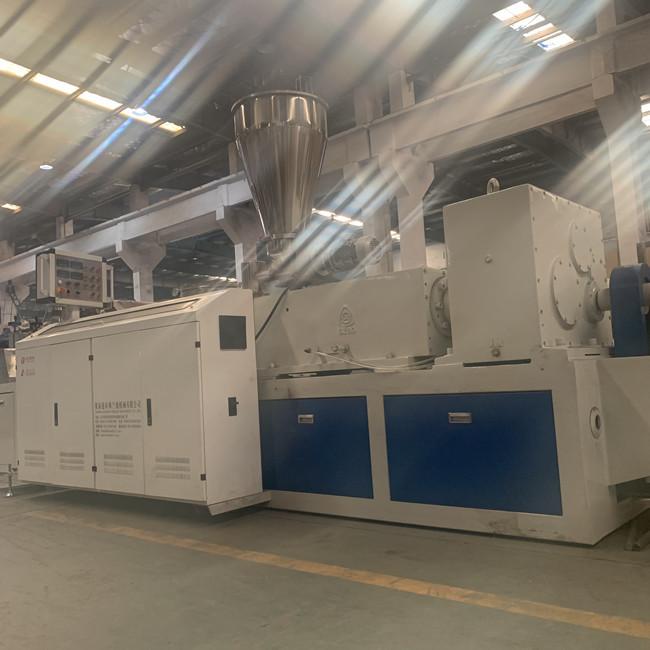

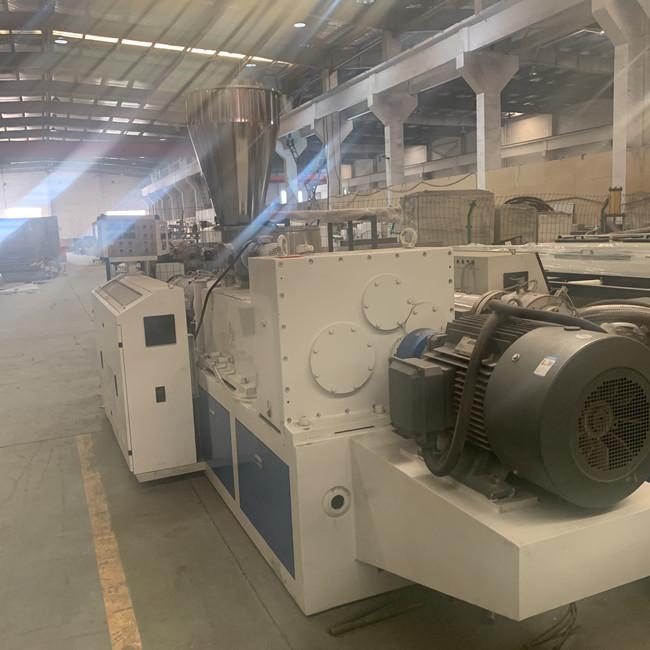

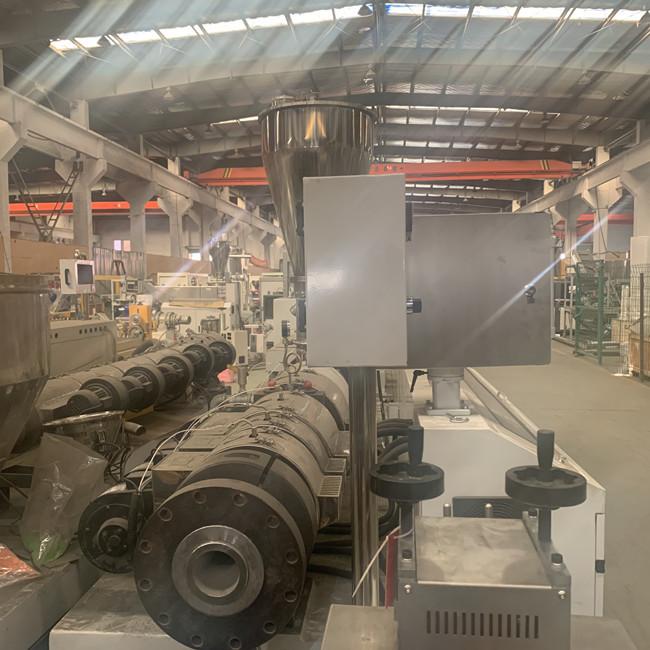

More Pictures
