300/600 Heating And Cold Mixing PVC Resin Hot Steel Plastic Mixer Machine
300/600 Heating And Cold Mixing PVC Resin Hot Stainless Steel Plastic Mixer Machine
Application
PVC mixer is used to mix PVC powder, CaCO3 and other additives. The equipment is widely used in the production of PVC pipes and profiles.
PVC mixer is composed of high-speed mixer (hot mixer), cooling mixer and control cabinet.
We use 8mm stainless steel SUS304 for inner wall construction. This will ensure that the mixer can be used for a long time under high friction conditions.
The mixing blade passed the static and dynamic balance test. The spindle adopts fine sealing to prevent material leakage.
If you need PVC mixer, please tell us your expected output per hour, and we will recommend the appropriate model for you.
Good quality, good price and reliable performance. Sunrise machinery wants to be your supplier of plastic machinery.
Features
*Function: for mixing and drying.
*Applicable materials: thermoplastic powder or particle, chemical material, liquid, rubber, etc.
*Unloading mode: pneumatic unloading
*Electronic compound teaching
*Power brand: Siemens
*Contractor: Siemens
*Switch: shineider
*Temperature control instrument: RKC
*Bearing assembly: HRB
*Inverter brand: ABB
*Motor brand: Siemens Beide
Details
Srl-z series plastic PVC cold and hot mixer is suitable for mixing, coloring and drying of various resins, such as polyethylene, polypropylene, polyvinyl chloride, polypropylene, polyvinyl chloride, etc.
Plastic PVC cold and hot compound mixer integrates hot mixer and cold mixer. After heating, the material will enter the cooler mixer for automatic cooling and discharge the remaining gas to avoid caking. The machine can run automatically by setting the time or temperature.
Plastic PVC cold and hot compound mixer is developed by introducing and absorbing foreign advanced technology. PLC control, high degree of automation, good mixing effect, complete functions, compact structure and beautiful appearance. It is an ideal equipment for plastic mixing.
The pot cover adopts two-layer sealing, and the cooler pot cover adopts arch cover, which can avoid deformation, has contact structure and good performance.
Main Technical Parameters
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective volume(L) | 65/130 | 150/320 | 200/360 | 375/650 | 600/1024 |
| Rotating speed(rpm) | 650/1300-180 | 475/950-87 | 475/950-87 | 430/860-60 | 357/714-50 |
| Mixing time(min) | 8-10 | 8-10 | 8-12 | 8-10 | 8-12 |
| Motor power(kw) | 14/22-7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 2500*2000*2200 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 6230*4230*4480 |
| Weight(kg) | 2500 | 3600 | 4500 | 5800 | 8300 |

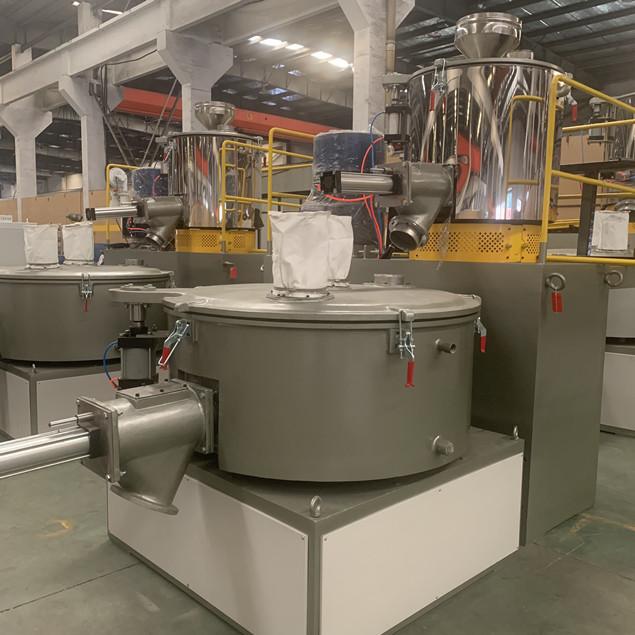

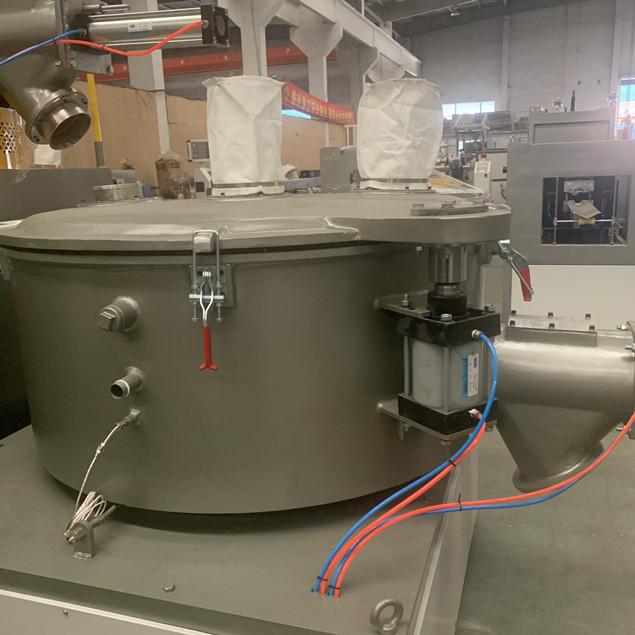

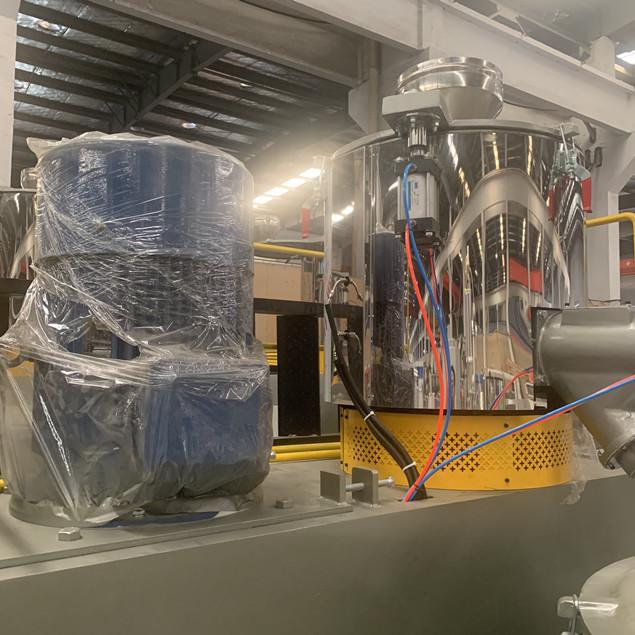

Product Pictures
