China WAGO 5Pin Gray Assembly Termial Bloack Engine Wiring Harness For Industrial elevator Add CABLE / MATIEL PA for sale

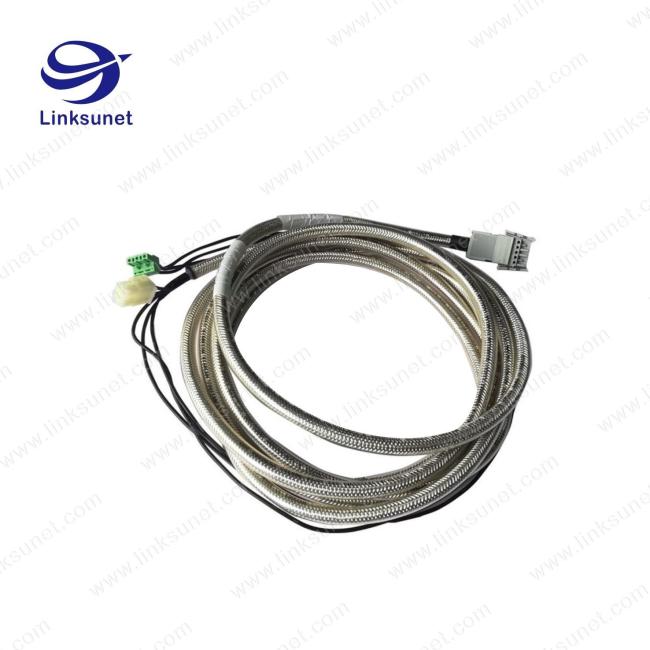

WAGO 5Pin Gray Assembly Termial Bloack Engine Wiring Harness For Industrial elevator Add CABLE / MATIEL PA

Price Negotiable

Price: Negotiable

MOQ: 200PCS

Delivery Time: Negotiable

Brand: WAGO

Product Description

TYCO/AMP/TE Universal MATE-N-LOK Series Engine Wiring Harness For Industrial driving / MATIEL PA

Item no .	231 - 123 / 037 - 000	GTIN / EAN	4044918343169
Content	1 piece	Order unit	piece
Order quantity	piece	Increase in order quantity	( 10 , 20 , 30 , 40 , . . . )
Customer item no.		Customs Tariff no .	85366990990
Customs duty for the country of origin	DE	Available	-
List price	On request	Net price	On request
Availability	On request

Description

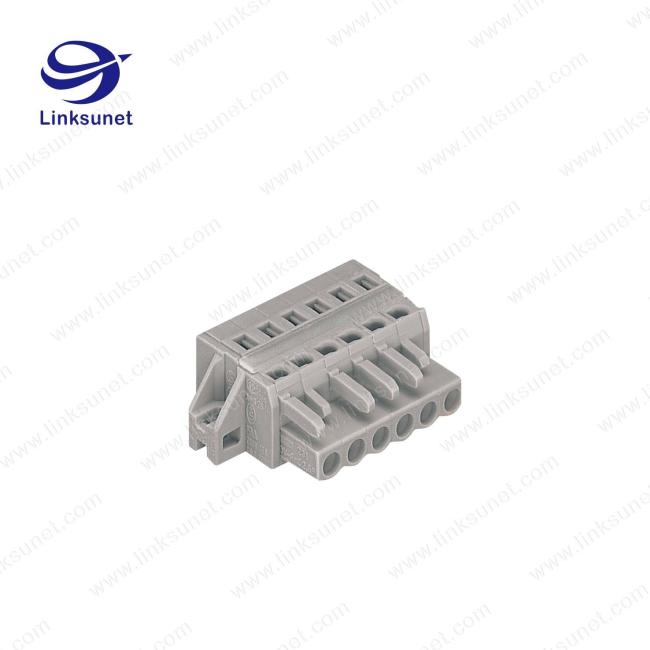

Female connector ; with locking levers ; 23 - pole ; Pin spacing 5 mm / 0.197 in ; codable ; with 2 locking latches ; with coding finger ; with latch
Remarks
Item description : Universal connection for all conductor types Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation Integrated test ports Coding option available

Item properties
Miscellaneous
Name	Value	Unit
Packaging type	BOX
Ratings per	IEC/EN 60664 - 1
Rated voltage ( III / 3 ) [ V ]	320	V
Rated impulse voltage ( III / 3 ) [ kV ]	4	kV
Rated voltage ( III / 2 ) [ V ]	320	V
Rated impulse voltage ( III / 2 ) [ kV ]	4	kV
Rated voltage ( II / 2 ) [ V ]	630	V
Rated impulse voltage ( II / 2 ) [ kV ]	4	kV
Rated current [ A ]	16	A
Legend ( ratings )	( III / 2 ) ≙Overvoltage category III / Pollution degree 2
Approvals per	UL 1059
Rated voltage UL ( Use Group B ) [ V ]	300	V
Rated current UL ( Use Group B ) [ A ]	15	A
Rated voltage UL ( Use Group D ) [ V ]	300	V
Rated current UL ( Use Group D ) [ A ]	10	A
Rated voltage CSA ( Use Group B ) [ V ]	300	V
Rated current CSA ( Use Group B ) [ A ]	15	A
Rated voltage CSA ( Use Group D ) [ V ]	300	V
Rated current CSA ( Use Group D ) [ A ]	10	A
No . of poles	23
Total number of connection points	23
Total number of potentials	23
Number of connection types	1
Number of levels	1
Connection technology	CAGE CLAMP ®
Number of connection points ( connection type )	1
Actuation type	Operating tool
Solid conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 1.5 mm² / …
Fine-stranded conductor with ferrule without plastic collar	0.25 … 2.5 mm² / …
Strip length	8 … 9 mm / 0.31 … 0.35 Inch
Pin spacing	5 mm ( 0.197 in )
Width	131.6 mm / 5.181 Inch
Height	14.3 mm / 0.563 Inch
Depth	29.6 mm / 1.165 Inch
Contact type ( pluggable connector )	Female connector / socket
Connector connection type	for conductors
Mismating protection	nein
Locking of plug - in connection	locking lever
Color	gray
Material group	I
Insulating material	Polyamide 66 ( PA 66 )
Flammability class per UL94	V0
Clamping spring material	Chrome nickel spring steel ( CrNi )
Contact material	Copper alloy
Contact plating	tin - plated
Fire load [ MJ ]	0.605	MJ
Weight [ g ]	41.687	g
Limit temperature range	- 60 … 85 °C
