Recycled Plastic 3D Printer Filament Making Machine , 3D Filament Making Machine
Recycled Plastic 3D Printer Filament Making Machine , 3D Filament Making Machine
Single screw extruder -GS-35/28. The Screw designed by American technology, with bigger L/D and compression ratio, ensures high speed and stable extrusion, provides excellent plasticity. Extruder with “ABB” A/C frequency motor and high class “ABB” inverter, which provide accuracy and stable output control, Japan “OMRON” PID intelligent temperature controller, accuracy of temperature control: ±1°C.
The description of Recycled Plastic 3D Printer Filament Making Machine , 3D Filament Making Machine features:
|
GSD-45 single screw extruder
|
|||
|
Screw part
|
Screw diameter: ￠45mm
Screw, barrel material: 38CrMoAlA nitriding treatment
|
||
|
Barrel part
|
Heating Coil: Stainless steel cover
Fan speed: 2500r/min
Cooling zone: 4
The way of cooling: air cooling |
||
|
Drive part
|
Extruder power: 7.5KW, Brand: Siemens bade or WA Gearbox type : 133 Speed ratio: 16:1 Gearbox: hard-toothed gearbox |
||
|
Electrical department
|
Temperature-controlled meter: Omron Connector: Taiwan brand Electronic components: Schneider Control panel: PLC |
||
|
Others
|
Control system: PLC, feedback with data
PLC brand: Siemens, 10 inchElectrical cabinet: cooling fan,exhaust system |
||

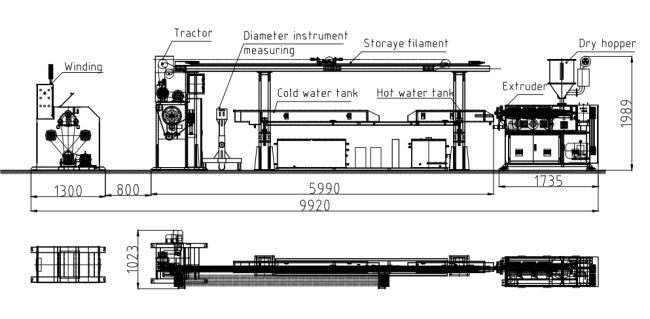

Content of Recycled Plastic 3D Printer Filament Making Machine , 3D Filament Making Machine:
1. Drying Hopper and Vacuum loader 2. GSD-50 single screw extruder
3. Extruder mould 4. Heating water tank
5. Cooling water tank 6. Bidirectional Infra Red ray diameter Gauging device / Laser gauge
7. Traction Machine / Haul Off machine 8. Double station Automatic Winding machine
9. Horizontal Wire storage support 10. Color mixing machine
11. vacuum package machine(choose or not according to yourself)
