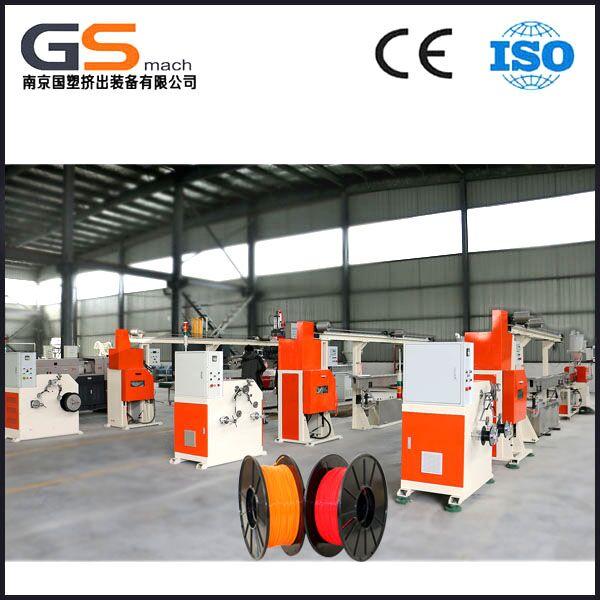

High Capacity 3D Printer Filament Extruder Full Automatically Running System
+/-0.03mm tolerance filament Extrusion machine for 3D printer with high capacity
Introduction of +/-0.03mm tolerance filament Extrusion machine for 3D printer
with high capacity,3D Filament Extruder Machine uses the PLC and PID control system, precise cooling water temperature control system, laser measuring system and efficient loading winding system etc.. The program will automatically control the diameter according to the data from the laser, which will make sure that the tolerance is less than 0.03mm.
With the rise of 3D printing technology,3D printer has been used by designers, engineers and scientists to produce the disposable mechanical products and model, and it is already widely used in health care, education, toys, building, automobile, electronics, and anime field.
3D Printing Filament Extruder/ Extruding Machine is mainly used to produce high quality ABS/PLA for all brands of 3D printers. This 3D Printing Filament Extruder/ Extruding Machine has high output and and performance. It can produce ABS/PLA filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within 0.03mm.
3D Printer Filaments Extrusion Equipment Series
|
Model |
Power |
Diameter |
Capacity |
Tolerance |
Material |
|
Lab Machine |
200 W | 1.75mm/3mm | 0.5～1kg/h | +0.05mm | PLA ABS HIPS PA,PET |
| GSD-35 | 4 KW | 1.75mm/3mm | 10-20kg/h | +0.03mm | PLA ABS HIPS PA PET |
| GSD-45 | 7.5 KW | 1.75mm/3mm | 30-50kg/h | +0.03mm | PLA ABS HIPS PA PET |
| GSD-65 | 15 KW | 1.75mm/3mm | 60-80kg/h | +0.03mm | PLA ABS HIPS PA PET |
------Outwards appearance requirement
Internal and external surface of rod/wire should be smooth and single color, should be uniform wall thickness,no manufacturing defect and air bubble, shrinkage, crack, non-uniformity etc.
