PLC Control 3D Plastic Filament Extruder Machine , Screw Extruder 3d Printer
PLC control easy operation PLA ABS 3d printer filament making extrusion machine
Information of our PLC control easy operation PLA ABS 3d printer filament making extrusion machine
Application of ABS/PLA Plastic Filament Extruder Machine :
3D abs,pla filament & typing Strips mainly used for 3D Printer.
The main products of the ABS,PLA Filament Extruder: 1.75mm ABS/ PLA 3D Filament & Typing Strips.
Work Flow of the ABS/PLA Plastic Filament Extruder Machine :
25KG Hopper dryer→ 35 Single Screw Extruder → Die →Stainless Steel Warm Water Tank→Stainless Steel Water Cooling tank →Laser guage→Haul-off Machine→Horizontal Storage rack→Double Station Winder
PLC control easy operation PLA ABS 3d printer filament making extrusion machine is mainly used to produce high quality ABS/PLA for all brands of 3D printers. This 3D Printer Filament Extruder/ Extruding Machine has high output and and performance. It can produce ABS/PLA filament with diameter of 1.75 and 3mm. We use laser gauge in the 3D Printer Plastic Filament extruding line to measure the diameter and control the tolerance within 0.03mm.
Main Technical Standards of PLC control easy operation PLA ABS 3d printer filament making extrusion machine:
| Model No. GS35 | |
| Screw Diameter | 35 mm |
| Ratio of L/D | 25:1 |
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Depth of Nitrogen Treatment | 0.4-0.7 mm |
| Screw Straightness | <0.015 mm |
| Main Motor Power | 5.5 KW |
| Heating Method | Casting Aluminum Heater |
| Heating Zones | 4 Periods |
| Heating Power: | 2KW*4=8KW |
| Cooling Method: | Forced Air Cooling |
| Fan Motor Power | 60W*4=0.24KW |
| Gear Box Reducer | Hard tooth face gear box reducer |
| Maximum Capacity | 8-15Kg/h |
| Length | 1800mm |
| Width | 950mm |
| Height | 1350mm |
| 2,Main Parts: | |
| Name: | Manufacturer: |
| Main Motor | Siemens AC Motor( 460V 60HZ) |

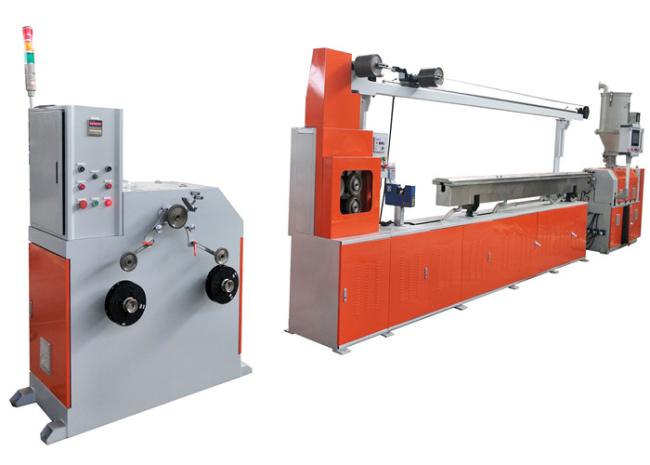

The picture of PLC control easy operation PLA ABS 3d printer filament making extrusion machine:
