45-75KW TPR Granules Two Stage Extruder With Underwater Pelletizer Systems
45-75KW TPR Granules Two Stage Extruder With Underwater Pelletizer Systems has excellent mixing performence, good self-cleaning performance and flexible modular configuration characteristics which make them suitable for processing different types of materials, it has been abroad applied to PVC cable material, recycled PVC material, XLPE material, low smoke free halogen cables, shield material, chemical crosslinking cable material, shoe sole material, wood plastic, a wide range of uses.
45-75KW TPR Granules Two Stage Extruder With Underwater Pelletizer Systems Models:
Technical data sheet:
| Series | Model |
mm Screw Diameter |
rpm Screw speed |
L/D |
kW Max. Motor |
kg/hr Output |
||||
|
Tandem Series |
GS50/120R |
51.6/120 | 600/93 | 40/10 | 55/30 | 150~250 | ||||
|
GS65/150R |
62.6/150 | 90/45 | 300~500 | |||||||
|
GS75/180R |
71.4/180 | 132/55 | 500~700 | |||||||
|
GS95/ 200R |
93/200 | 250/75 | 1000~1600 | |||||||
|
GS52/50R |
51.6/150 | 75/45 | 200~350 | |||||||
|
GS65 180R |
62.6/180 | 132/55 | 400~600 | |||||||
|
GS75/ 200R |
71.4/200 | 185/75 | 700~1000 | |||||||
|
GS95/ 220R |
93/220 | 355/95 |
1500~2000 |
|||||||
45-75KW TPR Granules Two Stage Extruder With Underwater Pelletizer Systems can be followed with five main kinds of pelletizing system:
1.Air cooling die-face hot cutting system
2. Water /fan cooling strand pelletizing system
3. Water ring hot- face cutting system
4. under-water pellet system
5. Eccentric water-spray pelletizing system
This time we mainly introduce two stage extrusion machine with under-water pelleting system.This type of configuration for machines are mainly for EVA , TPU/TPR/TPE, PET, PES,ABS,PA etc.

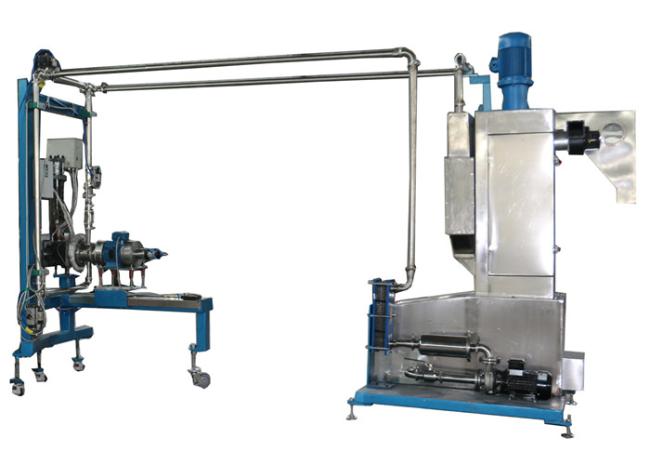

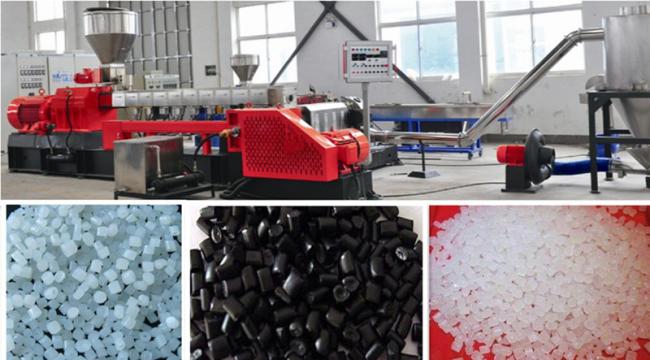

45-75KW TPR Granules Two Stage Extruder With Underwater Pelletizer Systems detailed pictures:
