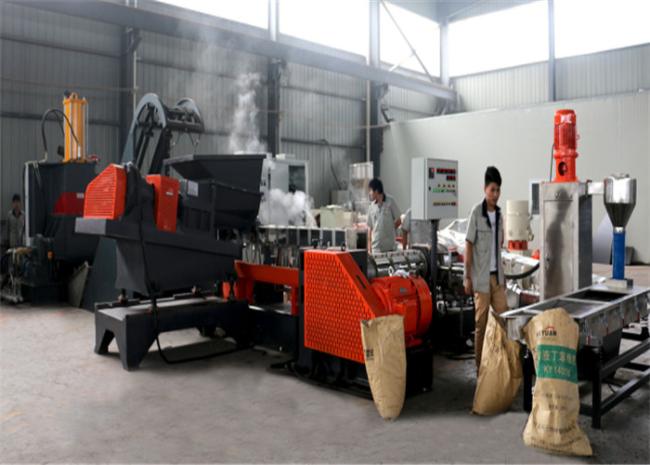

Delta Inverter Two Stage Extruder Plastic Pelletizing Line With 500-1000kg/H Capacity
Delta Inverter Two stage Extruder Pelletizing Line for PP PE PVC EVA materials with 500-1000kg/h capacity
Introduction:
1. Usually the first compounding extruder runs at a high speed for good mixing and high output capacity.
2. The second extruder must be a larger diameter single screw one that can run at lower screw speed .
3. The lower screw can avoid over –heating by internal cooling system and strong heat exchange ability .
4. The functional separation allows operator to more flexibly control the expectable material mixing process and temperature.
5. Equipment technology parameter can be adjusted according to material and customer's requirements.
Paraments
| Model | D (mm) | L/D | N (r/min) | P (KW) | Q (kg/h) | |
| GS-16A | 15.6 | 28~40 | 600 | 1.1/2.2 | 2~10 | |
| GS-20A | 21.7 | 28~40 | 600 | 3/4 | 3~15 | |
| GS-36 | A | 35.6 | 28~52 | 500 | 11/15 | 20~60 |
| B | 35.6 | 28~60 | 500/600 | 18.5/22 | 20~100 | |
| GS-50 | A | 50.5 | 28~60 | 500 | 45 / 55 / 75 | 80~150 |
| B | 50.5 | 28~60 | 400/500/600 | 45/55/75 | 120~280 | |
| GS-52B | 51.4 | 28~60 | 400/500/600 | 45/55/75 | 120~280 | |
| GS-65 | A | 62.4 | 28~60 | 500 / 600 | 55 / 75 / 90 | 150~380 |
| B | 62.4 | 28~60 | 400/500/600 | 90/110 | 200~500 | |
| GS-75 | A | 71 | 28~60 | 500 / 600 | 90 /110 /132 | 300~550 |
| B | 71 | 28~60 | 400/500/600 | 110/132/160 | 300~800 | |
| GS-85B | 81 | 28~60 | 400/500/600/ | 160/220/280 | 480~1000 | |
| GS-95B | 93 | 28~60 | 400 / 500/600 | 250 /280/ 315 |
750~1400 |
|
