Kneader Two Stage Plastic Pellet Extruder Single / Twin Screw With LSFH Material
Kneader Two Stage Screw extruder plastic pellet extrudr with LSFH material

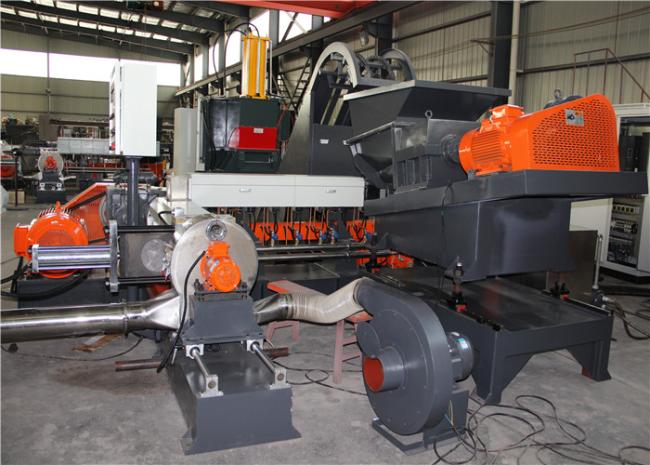

Kneader Machine Charactor:
This equipment prossesses temperature and time control system for easy but accurate operation and best decentralization.
Tilt-able mixing chamber and mechanical shaft sealing design for easy cleaning and color changing.
Pressure sealed mixing chamber to assure the quality of mixed material and also prevent environment pollution.
The mixing chamber is made of high grade alloy steel and the work surface is hard chrome coated for suppler anti-abrasion.
Pelletizing craft:

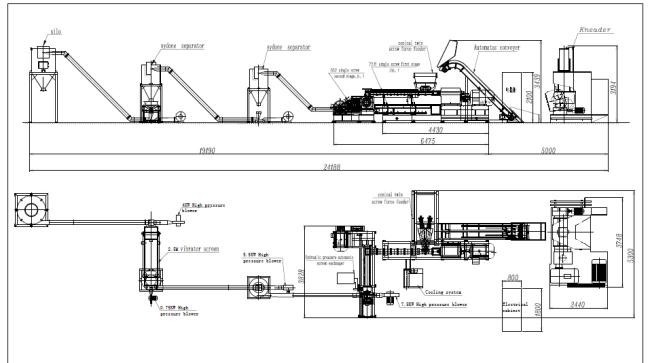

Kneader---automatic conveyor----Conical twin screw force feeder extruder---twin screw extruder---single screw extruder---Hydraulic Screen Changer---Wind cooling die face hot cutting--- First cyclone separator----Second cyclone separator--- vibrator screen --Silo
Machine Type:
|
Model Parameter |
Kneader | Kneader Motor Power | L/D | Screw Dia. | Single Screw Motor Power |
| GSD-100 | 35L | 55kw | 12-22:1 | 100mm | 37-55kw |
| GSD-120 | 55L-75L | 75-110kw | 12-22:1 | 120mm | 55-75kw |
| GSD-150 | 110L | 160kw | 12-22:1 | 150mm | 75-110kw |
| GSD-180 | 150L | 220kw | 12-22:1 | 180mm | 90-132kw |
