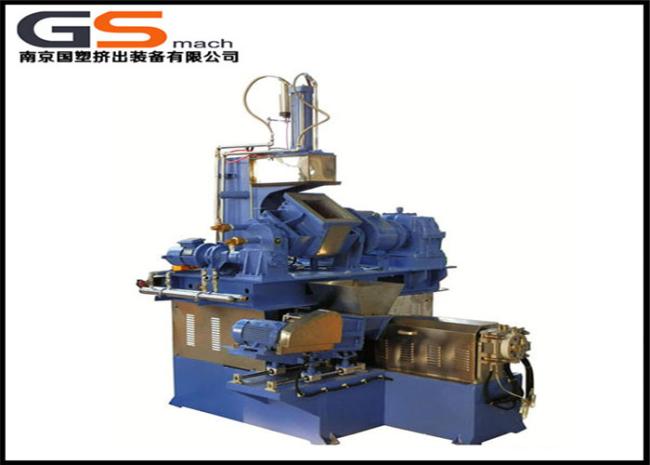

Laboratory Kneader Plastic Pellet Extruder Single Screw With Testing Material
laboratory Kneader single Screw extruder plastic pellet extrudr with testing material
Machine Application:
Take up a little space,easier operation,lower maintenance rate.It is
commonly used in factory,lab,developed research,school etc.For
example:Shanghai University, Zhengzhou University,Wenzhou
University etc which all have our kneader lab machine and very
popular with them.
Characteristics:
Barrels:
1, Euro-style rectangle barrel, reflux refrigeration channel is optimized and disposed, which makes temperature difference in C areas smaller.
2, Innovated design of heater tightened style insures high efficiency of heat transfer and high longevity of heater.
3, Barrels are made of high quality nitrided steel, with bimetallic liner.
Screw elements and kneading blocks:
Accurately designed , precise processed and agile combination with interchangeablity , can fulfill efficient self-cleaning, transmission, compounding , pressure-forming, etc. The screw made of high tool steel 38CrMoAlA, or W6Mo5Cr4V2 by special heat-treatment, possessing high corrosion-resistant and high wear-resistant functions.
Feeder system:
Metering feeders are equipped with sinlge screw, twin screw, hollow screw, forced-feeding, side-feeding, liquid- adding system etc. to meet different requirements of feeding, such as powder, pellets, lump material and liquid material.
Machine Type:
|
Model Parameter |
Kneader | Kneader Motor Power | L/D | Screw Dia. | Single Screw Motor Power |
| GSD-100 | 35L | 55kw | 12-22:1 | 100mm | 37-55kw |
| GSD-120 | 55L-75L | 75-110kw | 12-22:1 | 120mm | 55-75kw |
| GSD-150 | 110L | 160kw | 12-22:1 | 150mm | 75-110kw |
| GSD-180 | 150L | 220kw | 12-22:1 | 180mm | 90-132kw |
